5.2. Maintenance every 8 - 15
operating hours
5.2.1. Check engine oil level
When checking the oil level, the engine should
be standing level, and must not be running.
– Remove any dirt in the dipstick area.
25

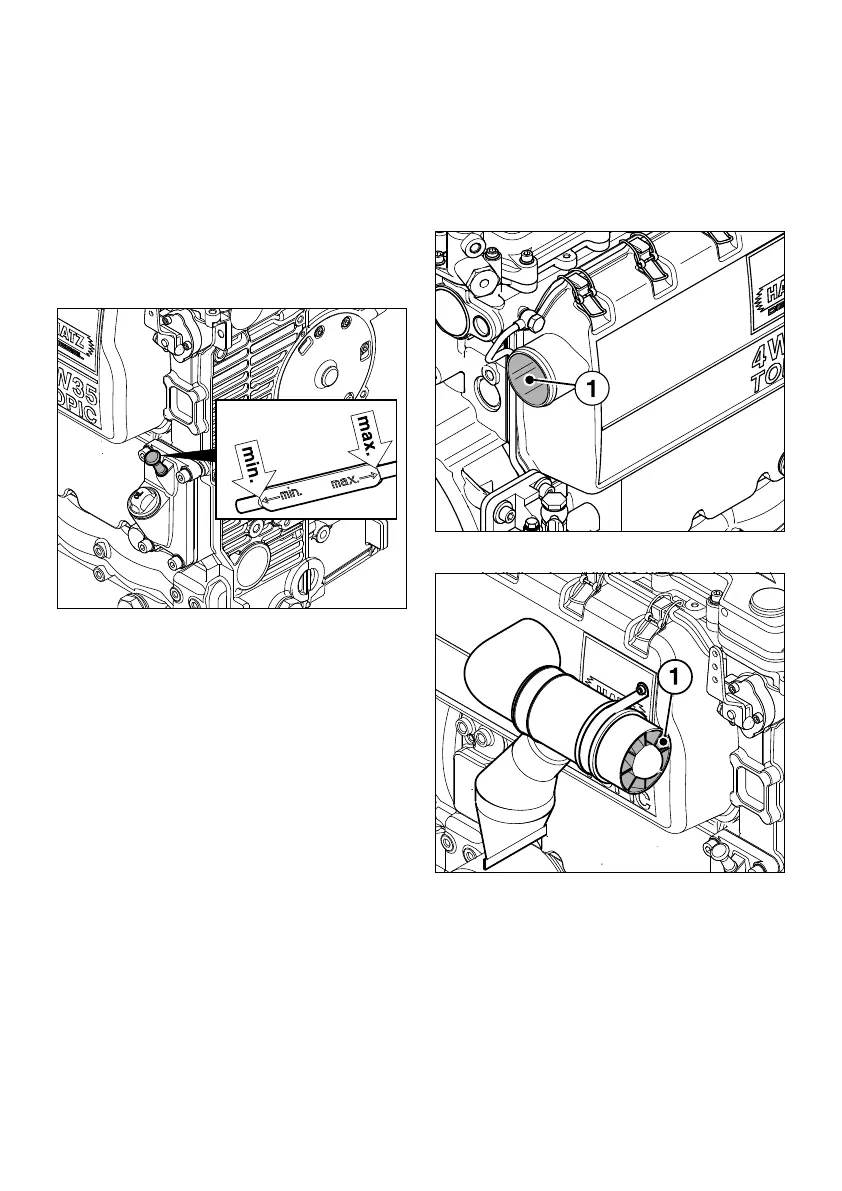

– For oil level inspection, remove the dipstick
and wipe it dry using a lint-free, clean piece of
cloth; then insert it to its stop and pull it out
again.
– Check the dipstick oil level and, if necessary,
add oil to the max. mark, Chapter 4.1.1.
Attention !
If the engine is operated while the oil level is
below the min. mark, it will be damaged.
5.2.2. Check combustion air intake area
Severe contamination is a sign that there are
large amounts of dust in the atmosphere and
the air cleaner maintenance intervals should be
reduced, Chapter. 5.4.3.
26
27
– Check air intake port 1 – depending on
version – for coarse contamination, such as
leaves, lots of dust etc., if necessary, clean
(Fig. 26 and 27).
24
