Hatz 2W35 - 2 Description of the Engine

2. Description of the engine 2 W 35 • 3 W 35 • 4 W 35
6
M
O
T
O
R
E
N
F
A
B
R
I
K
H
A
T
Z
K
G
D
-
9
4
0
9
9
R
U
H
S
T
O
R
F
M
A
D
E
I
N
G
E
R
M
A
N
Y
11
17
16
15
13
12
1
2
3
4
5
6
7
8
10
9
14

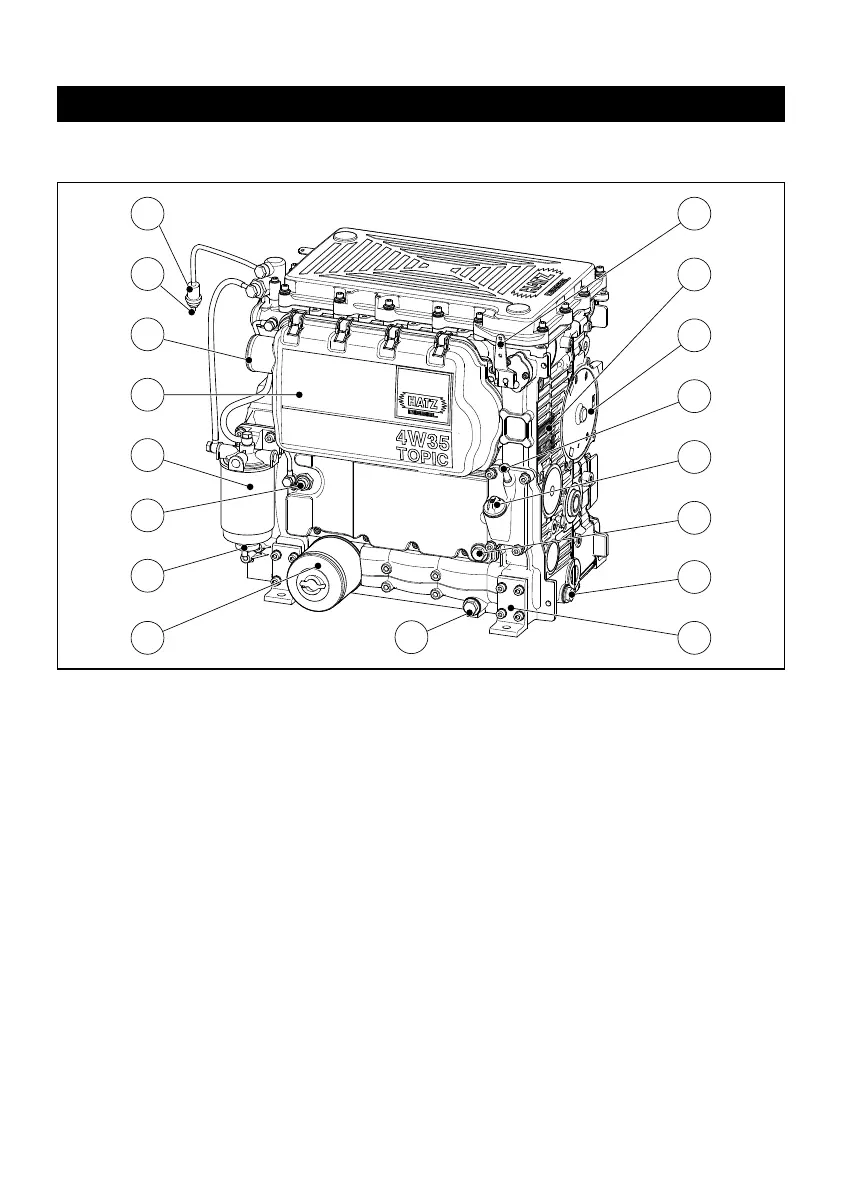

1 Operator’s side
1 Speed adjustment lever
2 Type plate
3 Coolant pump
4 Oil dipstick
5 Oil filler cap
6 Drain plug for coolant
7 Oil drain plug (governor side)
8 Engine mountings (optional equipment)
9 Oil drain plug (operator’s side)
10 Engine oil filter
11 Water drain plug on fuel filter
12 Oil pressure switch
13 Fuel filter with water trap
14 Dry-type air cleaner
15 Combustion air intake port
16 Fuel suction line connector
17 Fuel pre-filter
