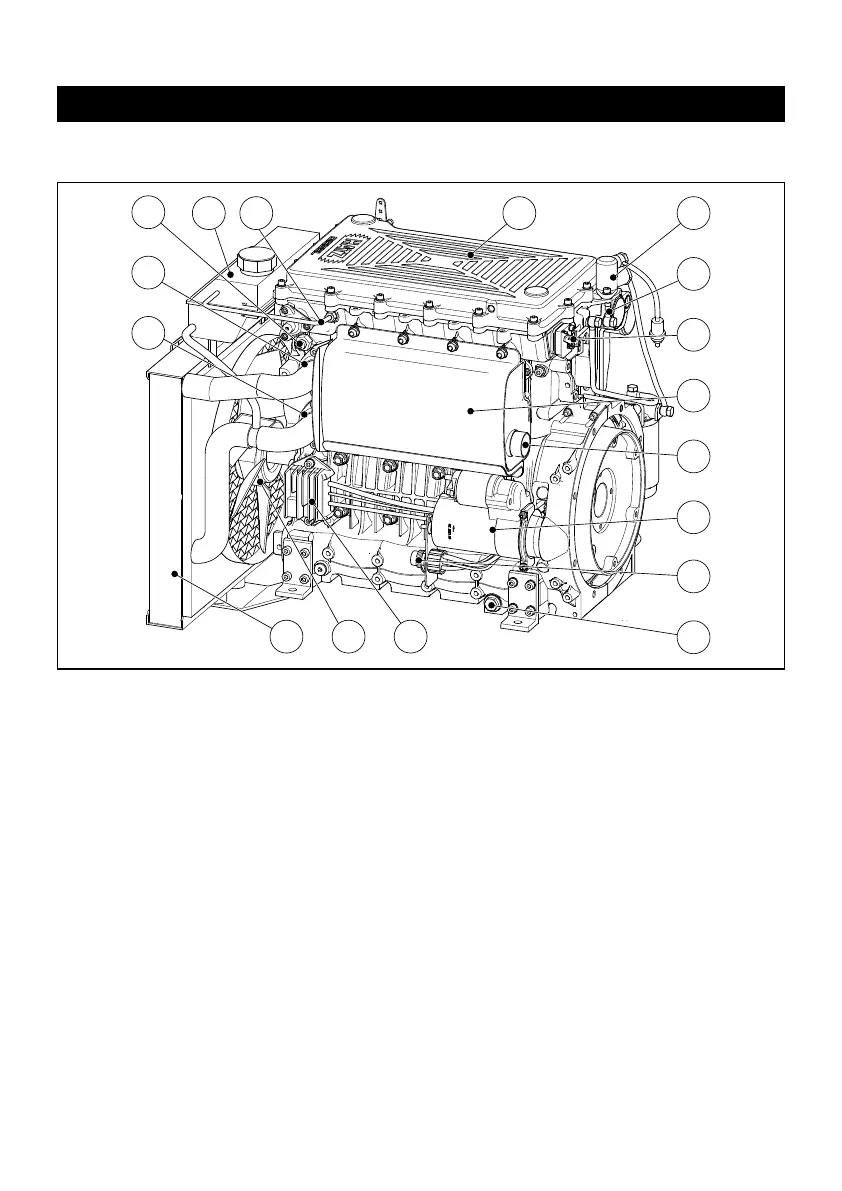

Description of the engine 2 W 35 • 3 W 35 • 4 W 35
7
1 Fuel feed pump
2 Fuel return line
3 Stop lever (optional equipment)
4 Exhaust silencer
5 Exhaust gas outlet
6 Electrical starter
7 Central plug for electrical system
8 Oil drain plug (exhaust side)
9 Voltage regulator
10 Fan (optional equipment)
11 Radiator (optional equipment)
12 Coolant supply to engine
13 Coolant return to radiator and thermostat
14 Temperature switch
15 Coolant expansion tank (optional
equipment)
16 Vent line to expansion tank
17 Cylinder head cover
1
2
3
4
5
6
7
8
11
14
13
12
9
15 16
10
17
2 Exhaust side
