Description of the engine 4 W 35 T (turbocharged engine)
8
M
O
T
O
R
E
N
F
A
B
R
I
K
H
A
T
Z
K
G
D
-
9
4
0
9
9
R
U
H
S
T
O
R
F
M
A
D
E
I
N
G
E
R
M
A
N
Y
1
2
3
4
5
6
7
8
10
15
14
13
9
11
17
19
12
16
18

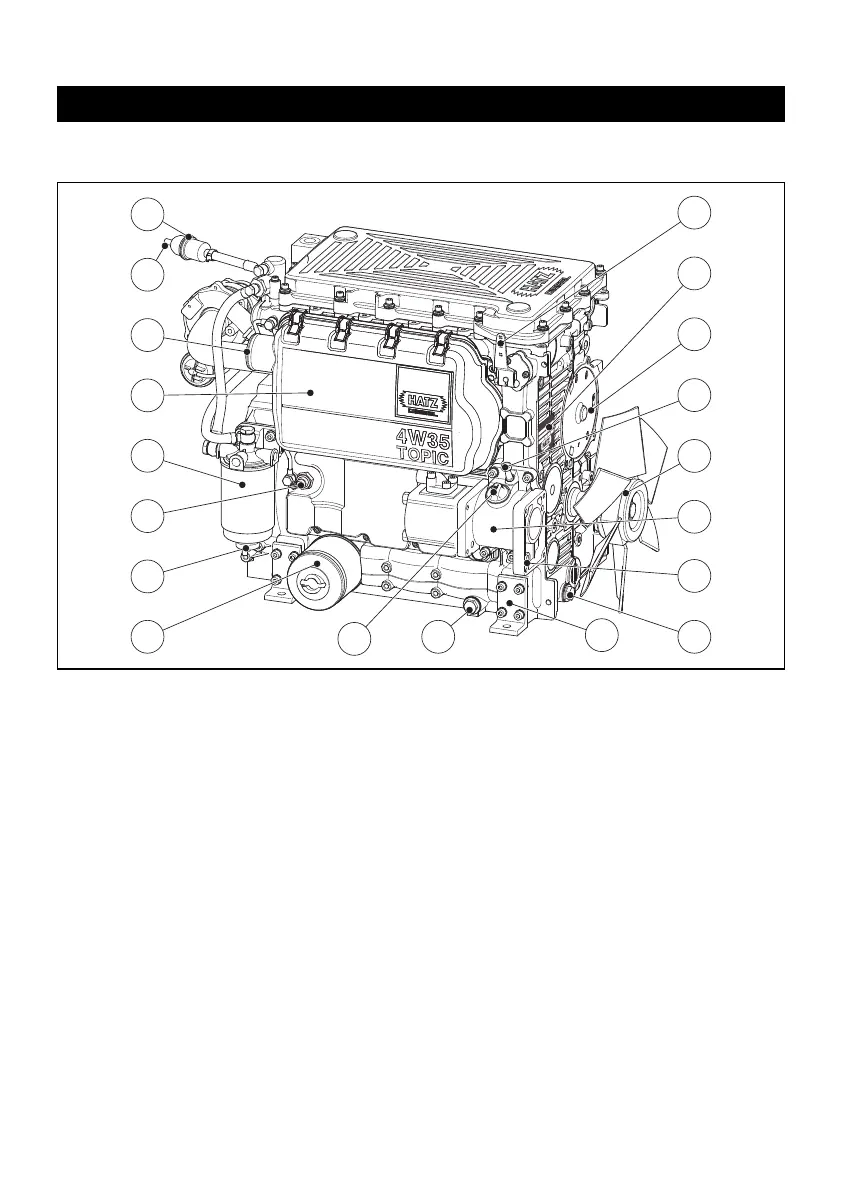

3 Operator’s side
1 Speed adjustment lever
2 Type plate
3 Coolant pump
4 Oil dipstick
5 Fan (optional equipment)
6 Hydraulic pump drive (optional equipment)
7 Flange for additional hydraulic pump
(optional equipment)
8 Oil drain plug (governor side)
9 Engine mountings (optional equipment)
10 Oil drain plug (operator’s side)
11 Oil filler cap
12 Engine oil filter
13 Water drain plug on fuel filter
14 Oil pressure switch
15 Fuel filter with water trap
16 Dry-type air cleaner
17 Combustion air intake port
18 Fuel suction line connector
19 Fuel pre-filter
