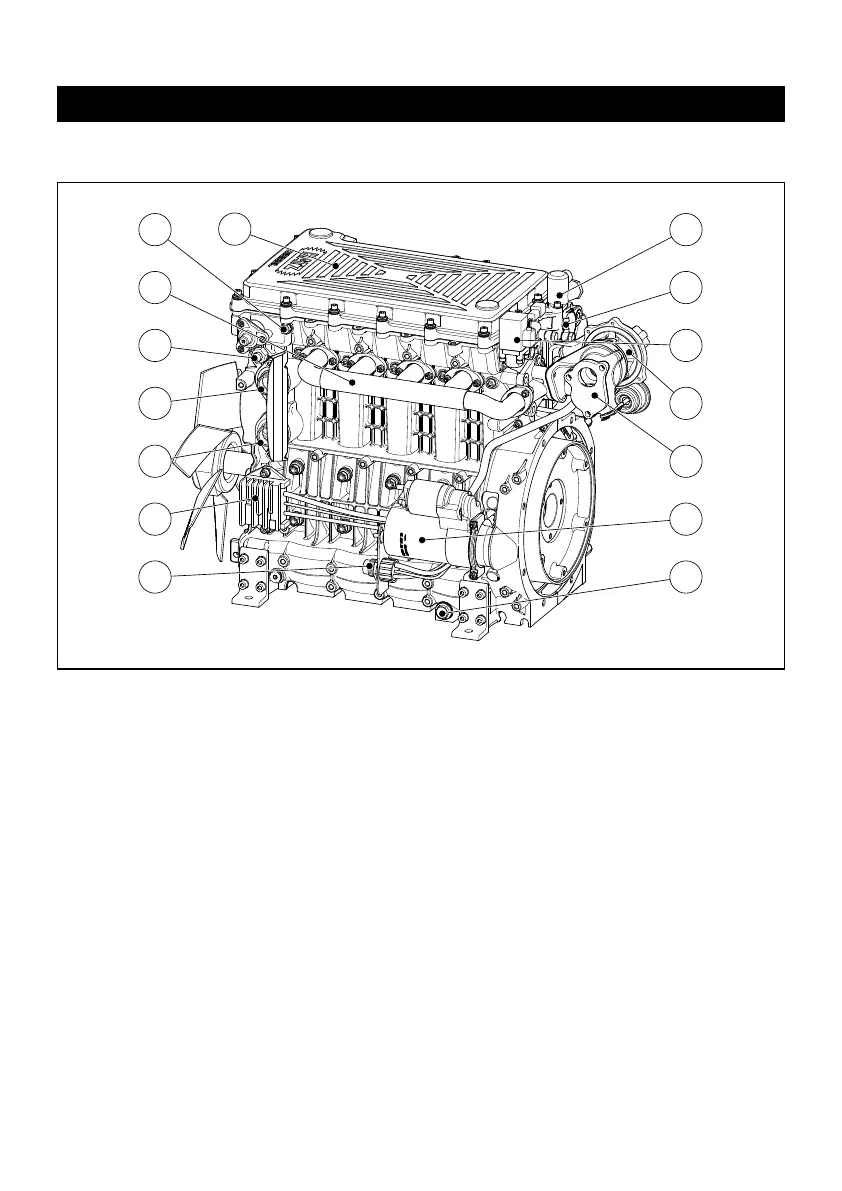

Description of the engine 4 W 35 T (turbocharged engine)
1 Fuel feed pump
2 Fuel return line
3 Stop lever or stop solenoid
(optional equipment)
4 Turbocharger
5 Exhaust flange
6 Electric starter
7 Oil drain plug (exhaust side)
8 Central plug for electrical system
9 Voltage regulator
10 Coolant supply to engine
11 Coolant return to radiator and thermostat
12 Temperature switch
13 Exhaust manifold
14 Connector for vent line to expansion tank
(coolant)
15 Cylinder head cover
3
4
5
6
7
1
2
14
12
11
10
9
8
15
13
4 Exhaust side
