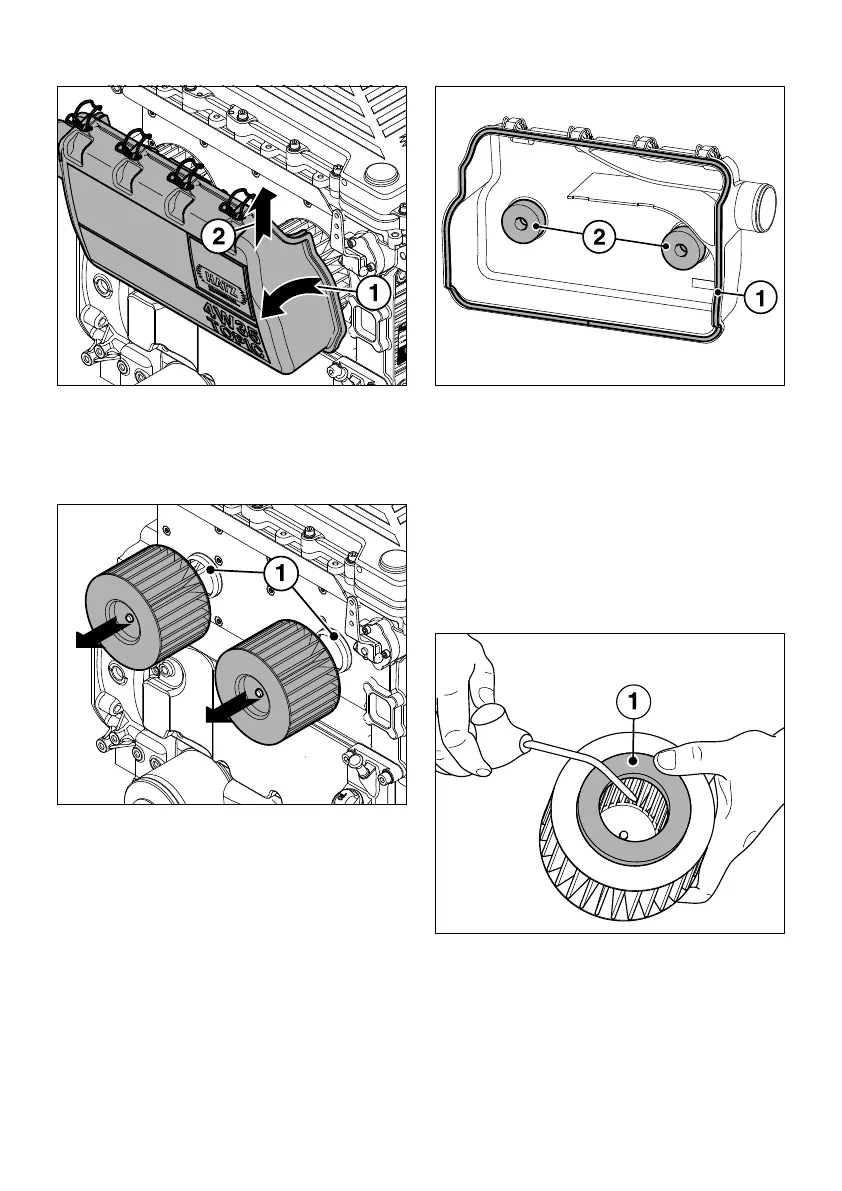

47
– Tilt air cleaner cover forwards (arrow 1), then
lift it and remove it (arrow 2).
48
– Pull filter cartridges carefully off the filter
support.
– Clean the filter support and the air cleaner
cover.
Make sure that dirt or other foreign matter
cannot enter the engine air intake port 1.
49
– Check seal 1 and rubber pad 2 for damage, de-
formation and cracks; if necessary, replace.
– The filter cartridge must either be replaced or -
depending on the degree of contamination -
cleaned or checked:
Cleaning the filter cartridge
Dry contamination
50
– Use compressed air to blow through the filter
cartridge from the inside outwards, until no
further dirt emerges.
Important !
The pressure must not exceed 5 bar.
