Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Loading
1. Remove LEFT Wheel Lock Pin (8),
Adjustment Pin (16), and their R-pins (6).
Insert RIGHT Wheel Lock Pin and secure
it in place, if it has been removed.
2. Move Adjustment Pin so motorcycle’s
weight will be centered on Platform.
Note: Some larger wheels will require Adjustment
Pin to be left off entirely. If used, secure
Adjustment Pin in place with a R-pin.
3. Remove Wingnut (10), Press
Plate (9) and Ramp (2).
4. Hook Ramp (2) to lip on RIGHT side of platform.
The Ramp must be secured to Platform.

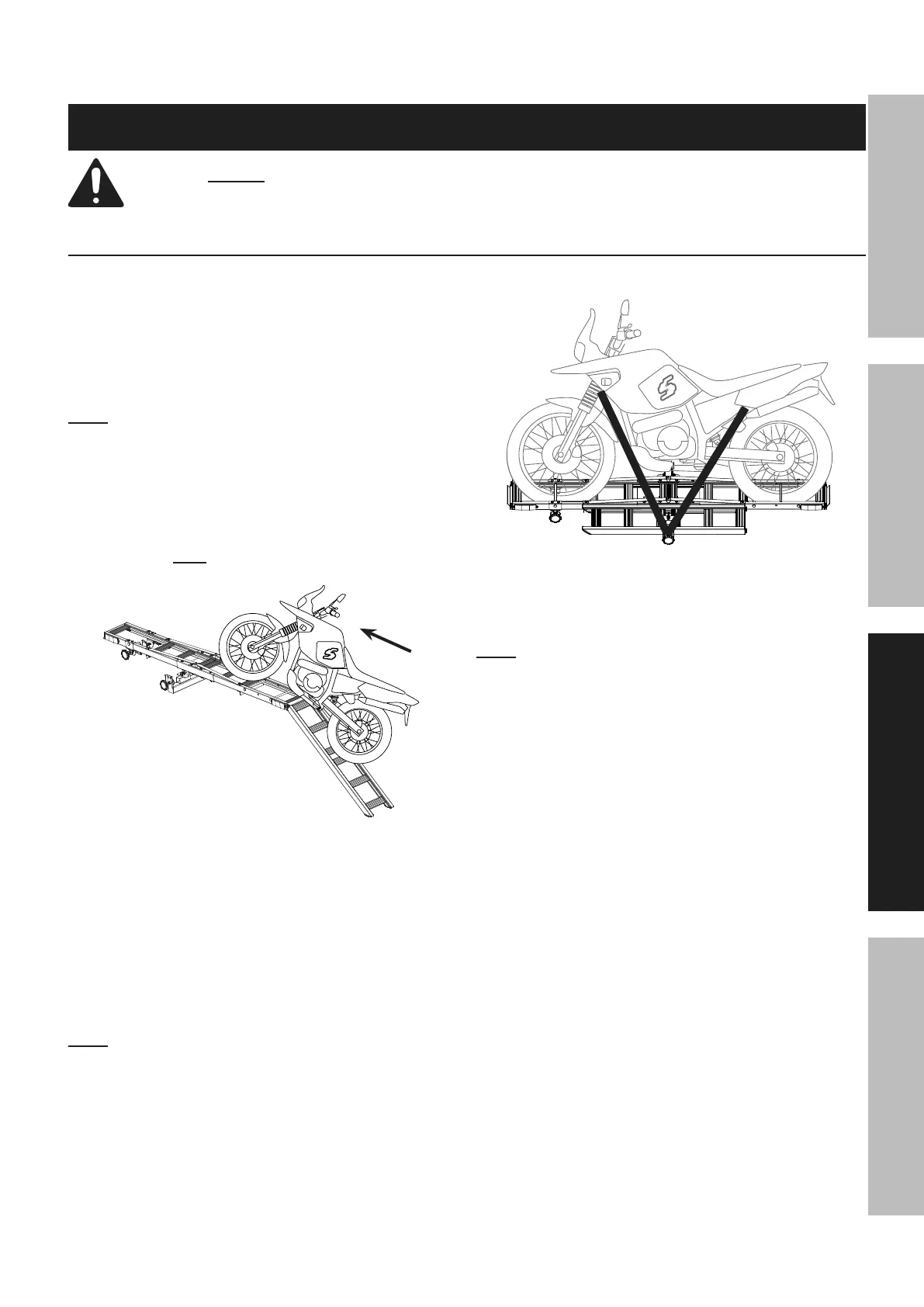

5. Put motorcycle in neutral and, with an
assistant, push it up Ramp. Stop when
front wheel reaches center of Platform
and have assistant support motorcycle.
6. Remove right Wheel Lock Pin, and its R-pin.
7. Push motorcycle completely onto carrier.
Install both Wheel Lock Pins through
motorcycle wheels and secure with R-pins.
Note: If a wheel cannot be secured with Wheel
Lock Pins, use properly-rated ratchet tie downs
to firmly secure it to its end of platform.
8. Put motorcycle in gear.
9. Tie down motorcycle, as shown above
(view from outboard side). Your bike and
tie down locations may be different.
Note: To avoid potential damage to motorcycle, do
not attach ratcheting tie down to handlebars.
a. Connect a ratcheting tie down from bracket
on end of Tube, to the front triple tree of
motorcycle and to Platform on the inboard side.
b. Connect a second ratcheting tie down from
bracket on end of Tube, over rear frame of
motorcycle and to Platform on the inboard side.
c. Connect a third ratcheting tie down to Tie
Down Bracket (4). Stretch tie down over
front triple tree of motorcycle and connect
to Platform on the outboard side.
d. Connect a fourth ratcheting tie down to Tie Down
Bracket (4). Stretch over rear frame of motorcycle
and connect to Platform on the outboard side.
10. Use ratcheting tie downs to compress
motorcycle’s suspension evenly until there is
no possibility of motorcycle coming loose.
11. Turn knob on each Wheel Clamp to
secure motorcycle’s front wheel.
12. Return Ramp to mounted position and
secure with Wingnut and Press Plate.
13. Attach any needed markers and/or lights to carrier
and motorcycle as required by vehicle codes.
