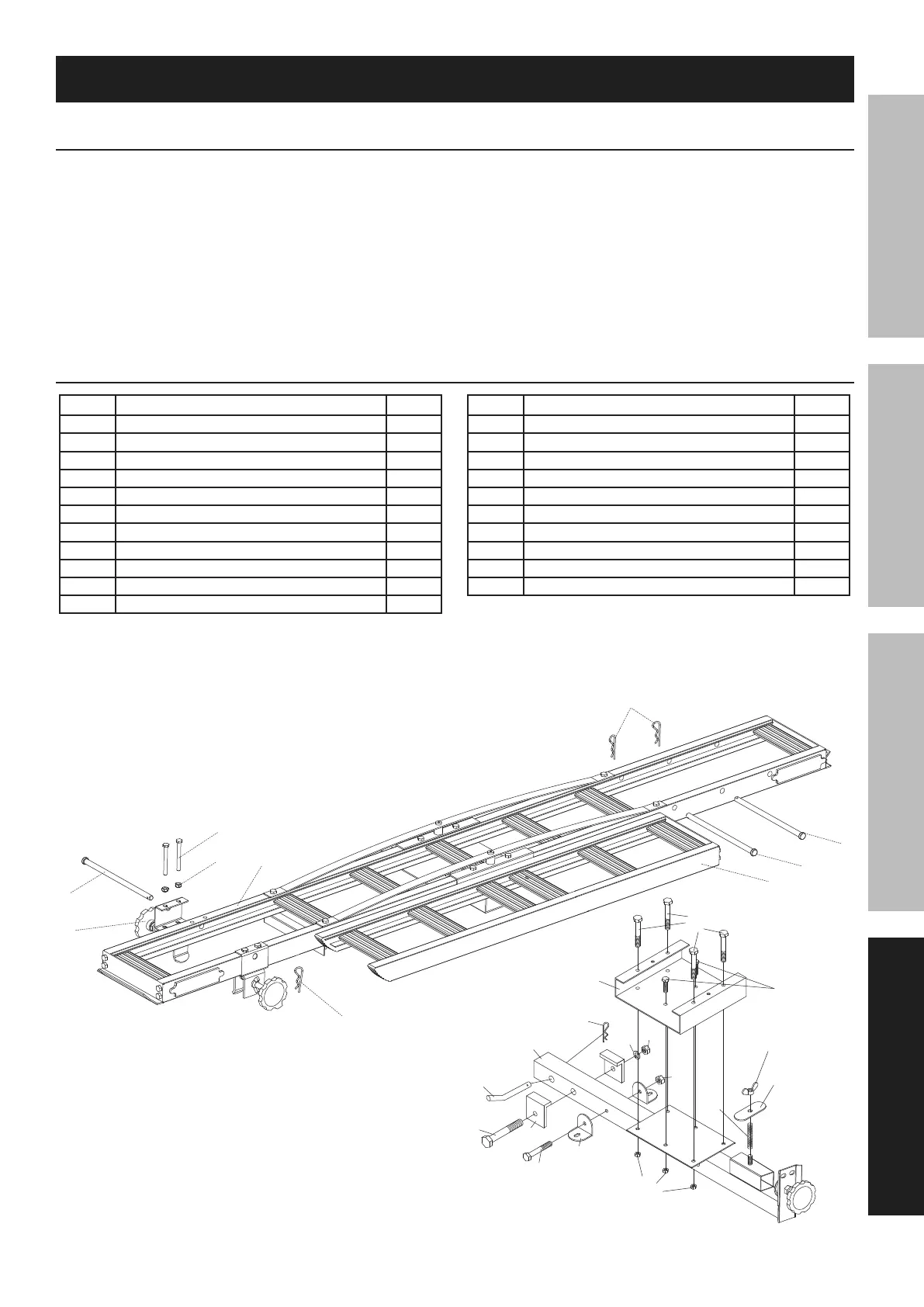

Parts List and Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Part Description Qty
1 Platform 1
2 Ramp 1
3 2" Tube w/ Bracket 1
4 Tie Down Bracket 2
5 Hitch Pin 5/8" 1
6 R-Pin 3 3
7 R-Pin 4 1
8 Wheel Lock Pin 2
9 Press Plate 1
10 Wing Nut 1
16 Adjustment Pin 1
Part Description Qty
17 Stabilizer 2
18 Spring Washer 12 1
19 Nut M12 1
20 Bolt M12 x 110 1
21 Bolt M6 x 70 13
22 Lock Nut M6 15
23 Wheel Clamp 3
24 Press Spring 1
25 U-Style Bracket 1
26 Bolt M8 x 20 2
21
22
23
6
2
16
1
5
3
7
20
17
18
19
21
4
22
22
10
9
24
21
26
25
To Next Page
