G - Technical characteristics
Engine-powered articulated lifts, 12 - 26 m
4.2 - FUNCTIONAL TEST
Functional tests have confirmed the following: :
• The machine has performed all movements without jerking, while carrying the nominal load.
• All security systems are operating correctly.
• Maximum authorized operating speeds are not exceeded.
4.3 - STABILITY TEST
The stability test proves that the machine is stable in an unfavourable position. The moment
when the machine tips is calculated by combining loads in the machine's most unfavourable
position (load W applied over distance L).

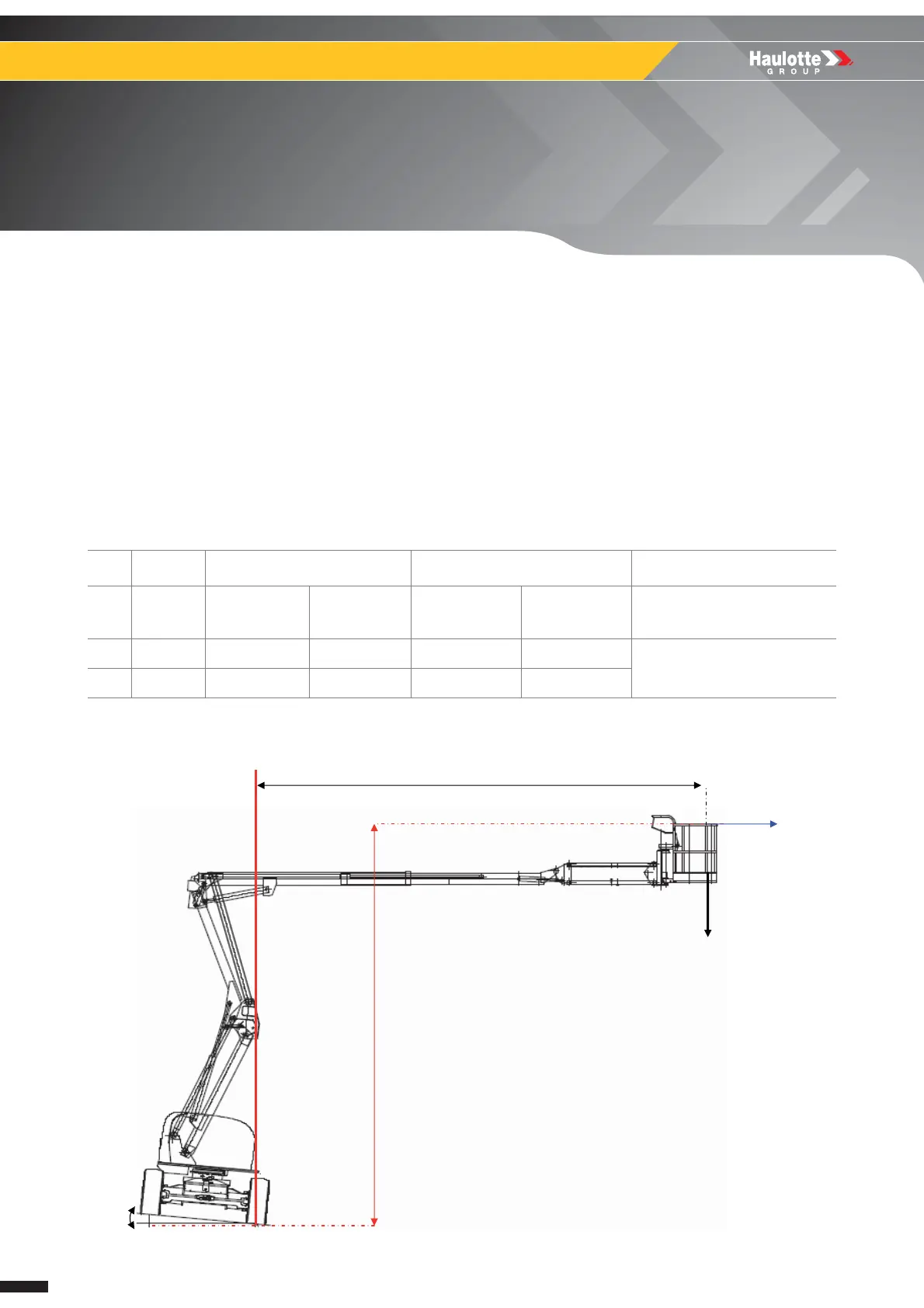

Stability table for HA120PX (N/A)
Stability for HA120PX (N/A)
T (°) W L Moment of tipping over
Pound (lb)
Kilogramme
(kg)
Feet inch (ft
in)
Mètre (m) m kgf
P 5,5 635 288 18,9 5,718
2036
F 5,5 128 58 22,2 6,762
d2 = 6.762m
d1= 5,718m
F
P
Tipping line
5,5°
