175 4001055250 E 10.21 USA / GB
Upper boom
Procedure of dismantling / reassembling cage
MS0027

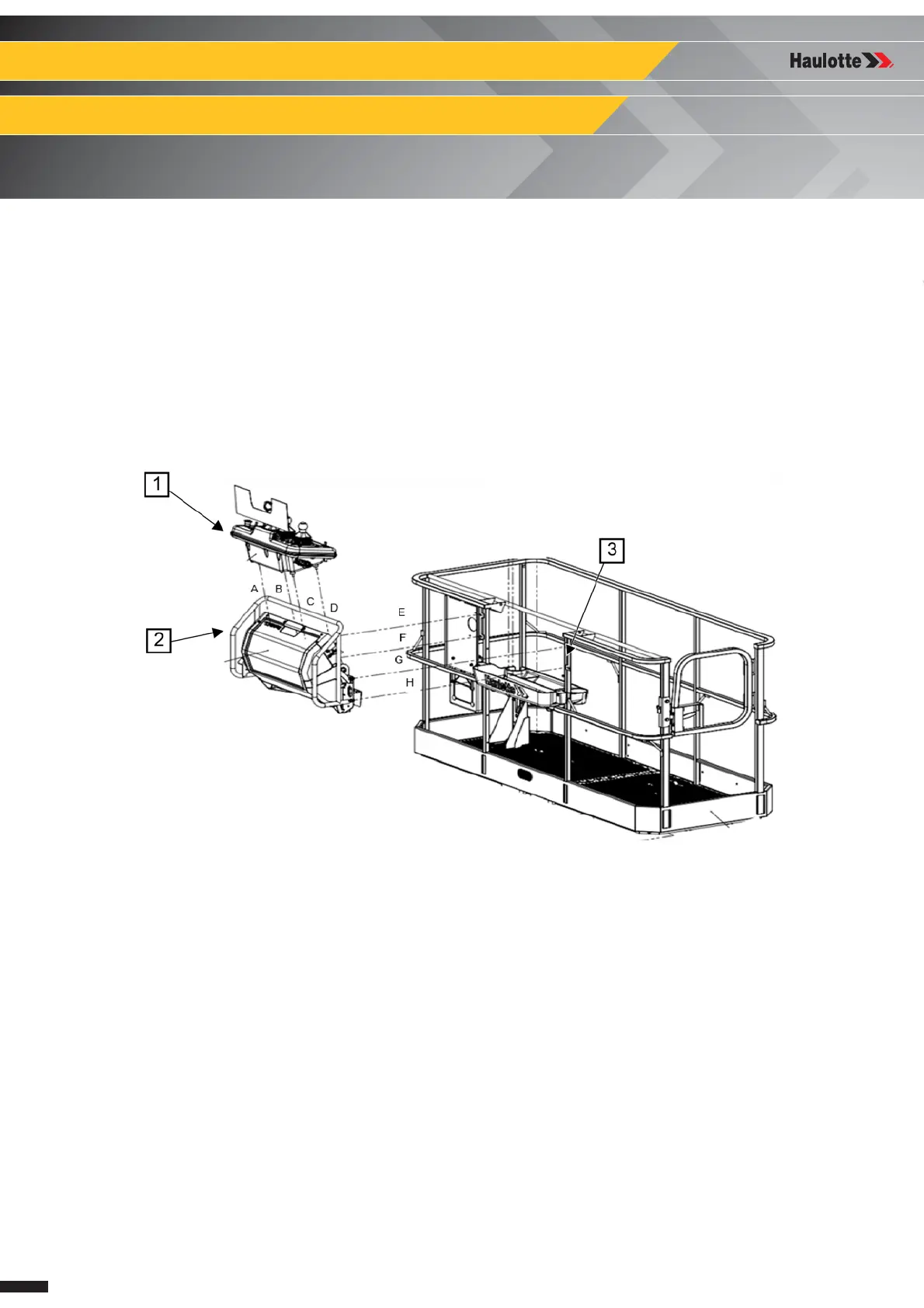

2.1 - REMOVE/RE-INSTALL THE CONTROL BOX SUPPORT AND TOOL TRAY
2.1.1 - Removal
• Open control box cover.
• Disconnect the main cables at their connectors either side of the control box (not shown).
• Unscrew and remove the 4 bolts / nuts ( A, B, C, D ) that fasten the control box to the ASB2.
• Unscrew and remove the 4 bolts / nuts ( E, F, G, H ) that fasten the ASB2 to the guard rails.
• The Control box support and tool tray can now be removed.
1. Control box
2. ASB2
3. Guardrail
2.1.2 - Replace
• Re-installation is a reversal of the removal procedure.
• Before tightening all bolts and nuts, close the control box to check the alignment of the latch. If required,
loosen the latch bolts, close latch to align and re-tighten.
