C - Familiarization
1.3.2 - Display Panel (LED'S 101 - 117)
Upper control box display
Marking Name Symbol Function
LED 101 HL900 Power ON
LED 102 HL300 Combustion engine pre-heating
LED 103 HL307 Low fuel level
LED 104 HL304 Engine warning
LED 105 HL305 Engine shutdown
LED 106 HL301 DPF regeneration required (If equipped)
LED 107 HL302
DPF regeneration in progress, high temperature in the
exhaust system ( HEST ) (If equipped)
LED 108 HL303 DPF regeneration inhibited (If equipped)
LED 109
1
HL805 Load selection 230 kg (500 lbs)
LED 110 HL807 Foot Switch / Stop Emission System
LED 111 HL801 Fault

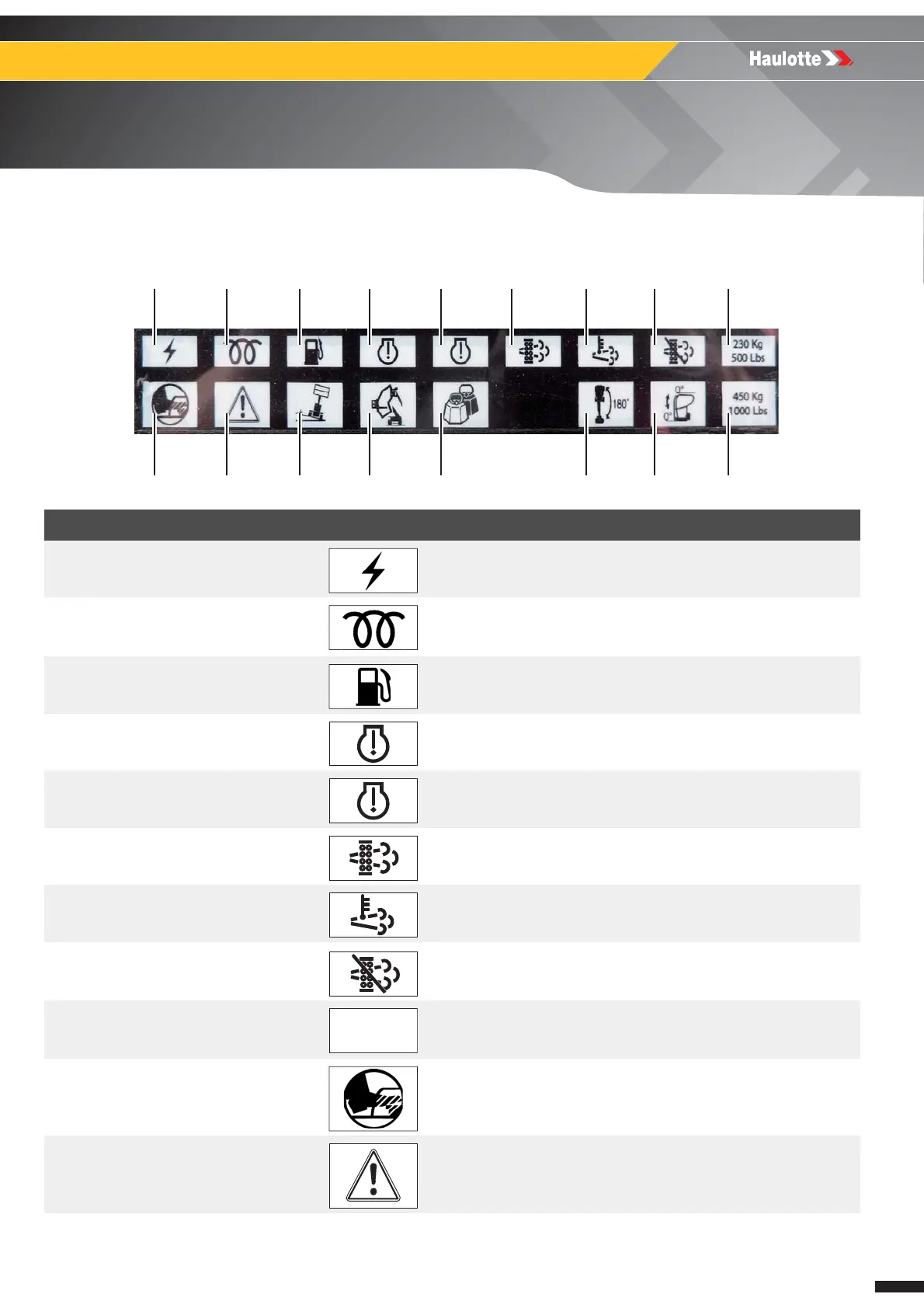

LED 101 LED 102 LED 103 LED 104 LED 105 LED 106 LED 107 LED 108 LED 109
LED 110 LED 111 LED 112 LED 113 LED 114 LED 115 LED 116 LED 117
230 kg
500 lbs
