14
ENGLISH
MOUNTING NON-STANDARD MITRE SAWS
5. You can now drill holes at your marked positions. Use a drill bit that is slightly
larger than the mounting hardware that you will be using.
6. You can now attach the adaptor plate and mitre saw to the Saw Mounting Rail.
The adaptor plate will be placed between the bottom of the mitre saw and the
top of the saw mounting rail.
7. Secure your remaining mitre saw mounting point(s) to the adaptor plate with an
, lock
washer, and lock nut.
NOTE: Bolt assembly for this step must be supplied by the end user.
SET-UP / KNOCK DOWN PROCEDURES
It is much easier to knock down the stand with the mitre saw not attached.
1. Release the easy-clamp Saw Mount Brackets and place the mitre saw off to
the side before proceeding.
2. Slide in the the work support extension rails.

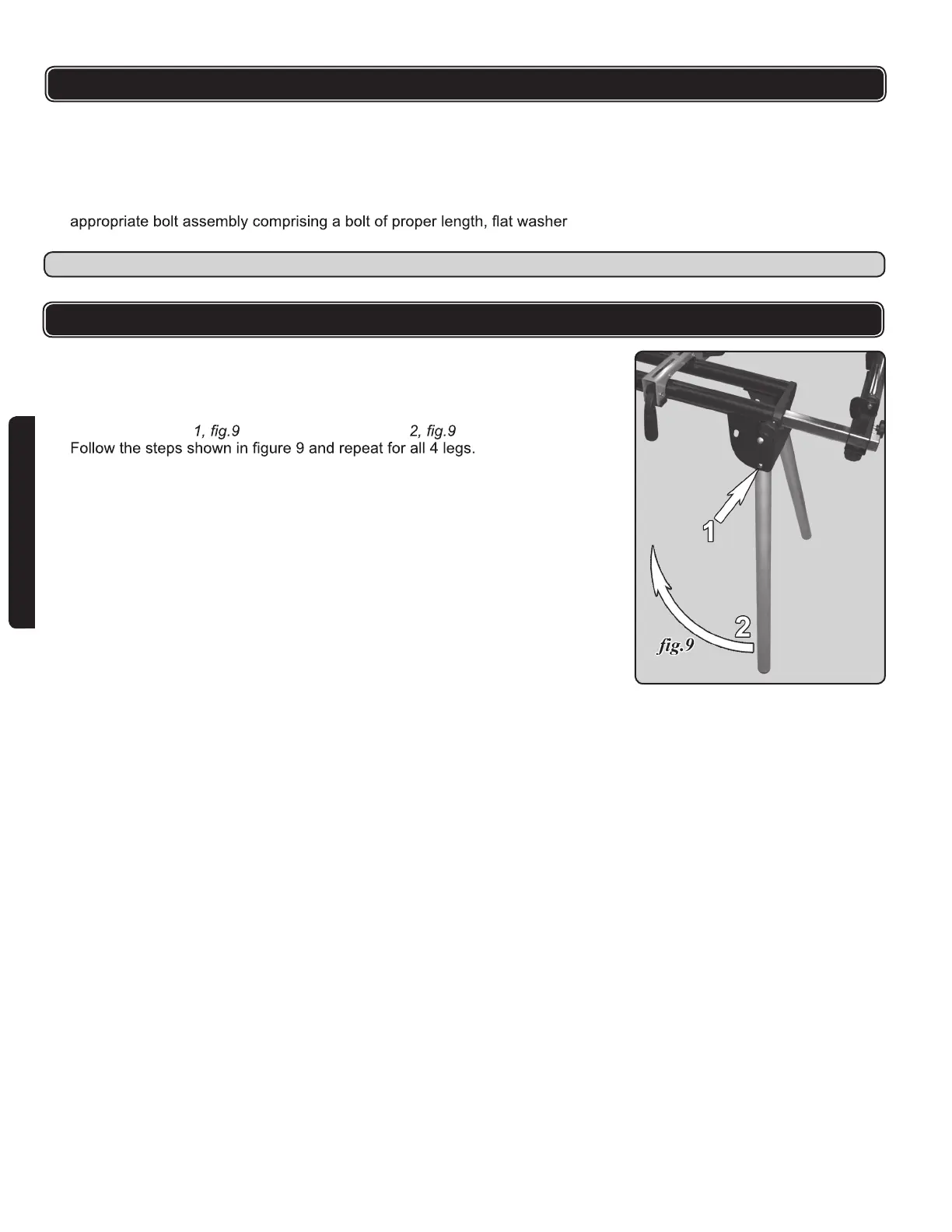

3. Press the button ( ) to swing the leg freely ( ).
4.
5. For set-up, reverse the above steps.
