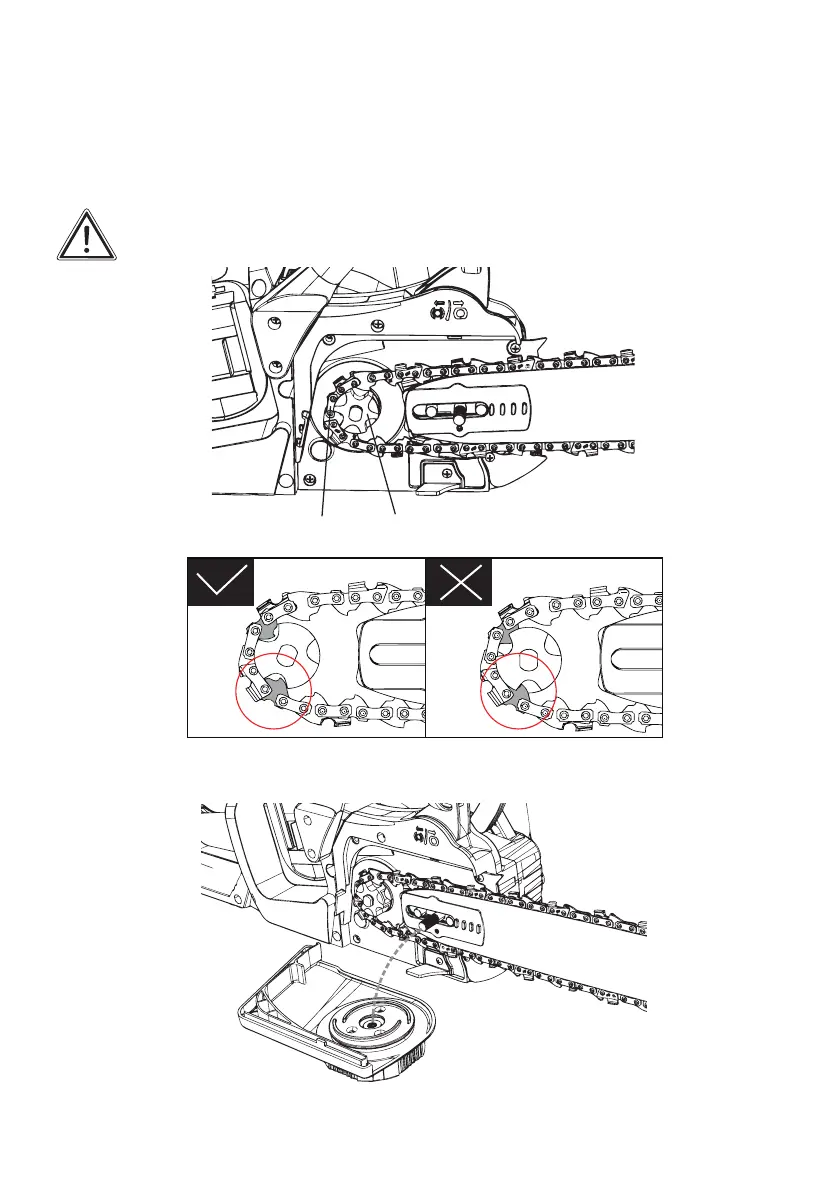

4. Hold the guide bar still and fit the chain
(
3) onto the drive sprocket(a). Pull the chain around the
drive sprocket(a) and into sprocket teeth. Position the guide bar(3) on the threaded stud. Make
sure the chain fits around drive sprocket(a) and keep the chain direction as shown in below figure.
Pay attention to make sure that the chain drive links(b) are fully and correctly seated into the
sprocket teeth according to the label on the sprocket cover, to avoid a kink.
Warning! If chain drive links are not correctly seated into the sprocket teeth, the saw
chain is not able to be tensioned properly and will lead to a loose chain. A loose chain
will cause injury and damage!
ab
5. Replace the sprocket cover(6) back onto the sprocket base on the machine.
