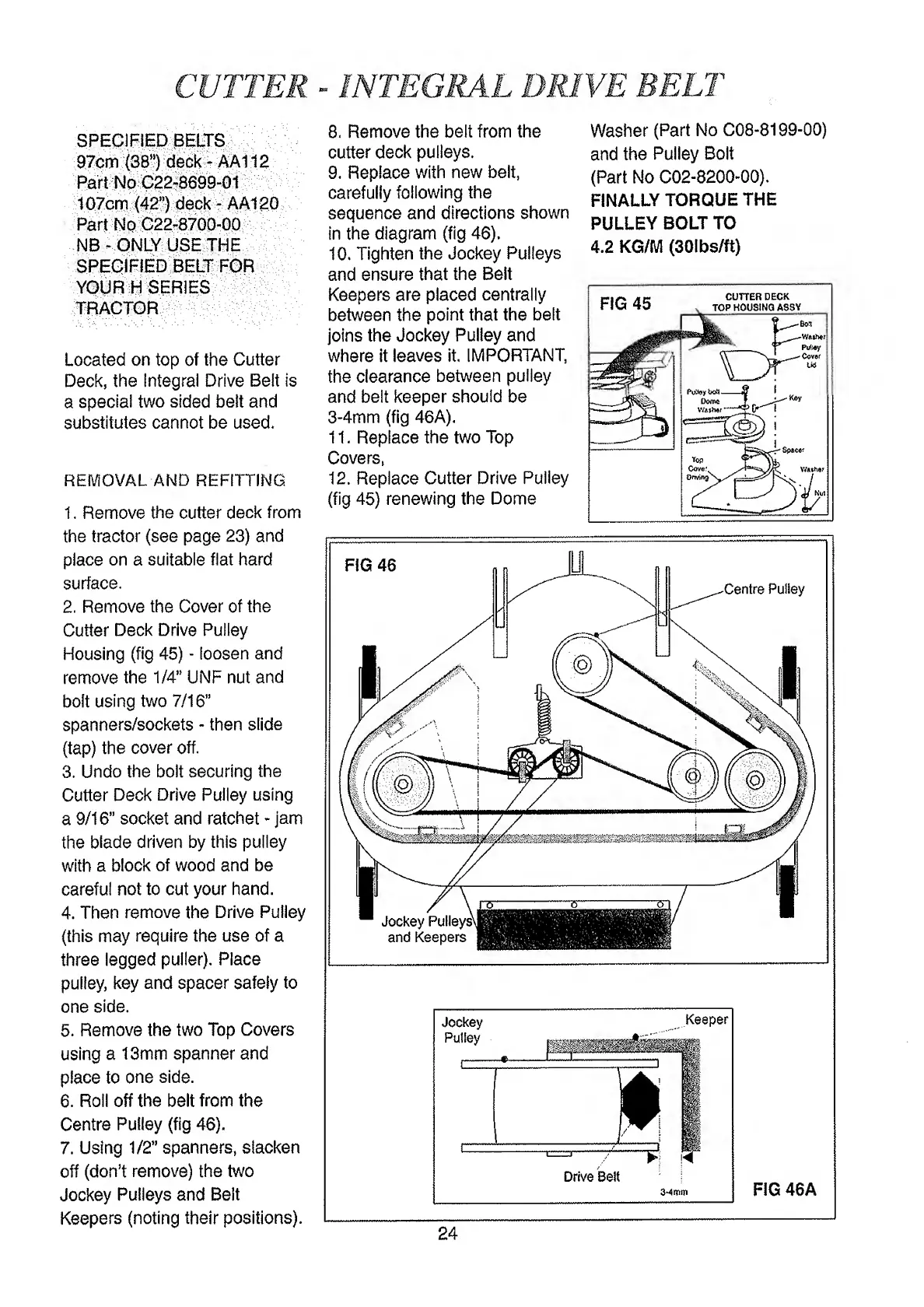

SPECIFIED BELTS
97cm (38”) deck - AA112
Part No C22-8699-01
1G7cm (42”) deck - AA120
Part No C22-8700-00
NB -ONLY USE THE
SPECIFIED BELT FOR
YOUR H SERIES
TRACTOR
Located on top of the Cutter
Deck, the Integral Drive Belt is
a special two sided belt and
substitutes cannot be used.
REMOVAL AND REFITTING
1. Remove the cutter deck from
the tractor (see page 23) and
place on a suitable flat hard
surface.
2. Remove the Cover of the
Cutter Deck Drive Pulley
Housing (fig 45) - loosen and
remove the 1/4” UNF nut and
bolt using two 7/16”
spanners/sockets - then slide
(tap) the cover off.
3. Undo the bolt securing the
Cutter Deck Drive Pulley using
a 9/16” socket and ratchet - jam
the blade driven by this pulley
with a block of wood and be
careful not to cut your hand.
4. Then remove the Drive Pulley
(this may require the use of a
three legged puller). Place
pulley, key and spacer safely to
one side.
5. Remove the two Top Covers
using a 13mm spanner and
place to one side.
6. Roll off the belt from the
Centre Pulley (fig 46).
7. Using 1/2” spanners, slacken
off (don’t remove) the two
Jockey Pulleys and Belt
Keepers (noting their positions).
8. Remove the belt from the
cutter deck pulleys.
9. Replace with new belt,
carefully following the
sequence and directions shown
In the diagram (fig 46).
10. Tighten the Jockey Pulleys
and ensure that the Belt
Keepers are placed centrally
between the point that the belt
joins the Jockey Pulley and
where it leaves it. IMPORTANT,
the clearance between pulley
and belt keeper should be
3-4mm (fig 46A).
11. Replace the two Top
Covers,
12. Replace Cutter Drive Pulley
(fig 45) renewing the Dome
Washer (Part No C08-8199-00)
and the Pulley Bolt
(Part No C02-8200-00).
FINALLY TORQUE THE
PULLEY BOLT TO
4.2 KG/M (30lbs/ft)
