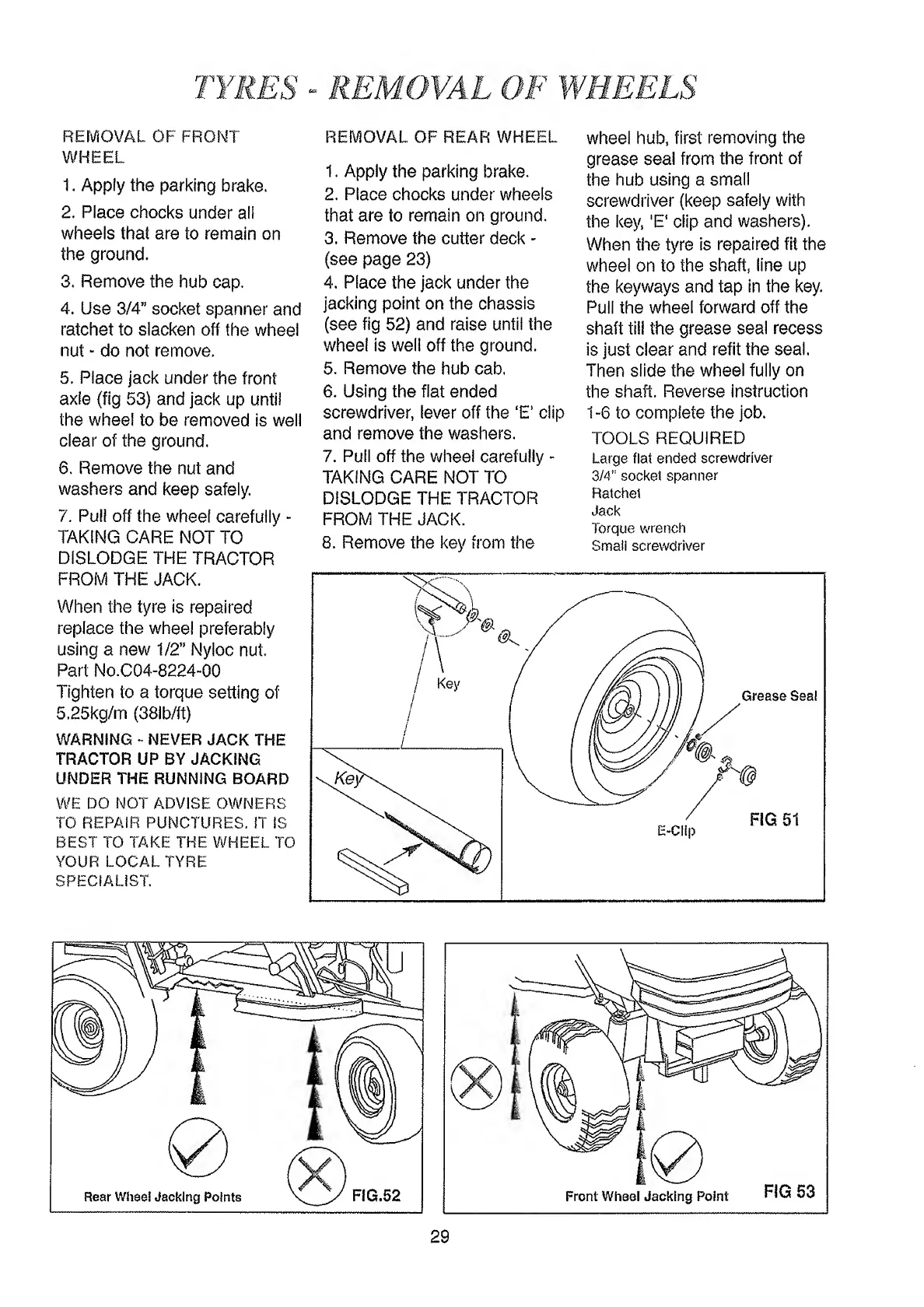

REMOVAL OF FRONT
WHEEL
1. Apply the parking brake.
2. Place chocks under all
wheels that are to remain on
the ground.
3. Remove the hub cap.
4. Use 3/4” socket spanner and
ratchet to slacken off the wheel
nut" do not remove.
5. Place jack under the front
axle (fig 53) and jack up until
the wheel to be removed is well
clear of the ground.
6. Remove the nut and
washers and keep safely.
7. Pull off the wheel carefully -
TAKING CARE NOT TO
DISLODGE THE TRACTOR
FROM THE JACK.
\A/hen the tyre is repaired
replace the wheel preferably
using a new 1/2” Nyloc nut.
Part NO.C04-8224-00
Tighten to a torque setting of
5.25kg/m (38lb/ft)
WARNING - NEVER JACK THE
TRACTOR UP BY JACKING
UNDER THE RUNNING BOARD
Vv'E DO NOT ADVISE OVYNERS
TO REPAIR PUNCTURES. IT IS
BEST TO TAKE THE WHEEL TO
YOUR LOCAL TYRE
SPECIALIST.
REMOVAL OF REAR WHEEL
1. Apply the parking brake.
2. Place chocks under wheels
that are to remain on ground.
3. Remove the cutter deck >
(see page 23)
4. Place the jack under the
jacking point on the chassis
(see fig 52) and raise until the
wheel is well off the ground.
5. Remove the hub cab.
6. Using the fiat ended
screwdriver, lever off the ‘E’ clip
and remove the washers.
7. Pull off the wheel carefully -
TAKING CARE NOT TO
DISLODGE THE TRACTOR
FROM THE JACK.
8. Remove the key from the
wheel hub, first removing the
grease seal from the front of
the hub using a small
screwdriver (keep safely with
the key, 'E' clip and washers).
When the tyre is repaired fit the
wheel on to the shaft, line up
the keyv^/ays and tap in the key.
Pull the wheel forward off the
shaft till the grease seal recess
is just clear and refit the seal.
Then slide the wheel fully on
the shaft. Reverse instruction
1 -6 to complete the job.
TOOLS REQUIRED
Large flat ended screwdriver
3/4” socket spanner
Ratchet
Jack
Torque wrench
Small screwdriver
29
