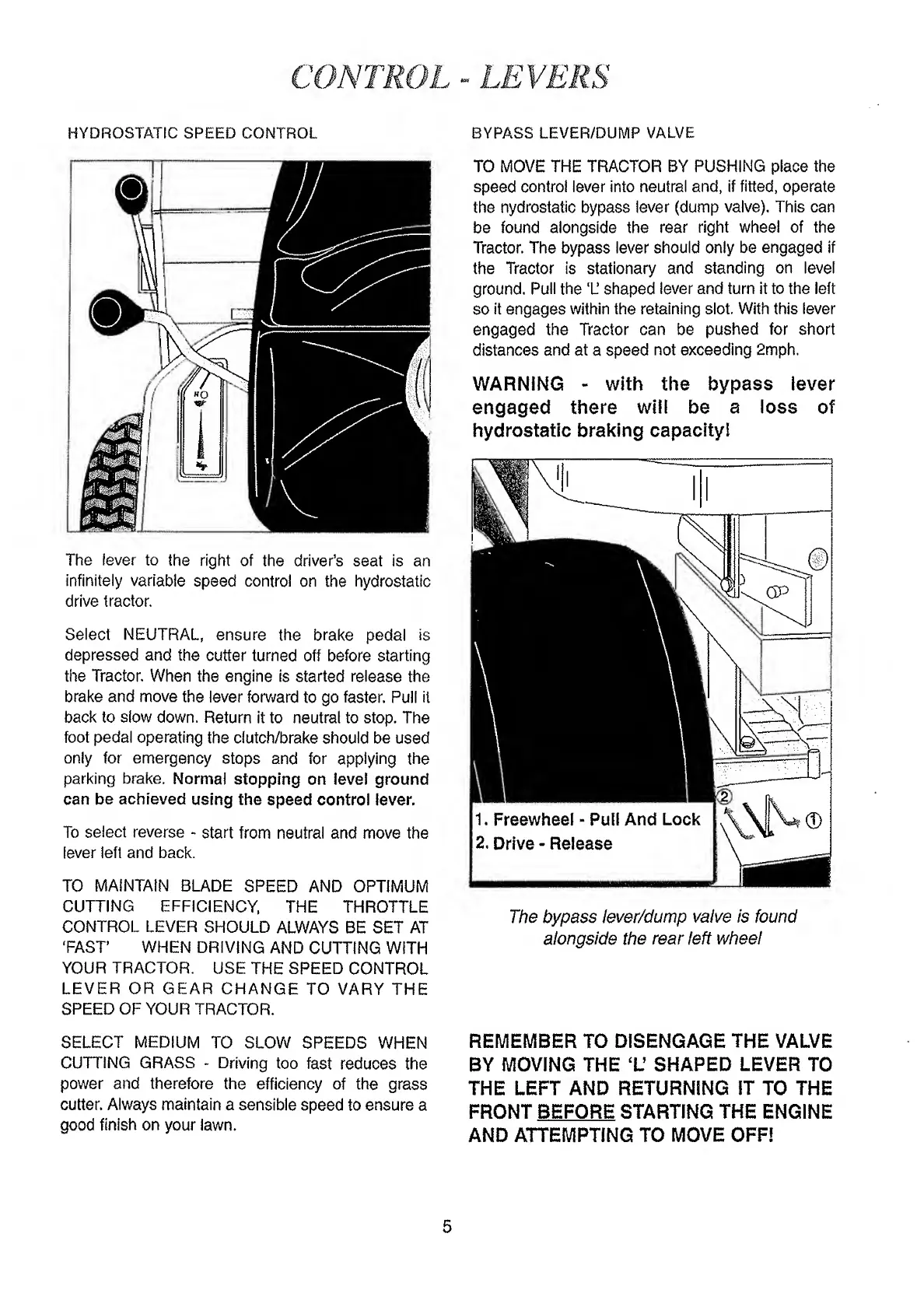

HYDROSTATIC

SPEED

CONTROL

BYPASS

LEVER/DUMP

VALVE

The

lever

to

the

right

of

the

driver’s

seat

is

an

infinitely

variable

speed

control

on

the

hydrostatic

drive

tractor.

Select

NEUTRAL,

ensure

the

brake

pedal

is

depressed

and

the

cutter

turned

off

before

starting

the

Tractor.

When

the

engine

is

started

release

the

brake

and

move

the

lever

forv^fard

to

go

faster.

Pull

it

back

to

slow

down.

Return

it

to

neutral

to

stop.

The

foot

pedal

operating

the

clutch/brake

should

be

used

only

for

emergency

stops

and

for

applying

the

parking

brake.

Normal

stopping

on

level

ground

can

be

achieved

using

the

speed

control

lever.

To

select

reverse

-

start

from

neutral

and

move

the

lever

left

and

back.

TO

MAINTAIN

BLADE

SPEED

AND

OPTIMUM

CUTTING

EFFICIENCY,

THE

THROTTLE

CONTROL

LEVER

SHOULD

ALWAYS

BE

SET

AT

‘FAST’

WHEN

DRIVING

AND

CUTTING

WITH

YOUR

TRACTOR.

USE

THE

SPEED

CONTROL

LEVER

OR

GEAR

CHANGE

TO

VARY

THE

SPEED

OF

YOUR

TRACTOR.

TO

MOVE

THE

TRACTOR

BY

PUSHING

place

the

speed

control

lever

into

neutral

and,

if

fitted,

operate

the

nydrostatic

bypass

lever

(dump

valve).

This

can

be

found

alongside

the

rear

right

wheel

of

the

Tractor.

The

bypass

lever

should

only

be

engaged

if

the

Tractor

is

stationary

and

standing

on

level

ground.

Pull

the

V

shaped

lever

and

turn

it

to

the

left

so

it

engages

within

the

retaining

slot.

With

this

lever

engaged

the

Tractor

can

be

pushed

for

short

distances

and

at

a

speed

not

exceeding

2mph.

WARNING

-

with

the

bypass

lever

engaged

there

will

be

a

loss

of

hydrostatic

braking

capacityl

The

bypass

lever/dump

valve

is

found

alongside

the

rear

left

wheel

SELECT

MEDIUM

TO

SLOW

SPEEDS

WHEN

CUTTING

GRASS

-

Driving

too

fast

reduces

the

power

and

therefore

the

efficiency

of

the

grass

cutter.

Always

maintain

a

sensible

speed

to

ensure

a

good

finish

on

your

lawn.

REMEMBER

TO

DISENGAGE

THE

VALVE

BY

MOVING

THE

V

SHAPED

LEVER

TO

THE

LEFT

AND

RETURNING

IT

TO

THE

FRONT

BEFORE

STARTING

THE

ENGINE

AND

ATTEMPTING

TO

MOVE

OFF!
