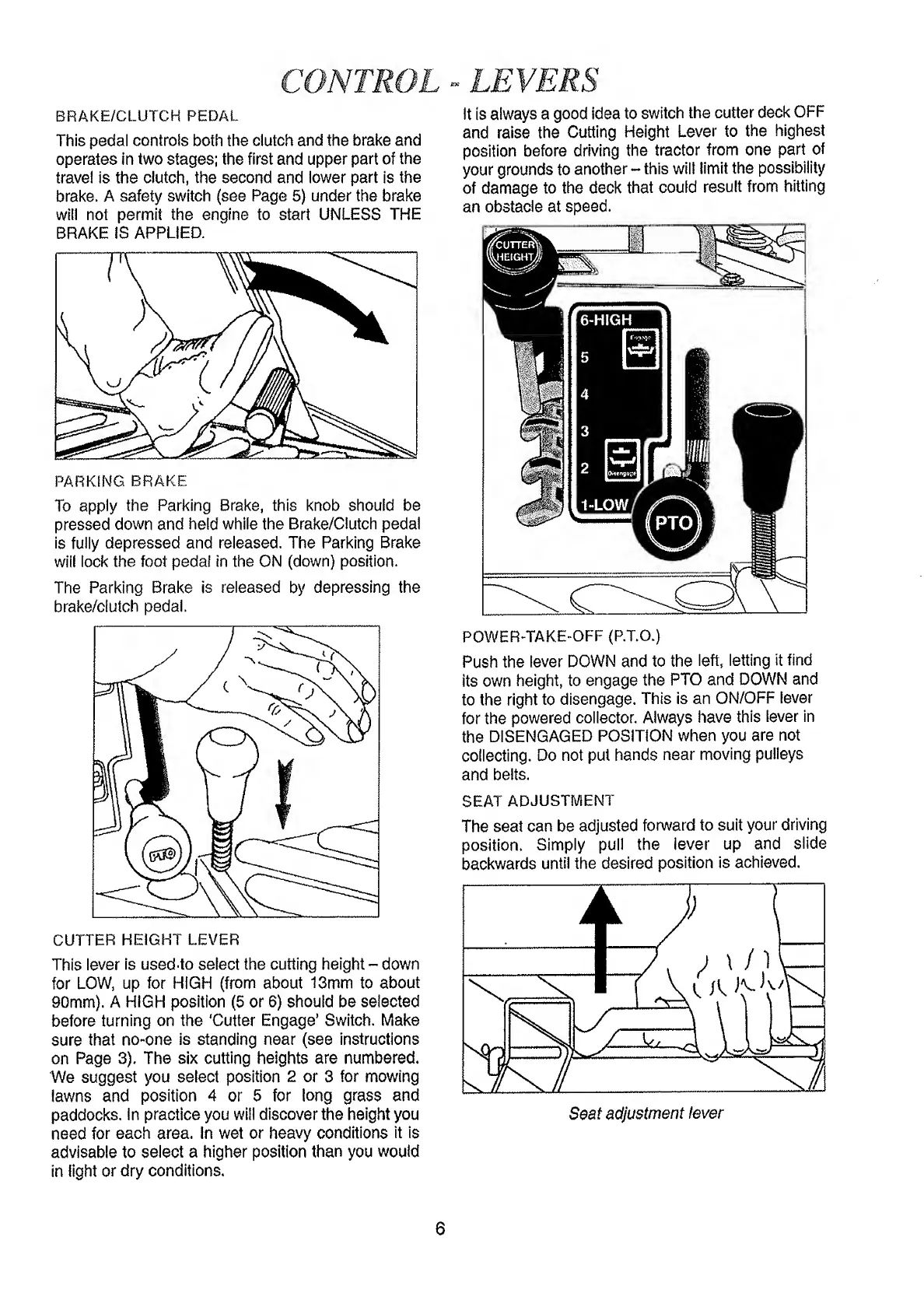

BRAKE/CLUTCH PEDAL
This pedal controls both the clutch and the brake and
operates in two stages; the first and upper part of the
travel is the clutch, the second and lower part is the
brake. A safety switch (see Page 5) under the brake
will not permit the engine to start UNLESS THE
BRAKE IS APPLIED.
PARKING BRAKE
To apply the Parking Brake, this knob should be
pressed down and held while the Brake/Ciutch pedal
is fully depressed and released. The Parking Brake
will lock the foot pedal in the ON (down) position.
The Parking Brake is released by depressing the
brake/clutch pedal.
CUTTER HEIGHT LEVER
This lever is used to select the cutting height - down
for LOW, up for HIGH (from about 13mm to about
90mm). A HIGH position (5 or 6) should be selected
before turning on the 'Cutter Engage’ Switch. Make
sure that no-one is standing near (see instructions
on Page 3). The six cutting heights are numbered.
We suggest you select position 2 or 3 for mowing
lawns and position 4 or 5 for long grass and
paddocks. In practice you will discover the height you
need for each area. In wet or heavy conditions it is
advisable to select a higher position than you would
in light or dry conditions.
It is always a good Idea to switch the cutter deck OFF
and raise the Cutting Height Lever to the highest
position before driving the tractor from one part of
your grounds to another - this will limit the possibility
of damage to the deck that could result from hitting
an obstacle at speed.
POWER-TAKE-OFF (P.T.O.)
Push the lever DOWN and to the left, letting it find
its own height, to engage the PTO and DOWN and
to the right to disengage. This is an ON/OFF lever
for the powered collector. Always have this lever in
the DISENGAGED POSITION when you are not
collecting. Do not put hands near moving pulleys
and belts.
SEAT ADJUSTMENT
The seat can be adjusted forward to suit your driving
position. Simply pull the lever up and slide
backwards until the desired position is achieved.
Seat adjustment lever
6
