Hayter LT322 - Assembly - Lifting and Alignment

Continued.

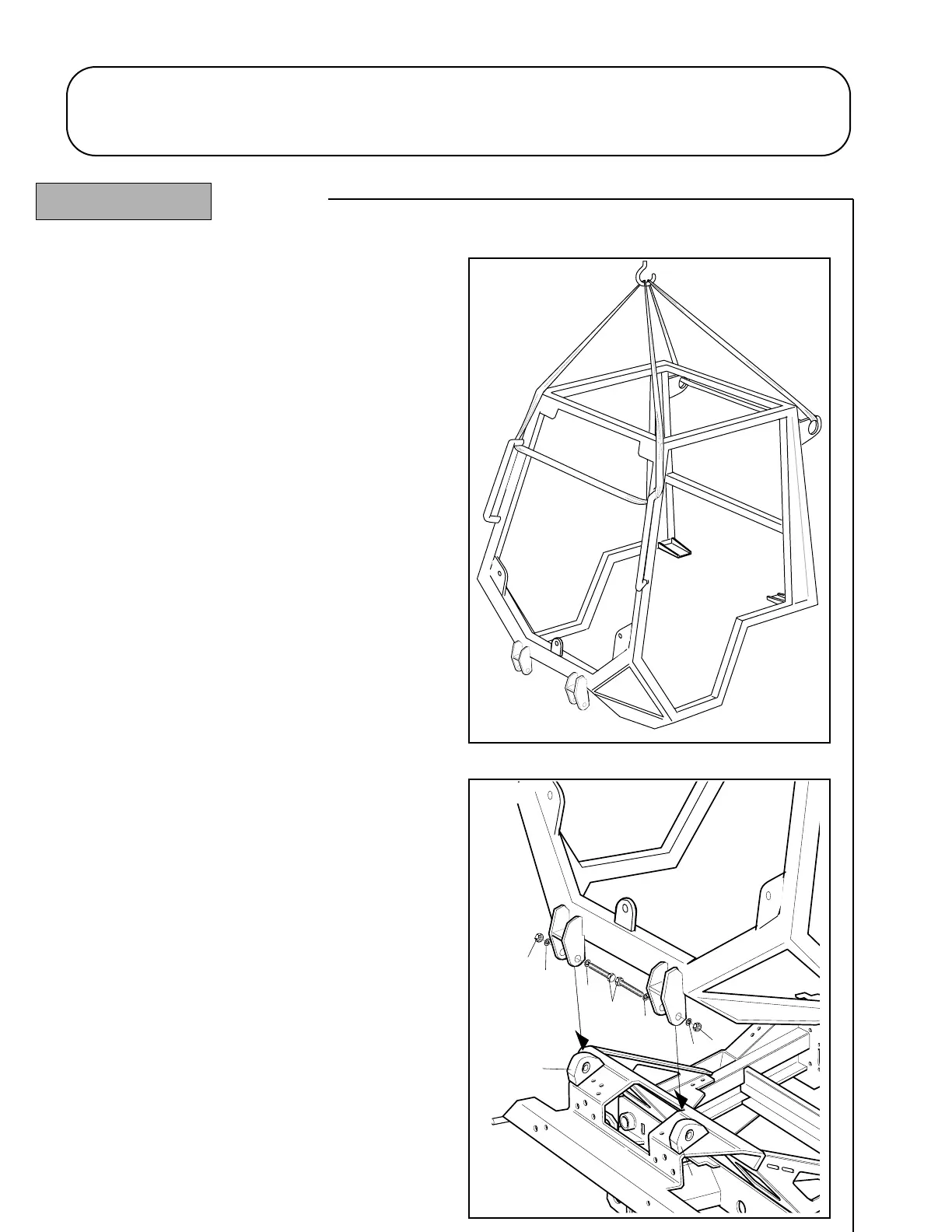

30. Using suitable lifting equipment (capable of lifting in
excess of 350Kg safely), carefully raise the cab frame
assembly from the transport frame using suitable lifting
straps as shown in fig. 8.
The transport frame should be returned to Hayter
Limited for re-use.
31. Carefully align the cab frame assembly with the
machine and pivot blocks (items 7) and secure using
M16 fasteners (items 4, 5, 6), but do not tighten fully at
this stage. Refer - fig. 9.
1.18 1.18
CAB GENERAL ASSEMBLY
1D919R02A
fig. 8.
6
5
5
6
7
5
5
4
1D919R07A
7
fig. 9.
