111-2845 Rev A

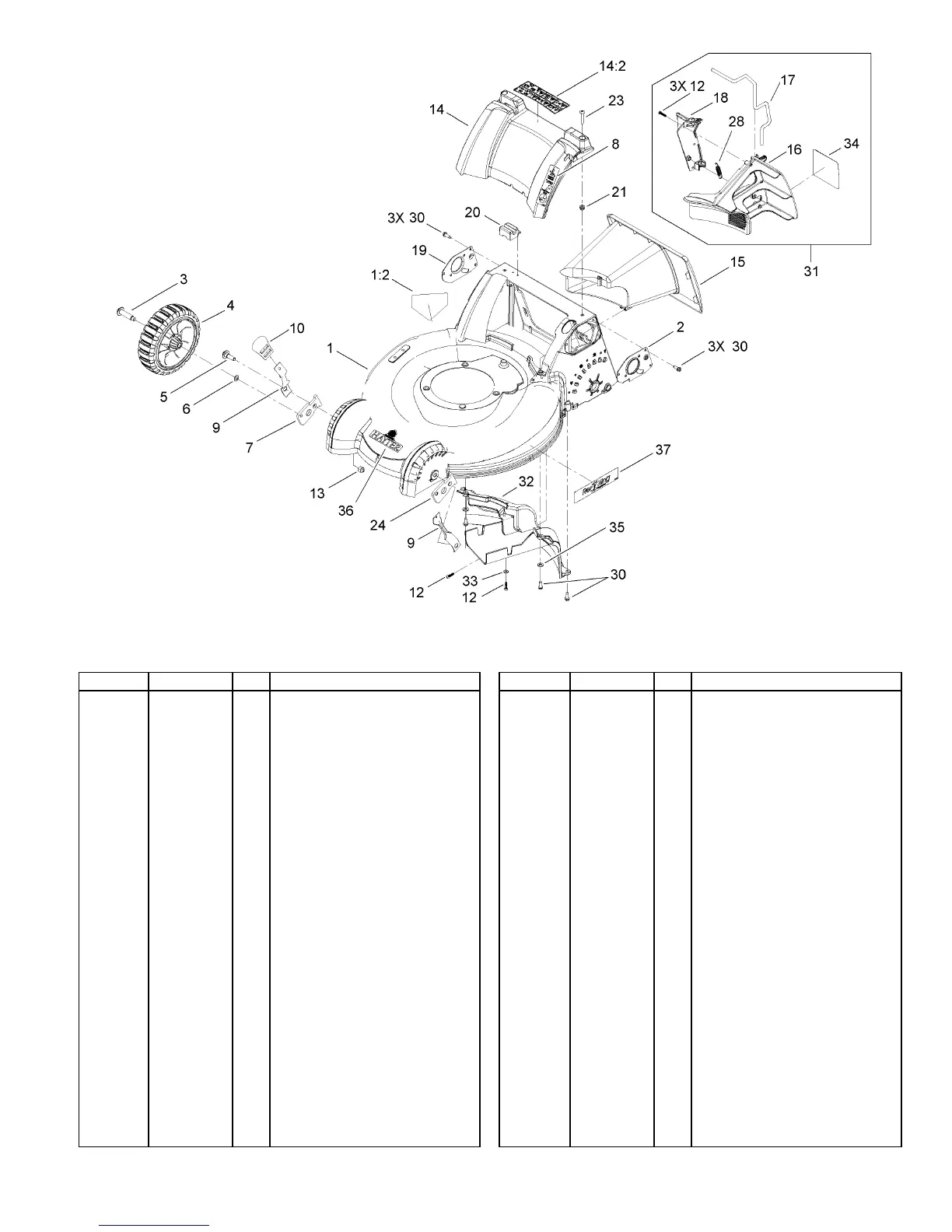

Housing Component Assembly
2
Ref Part No. Qty. Description
Housing ASM1
117-4111
1
Decal-Danger1:2
112-8760
1
Mount-Handle, LH2
110-9415-03
1
Bolt-Shoulder3
614650
2
8 Inch Wheel ASM4
117-4103
2
Bolt-Shoulder5
614672
2
Washer6
40-1940
2
Arm-Pivot, RH7
110-9421
1
Decal-Handle Adjust, Hayter8
111-2210
1
Arm-Spring, Front9
110-9434
2
Knob-HOC10
110-7125
2
Screw-Plastite12
108-7476
6
Nut-Lock, NI13
3296-39
2
Cover-Rear14
115-3177
1
Decal-Warning14:2
114-2820
1
Tunnel15
110-9456
1
Plug-Mulch, LH16
110-9446
1
Latch-Plug, Mulch17
110-9448
1
Plug-Mulch, RH18
110-9447
1
Mount-Handle, RH19
110-9416-03
1
Module-Switch20
110-1787
1
Nut-Clip21
94-1610
2
Screw-PTH23
108-0965
2
Arm-Pivot, LH24
110-9420
1
Ref Part No. Qty. Description
Spring-Extension28
110-9458
1
Screw-HWHTF30
49-2040
11
Mulch Plug ASM31
110-9468
1
n
Baffle-Rear32
110-9413
1
Washer-Flat33
3256-14
1
Decal-Plug, Mulch34
110-9457
1
Washer-Flat35
3256-22
2
Decal-Hayter36
410087
1
Decal-Recycling37
114-3233
1
3
