Hayter R53A Parts Catalog

111-2845 Rev A

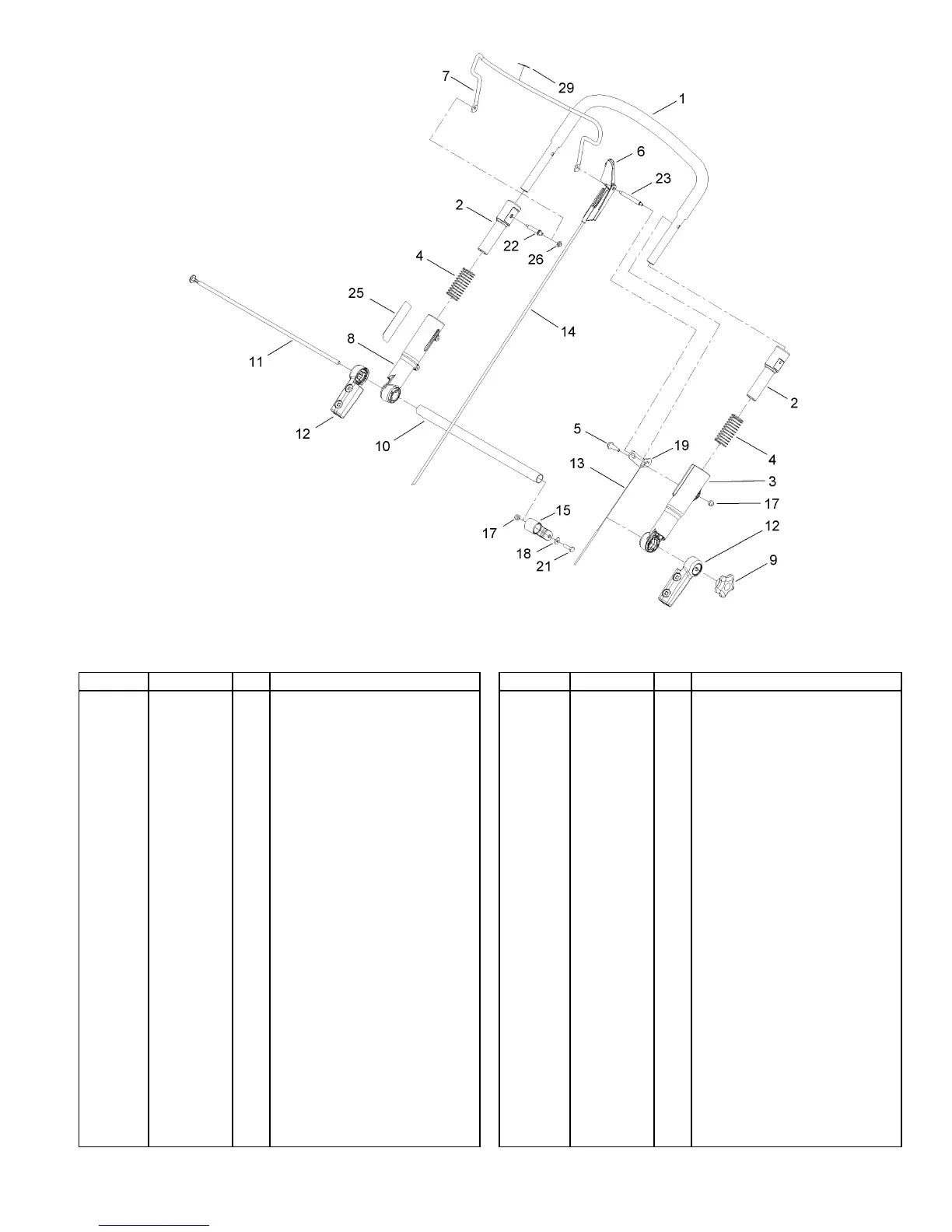

Upper Handle Assembly
4
Ref Part No. Qty. Description
Upper Handle ASM1
108-0974
1
Sleeve-Inner2
112-8754
2
Sleeve-Outer, LH3
112-1544
1
Spring-Compression4
107-3869
2
Bolt-Shoulder5
104-0858
1
Stop-Pivot6
112-8764
1
Bail-Brake7
110-1819-03
1
Sleeve-Outer, RH8
112-1545
1
Knob-Handle9
106-4161
1
Tube-Cross10
107-3867-03
1
Rod-Threaded11
107-3871
1
Mount-Handle, Lower12
107-3865
2
Cable-Traction13
110-9465
1
Cable-Brake14
107-3903
1
Clamp-Cable15
112-8801
1
Nut-Lock, NI17
3296-73
2
Washer-Flat18
3256-1
1
Lever-Traction19
107-3893
1
Screw-HH21
321-5
1
Pin-Handle22
108-0959
1
Pin-Bail, LH23
108-1008
1
Decal-Sas, Hayter25
111-2209
1
Retainer-Push On26
108-9378
1
Decal-Engine Stop29
117-4157
1
5

Hayter R53A Specifications

General

Brand	Hayter
Model	R53A
Category	Lawn Mower
Language	English
