111-2845 Rev A

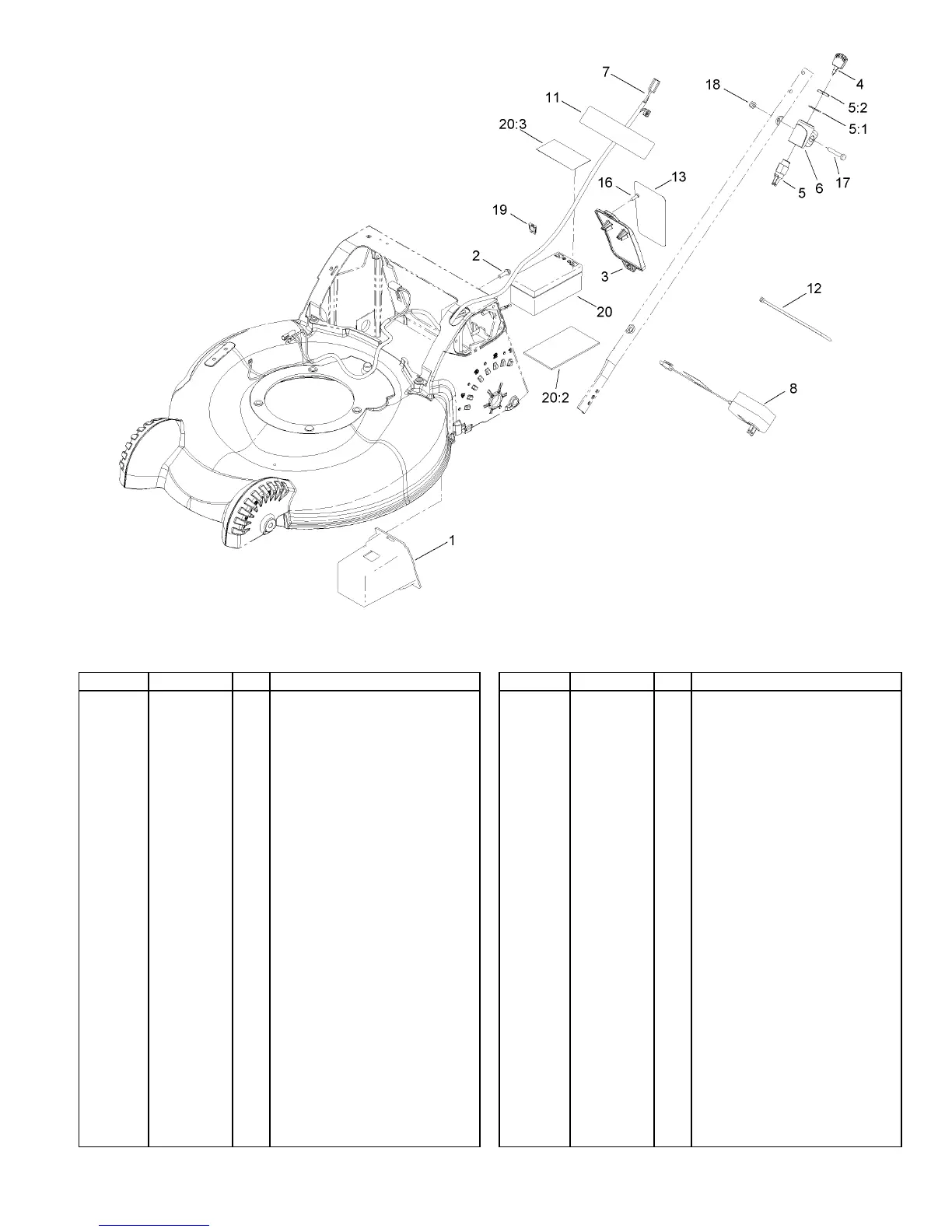

Electrical Assembly
7
Ref
Part No.
Qty.
Description
Box-Battery
1
107-3932
1
Screw-HWH
2
46-8091
4
Cover-Battery
3
108-0981
1
Key
4
700918
1
Switch-Starter
5
46-5780
1
Washer-Tooth
5:1
3254-5
1
Nut-HH
5:2
218-461
1
Mount-Switch
6
108-9760
1
Harness-Wire
7
114-2815
1
Charger-Hayter
8
117-4108
1
Decal-Harness
11
104-7953
1
Strap-Tie
12
614249
2
Decal-Instruction, Ba
ttery
13
108-0992
1
Screw-PPH
16
32144-111
2
Screw-HH
17
321-51
1
Nut-Lock, NI
18
3296-73
1
Fuse-40 Amp
19
99-6124
1
Battery
20
108-9358
1
Foam-Batt
ery
20:2
108-0987
1
Decal-Terminal, Batter
y
20:3
112-8763
1
8
7
9
Table of Contents
Parts Catalogue
1
Table of Contents
2
Housing Component Assembly
3
Rear Wheel, Transmission and Side Discharge Chute Assembly
4
Upper Handle Assembly
5
Lower Handle Assembly
6
Blade and Engine Assembly
7
Electrical Assembly
8
Bag Assembly
9
