111-28
45
Rev A

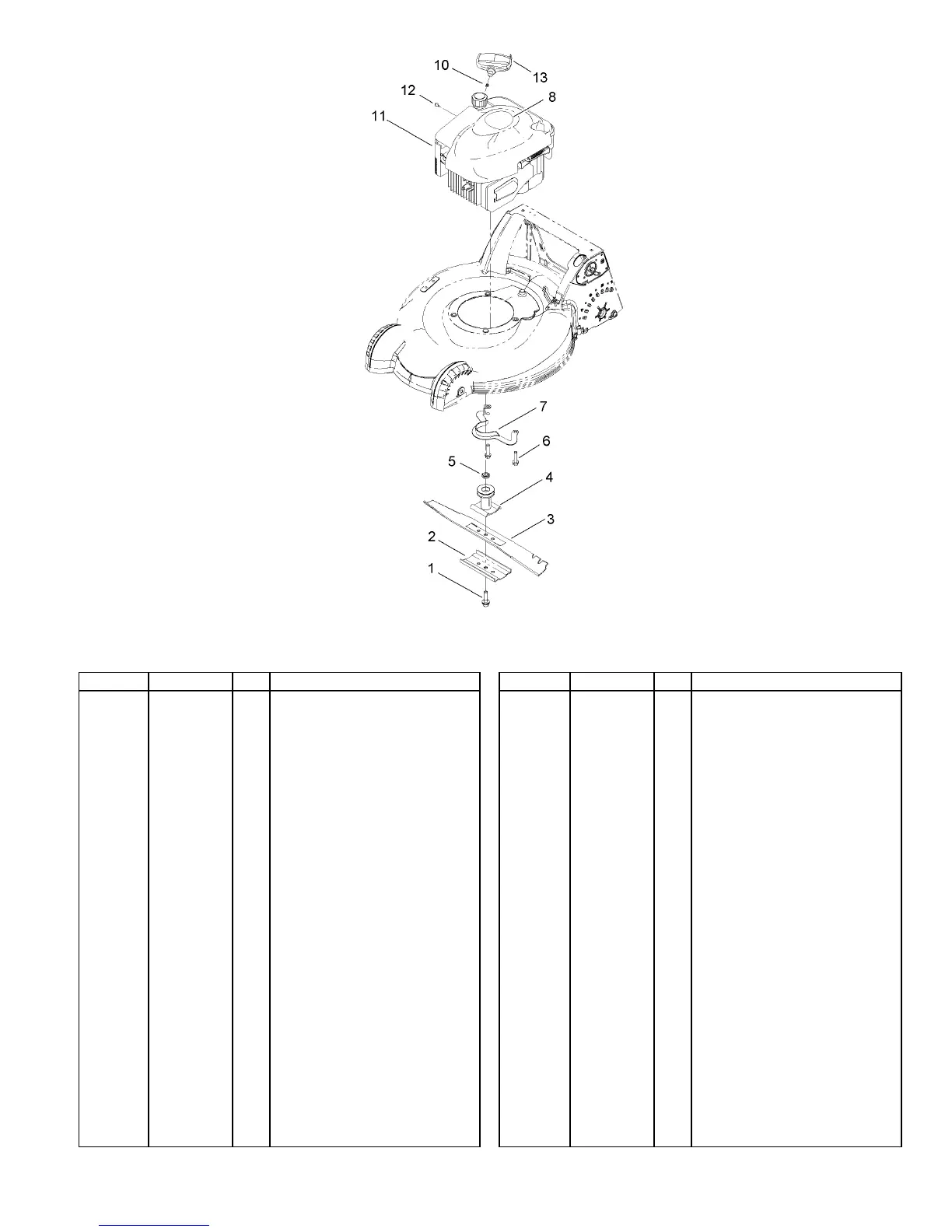

Blade and Engine Assembly
6
Ref
Part No.
Qty.
Description
Bolt-Blade
1
105-8579
1
Support-Blade
2
108-3766-03
1
Blade
-21 I
nch
3
108-0954-03
1
Blade Driver ASM
4
106-3987
1
Spacer-Driver
5
106-3999
1
Screw-HWH
6
32144-102
3
Guide-Belt
7
108-8110-03
1
Decal
8
111-2207
1
Stop-Rope
10
2210-316
1
Engine-Quantum, 126T05-0239-
B1
11
1
op
Screw-HWH
12
98-1394
1
Handle-Recoil
13
117-4142
1
7
6
8
Table of Contents
Parts Catalogue
1
Table of Contents
2
Housing Component Assembly
3
Rear Wheel, Transmission and Side Discharge Chute Assembly
4
Upper Handle Assembly
5
Lower Handle Assembly
6
Blade and Engine Assembly
7
Electrical Assembly
8
Bag Assembly
9
