DriveSystem

Maintenance

AdjustingtheAuto-drive

Ifyourmowerdoesnotself-propelproperly,adjustthe

auto-drivecable.

1.Loosenthenutonthecablemount(Figure48).

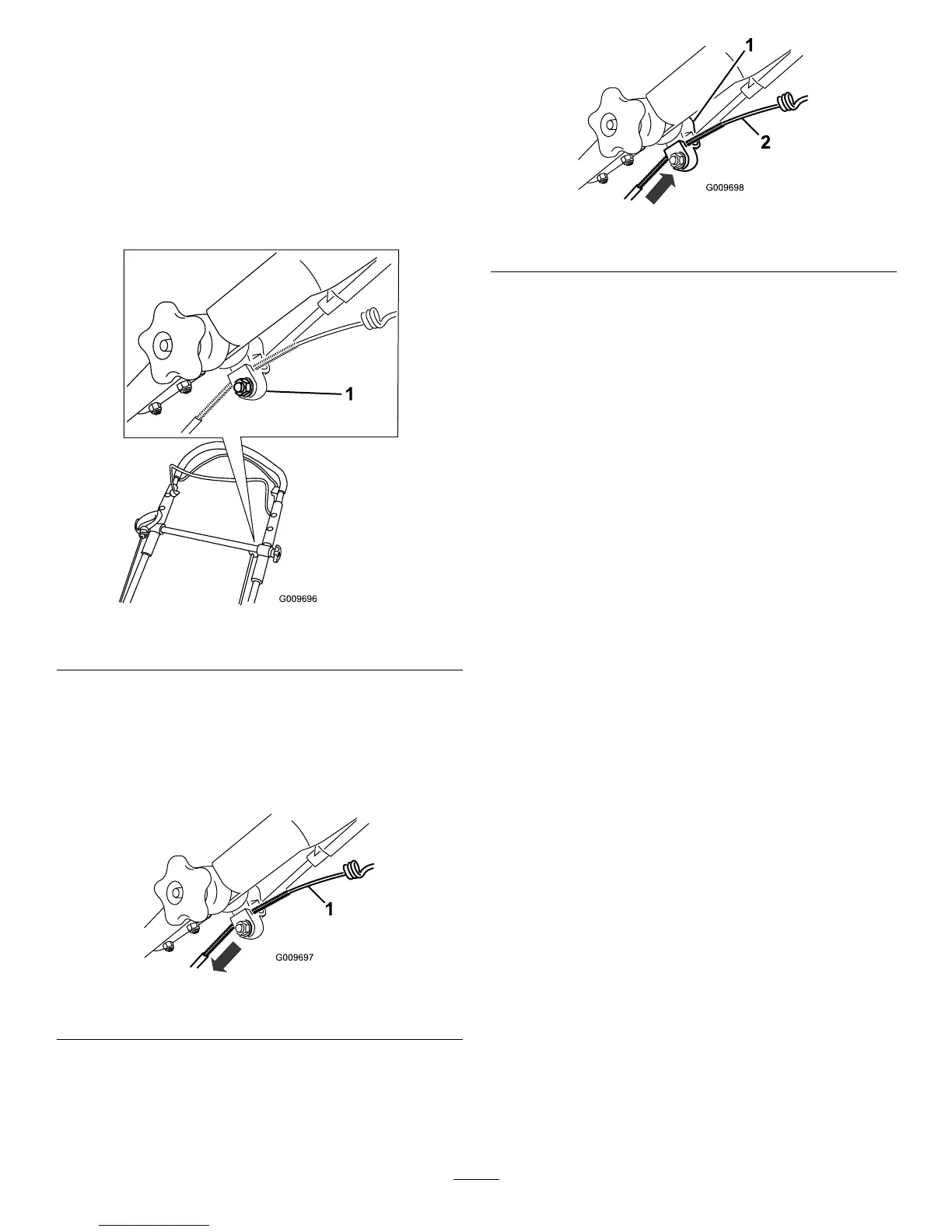

G009696

Figure48

1.Cablemount

2.Pulltheupperhandlebackfullyrearward.

Note:Ifthehandledoesnotmovesmoothly,refer

toLubricatingtheUpperHandle.

3.Pullthecablejacketdownwarduntilyouremovethe

slackintheexposedcable(Figure49).

Figure49

1.Exposedcable

4.Pushthecablejacketupward1/8inch(3mm).

Note:Youcanplacearuleragainsttheupperside

oftheblackcablemountandmeasurehowfarthe

upperendofthecablejacketmoves(Figure50).

Figure50

1.Cablemount2.Cablejacket

Note:Movingthecablejacketupwarddecreases

thegroundspeed;movingthejacketdownward

increasesthegroundspeed.

5.Tightenthenutrmly.

6.Startthemowerandchecktheadjustment.

Note:Iftheself-propeldriveisnotproperly

adjusted,repeatthisprocedure.
