4. USER INTERFACE
(*) Function not available on this model.

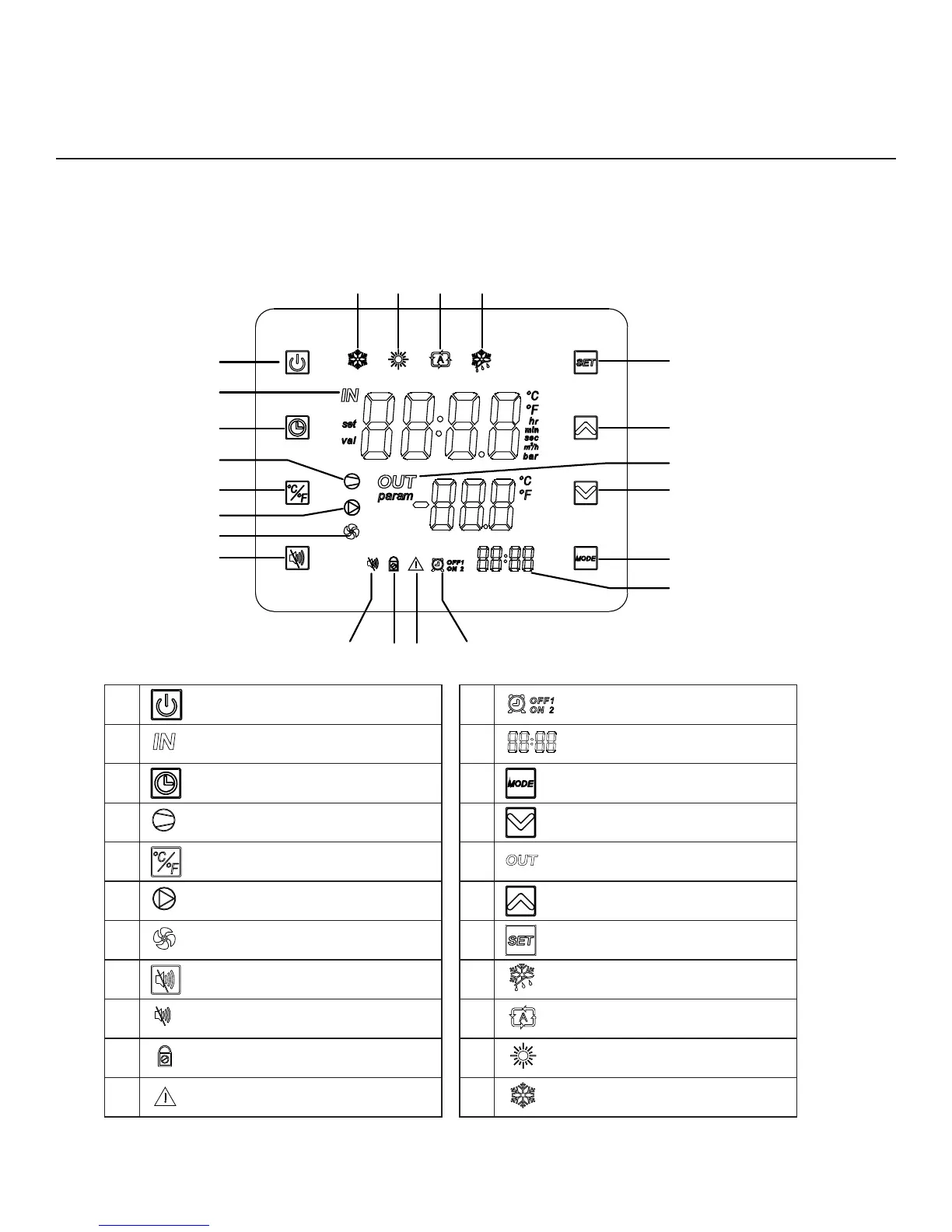

4.1 General presentation
The heat pump is equipped with a digital control panel with a touch screen,
electronically connected and pre-set at the factory in heating mode.
1 On/Off
2
Water inlet
3
Clock and timer settings
4
Compressor ON
5
Conversion °C/°F
6
Dry contact OUT2
7
Fan ON
8
Silent mode (*)
9
Silent mode indicator
10
Locked screen
11
Alarm
12 Timers 1 and 2
13
Timers’ time
14
Mode selection
15
Scroll down / Decrease
16
Water outlet
17
Scroll up / Increase
18
Save / settings
19
Defrost mode
20
Automatic mode
21
Heating mode
22
Cooling mode
1
2
3
4
5
6
7
8
1091112
13
14
15
16
17
18
19202122
Legend
