Hayward HP85A - Wiring Diagram

13
6. APPENDIX

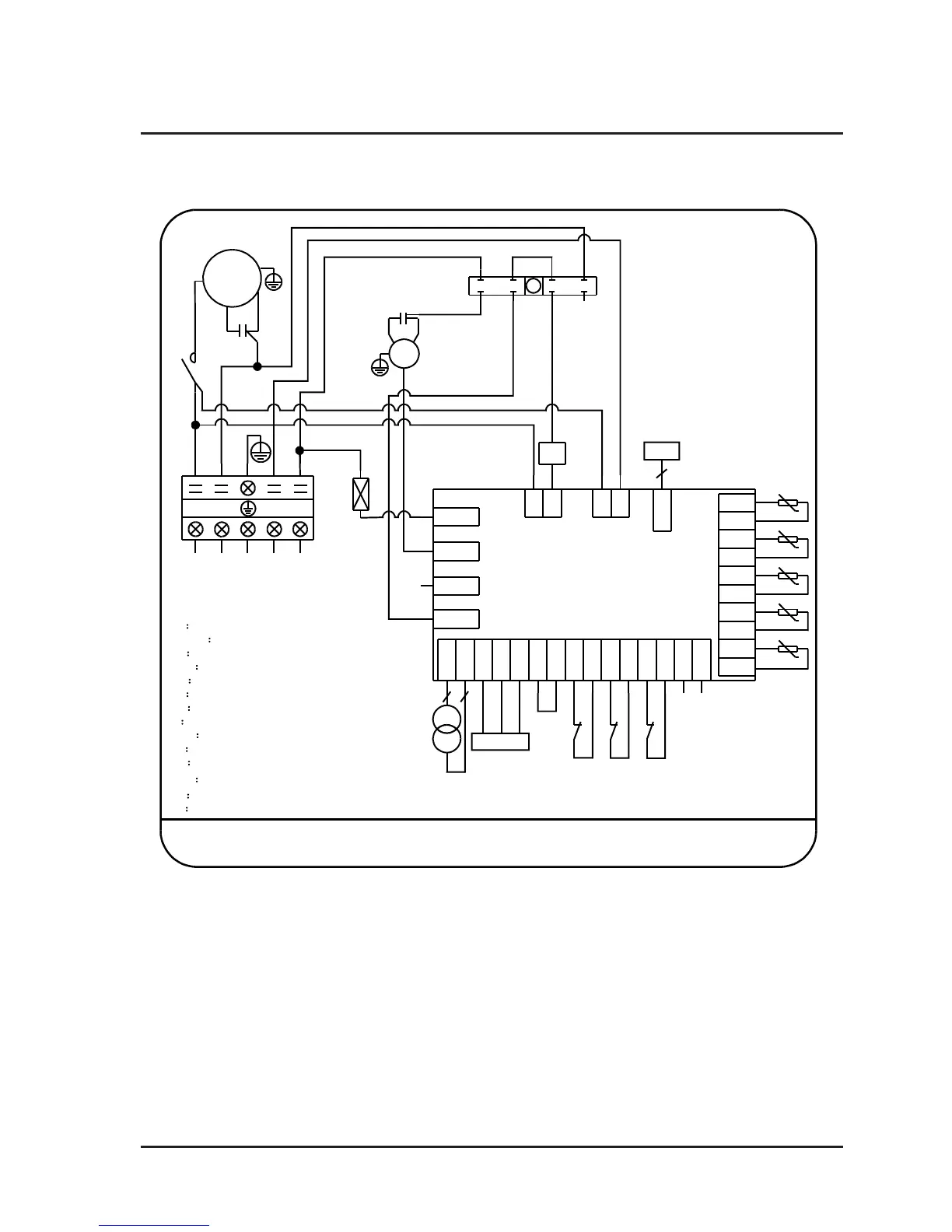

6.2 Wiring Diagram
FM
C2
BLK BLU
RED
Controller
TO POWER
SUPPLY
TO PUMP
COMP
208-230V~ /60Hz
CC CR
CS
BLK
RED WHT
CS CR
BLK WHT
P
4V
L1 L2
1 2
C1
KM1
CC
OUT1 OUT2
OUT3
OUT4
AC-N
3 4 3 4
CN19
GND
T5
GND
GND
GND
T2
CN1 CN2
12V
NET
GND
KYIN
GND
HTP
GND
LP
GND
HP
GND
TIME
GND
PC1000
OUT5
GND
T1
T4
T3
FS HPLP
BLU
Y/G
BRN
t
5K
t
5K
t
5K
t
5K
4V
KM1
L1
2 2
IT
IT
OT
OT
AT
AT
FS FS LP LP
HP HP
CT
CT
RED
L1
K1
P
L2
L1
L2
1
3
2 4
5
6
7
8
01
L2
TC
12V
HP50A
CC
4V
L2
L2 L2
L2
L2
L2 L2
L2 L2
L2 L2
L2
L1
L2
t
5K
SUT
SUT
EEV
5
AT
Ambient temperature
COMP
Compressor
CT
Coil temperature
FM
Fan motor
IT Inlet water temperature
LP
Low pressure protection
OT
Outlet water temperature
4V
4 way valve
FS
Flow switch
TC
Transformer
HP
Highpressure protection
SUT
Suction temperature
EEV
Electronic expand valve
KM1
Contactor of compressor
L1
