6

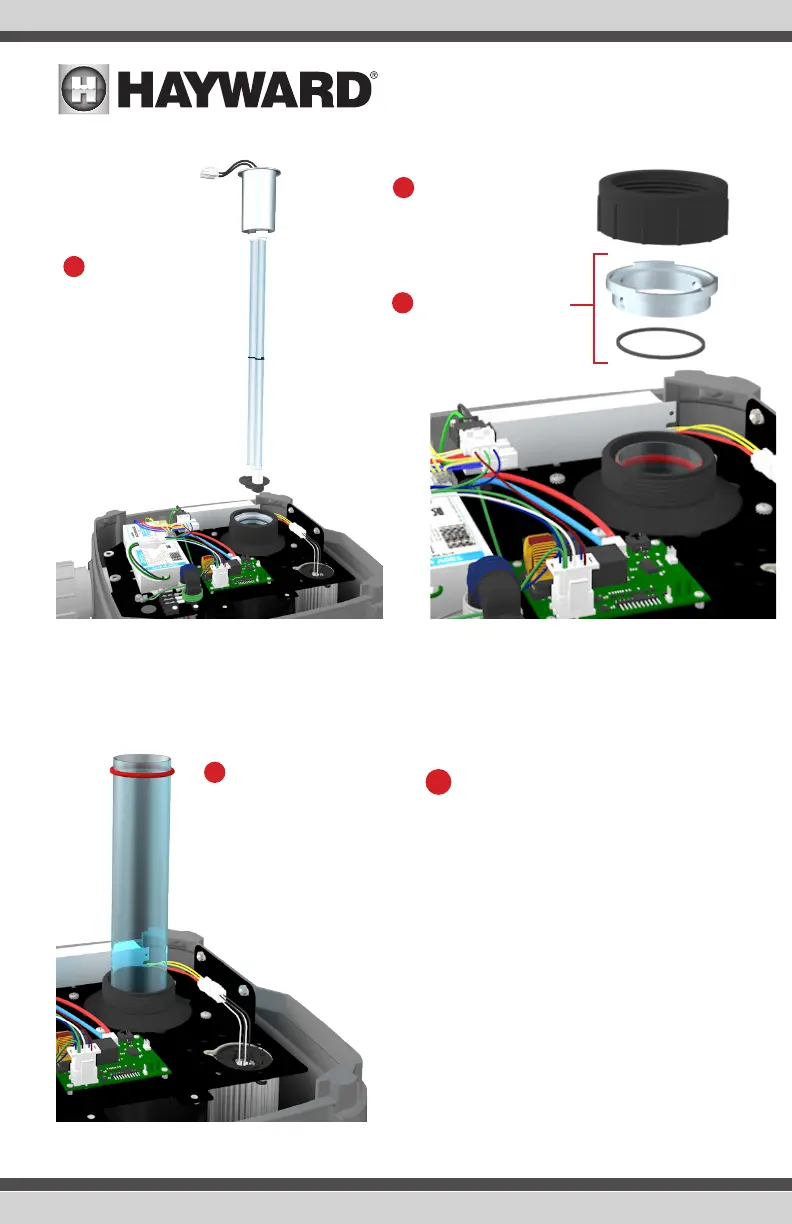

Carefully lift the lamp
assembly, including
lamp holder, do not
pull excessively on the
lamp wires.
7
Turning counter-clockwise,
unscrew the round sealing
nut.
8
Remove the aluminum
compression washer
making sure not to lose
the black gasket.
9
Grip quartz tube with
both thumbs inside and
pull up. Once the O-ring
breaks free, the quartz
tube should lift out easily.
9
First, remove O-ring and discard. Use shower/
tub cleaner, CLR or equivalent, or a solution of
white vinegar and water to clean the outside/
inside of the quartz tube. The quartz tube must be
completely dried and clear of residue, replace with
new O-ring before reassembly.
NOTICE: Do not touch the glass part of the lamp as body oils will create hot spots & greatly shorten
lamp life. Inspect the quartz tube carefully for any cracks or chips and replace the quartz tube if any
are found. Do not use any other O-ring for sealing the quartz tube. Never use any type of lube or seal-
ing agent. Doing so can result in a leak and possibly damaging the UV unit.
10
CAUTION: Do not use tools on the quartz
tube. Wear gloves to protect your hands in
case the tube breaks.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
10
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
