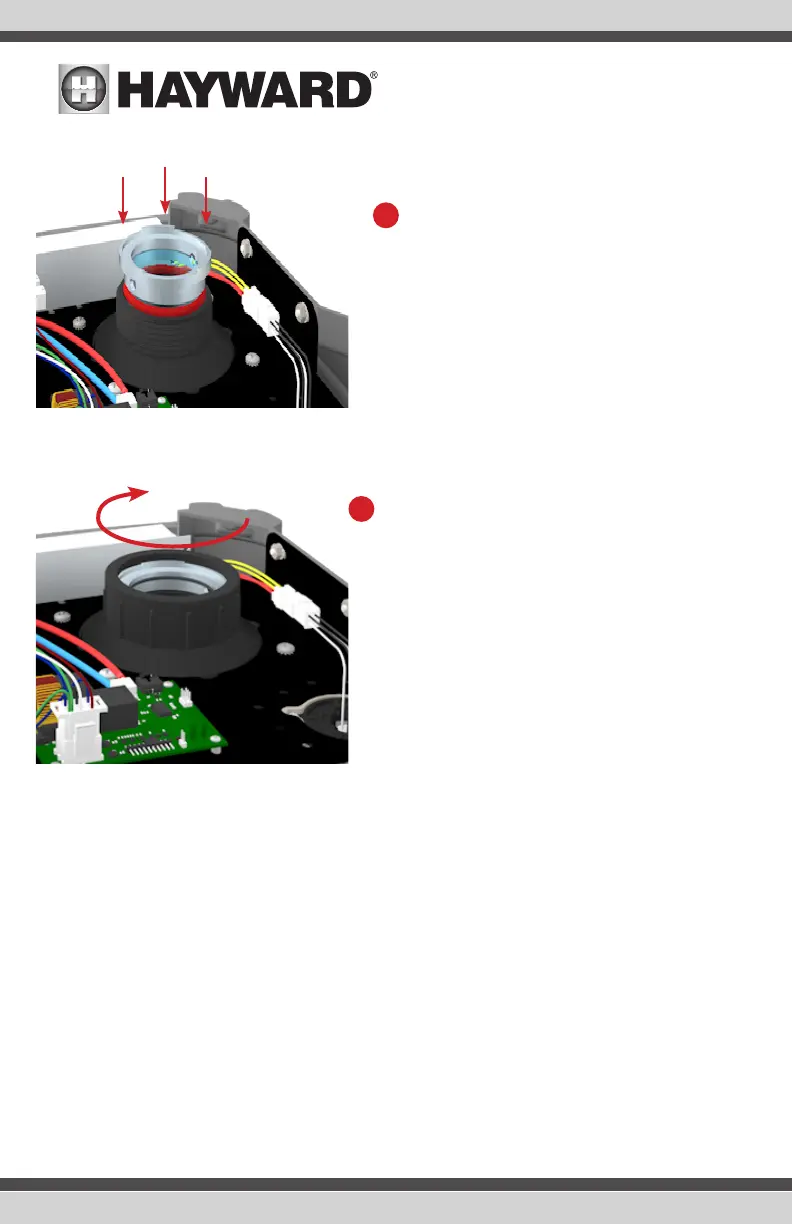

Gently lower the quartz tube into the unit until the O-
ring makes contact with the top of the black threaded
sealing sleeve. Then place the aluminum compression
washer and gasket on the quartz tube. Press down
on the aluminum compression washer with an even
steady pressure. Lift aluminum washer and check to
make sure it is seated evenly around the circumfer-
ence of the quartz tube. Replace aluminum washer.
Press down evenly
12
Screw on the quartz sealing nut to hand tight plus ½ turn.
Turn pump on to check for leaks.
Confirm that there are no leaks then turn off pump.
Carefully replace lamps, spring clip and connect lamps to
ballast.
Reattach electronics cover and the lid. Turn power on to
unit and turn pump on.
CAUTION: Do not stand over the unit when it is under
pressure or when the pump is on.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
