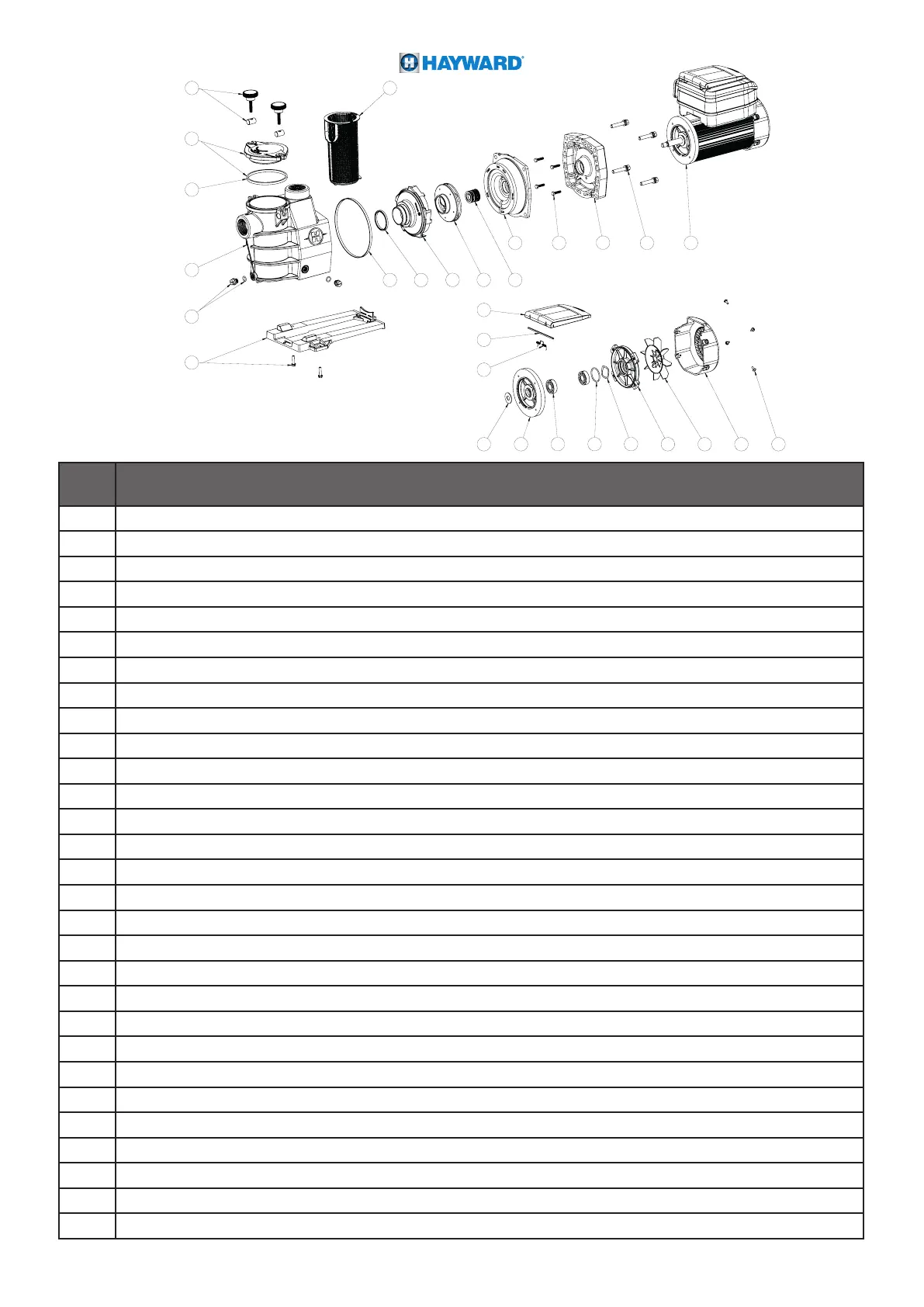

Hayward MAX FLO VS - Page 18

Ref.
No.
Description
1 Swivel nut + Hand knob assembly
2 Strainer cover + Lid gasket
3 Lid gasket
4 Pump Housing/Strainer
5 Drain Plug + O-ring
6 Mounting bracket
7 Strainer basket
8 Housing gasket
9 Diffuser gasket
10 Diffuser
11 Impeller
12 Seal assembly
13 Seal plate
14 Motor cap screw
15 Motor mounting plate
16 Housing screw
17 Motor
18 Control Box Flap
19 Spindle Ø4*126
20 Torsion Spring Ø0.7*43.5
21 Wiper Ring
22 Front End Cover
23 Bearing
24 O-Ring
25 Corrugated Gasket
26 Rear End Cover
27 Plastic Wind Blade
28 Motor Wind Blade Cover
29 Anti-slip Screws
11
12
13
14
15
16
17
29
28
27
26
25
24
18
19
23
20
2221
6
5
4
10
98
7
3
2
1
