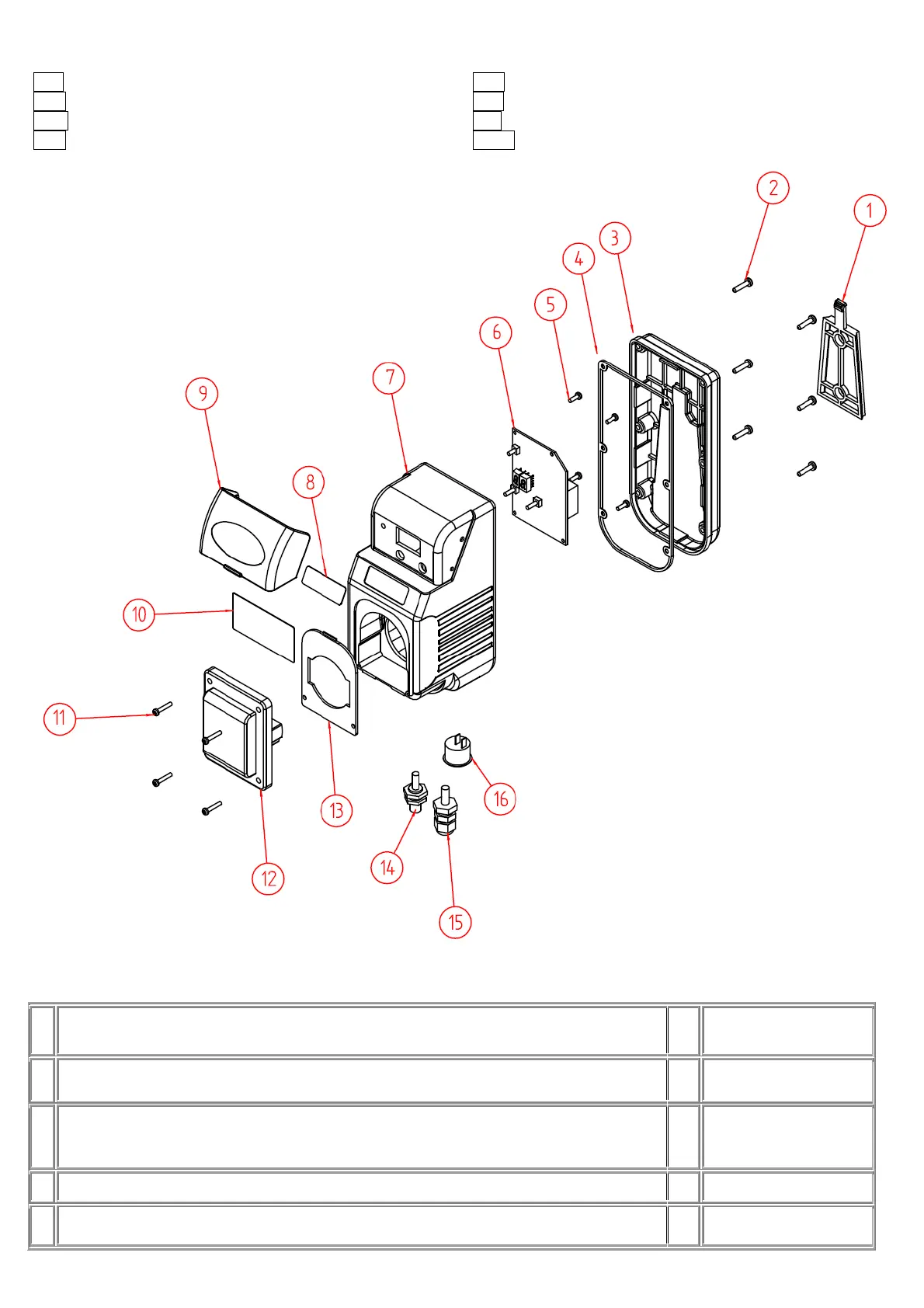

Hayward POOL Rx Socket - Exploded View

Rev. 1.0 Cod. 00.009.097
26
FR VUE ECLATEE DE ZERLEGTE ZEICHNUNG
UK EXPLODED VIEW NL EXPLODED VIEW
ES DIBUJO IT ESPLOSO
PO VISTA EXPANDIDA PYC СОСТАВНЫЕ ЧАСТИ
FR Description / UK Description / ES Descripción / PO Descrição / DE
Beschreibung / NL Beschrijving / IT Descrizione / PYC ОПИСАНИЕ
N°
Code / Código /
Codice / код
1
Support de pompe / Pump’s bracket / Soporte de bomba / Suporte da bomba /
Pumpenunterstützung / Pompondersteuning / Supporto pompa / Поддержка насоса
1
11.100.018
2
Vis TC+3,5x16 / 3,5x16 TC+ screw / Tornillo TC+ 3,5x16 / Parafuso TC+ 3,5x16 /
Schraube TC+ 3,5x16 / Schroeven TC+ 3,5x16 / Vite TC+ 3,5x16 / Винт ТС + 3,5 x 16
нержавеющий
6
00.030.024
3
Couvercle / Cover / Cubierta / Cobertura / Deckel / Deksel / Coperchio / Крышка
1
00.010.206
4
Joint de couvercle / Gasket / Junta / Guarnição / Gummidichtung / Pakking / Guarnizione /
Прокладка крышки
1
00.027.046
