USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 28 of 36 Super Pump VS Pump IS2603VSP Rev-A
9.6. Replacing the Motor Assembly
13. Slide the motor assembly, with the diffuser in place, into pump/strainer housing, being careful not to disturb the
diffuser gasket.
14. Fasten assembly to pump/strainer housing using the four (4) 3/8" x 2" bolts. (Be sure housing gasket is in
place, and lubricated. Replace if damaged). Tighten bolts alternately and evenly to 80 inch-pounds. Looking at
the back of the pump, start with the top right, move diagonal to the bottom left, then up to the top left and last
across to the bottom right.
10. Replacement Parts

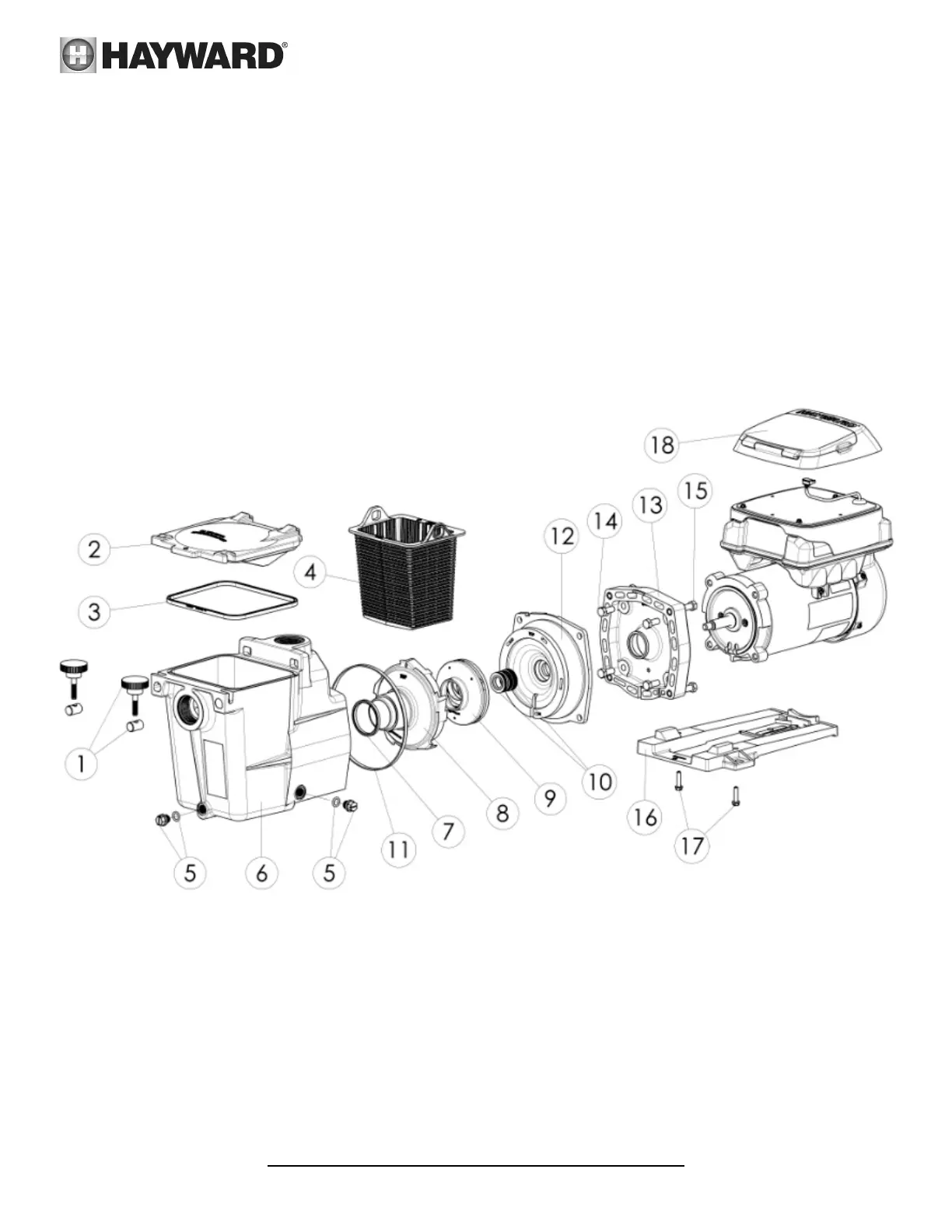

10.1. Parts Diagram
Figure 10.1-1
