Electrical Wiring
The Water Bowl's LED Light requires the use of a low voltage transformer (not included). See chart
below to determine the type of transformer you will need based on the number of LED Lights used.
When considering the number transformers required, note that one LED Light is 25W and the load
on a transformer should not exceed 80% of the maximum wattage.
Number of Lights Type of Transformer
1-2 70W
3-9 300W
10+ Multiple Transformers
NOTE: Any lights wired to the same transformer will run together. If independent operation is
desired, then each light or group of lights will require their own separate transformer and relay.
Wiring Overview

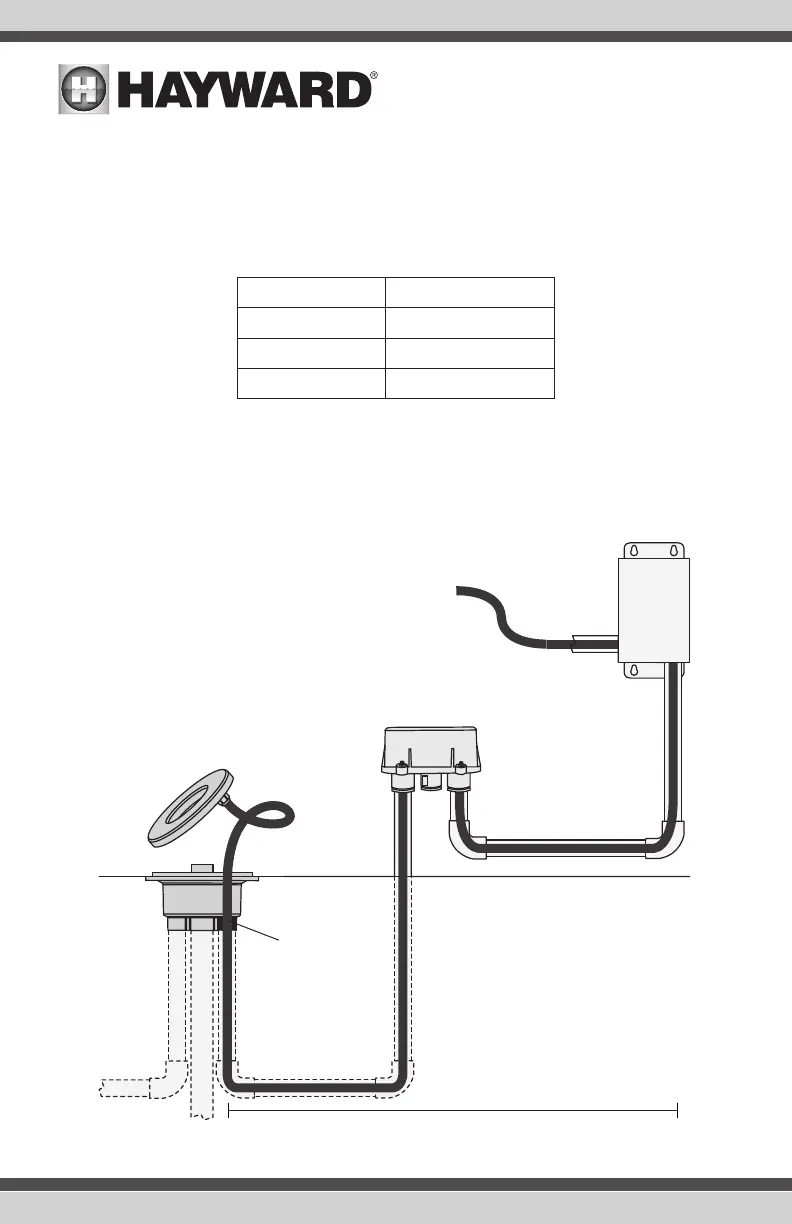

Refer to the wiring overview diagram below and the steps on the following pages for wiring instruc-
tions.
Total distance of cable between LED Light
and Transformer should not exceed 150 feet.
Service Loop
Grommet
LED Light
Assembly
High Voltage from
Manual Wall Switch
Or
Omni Control Relay
Hayward
LJBUY00PP1
Junction Box
Low Voltage
Transformer
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
