Step 4: Power Control Wiring
When wiring to a wall switch, follow the directions in the manual provided with that product. When
wiring to an Omni control relay or an Omni Smart Relay, refer to the graphics below. Be sure to follow
all NEC and local codes when wiring.
Hot (black)
Connection to transformer
Neutral (white)
Connection to transformer
Ground (green)
Connection to transformer

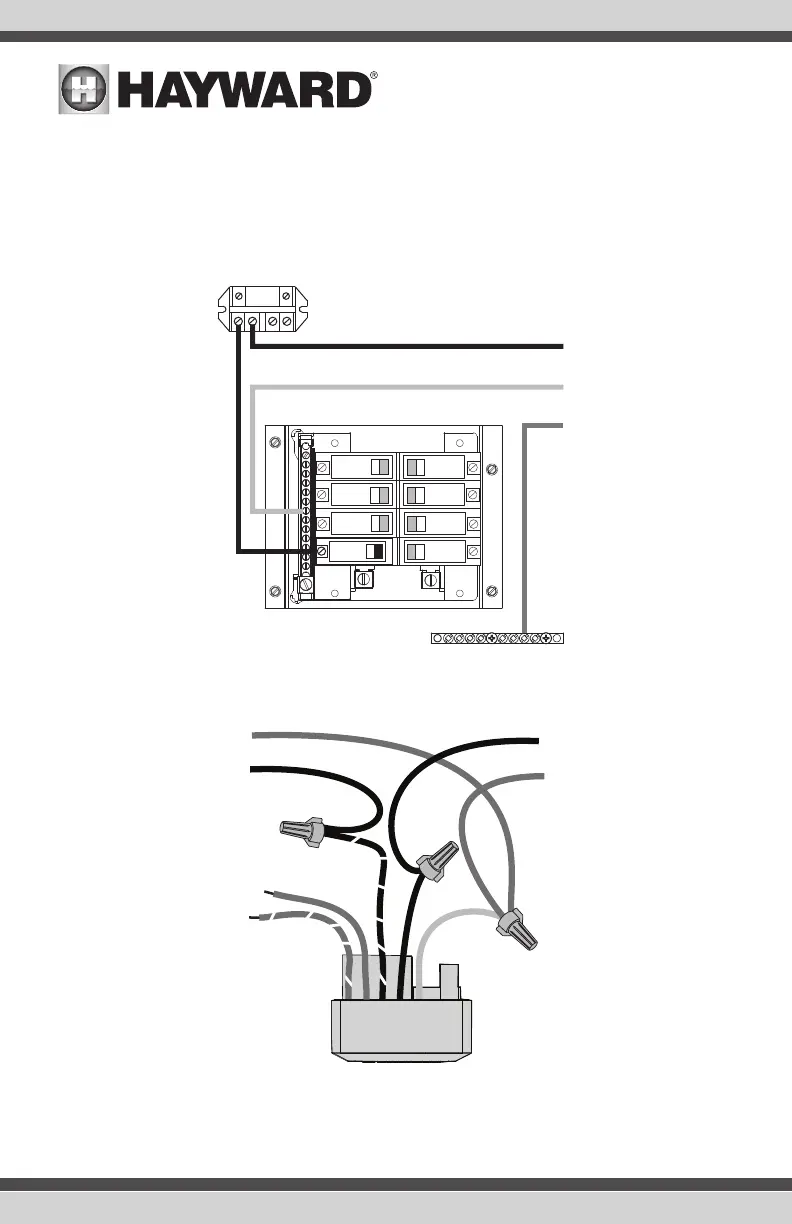

Omni Standard Relay Wiring
Omni Smart Relay Wiring
Neutral
Line 1 in
Load 1 out
Neutral
Black/White
Black
Red
Red/White
Gray
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
