USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
5

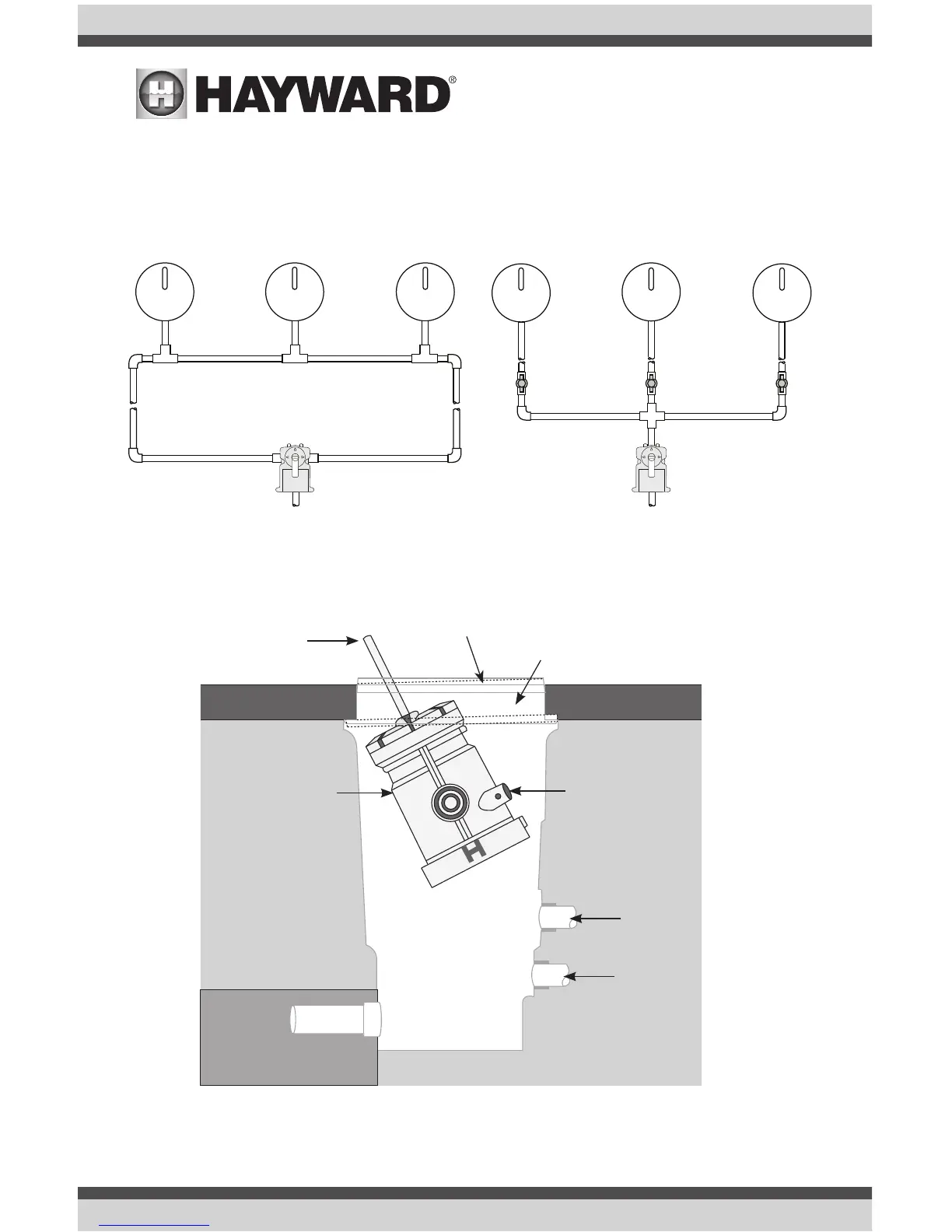

Use loop for laminars plumbed at the same distance. Use individual valves for laminars at different distances.
Sub System
NOTE: If finite control is desired, be sure to install an in-line flow control valve to adjust the height
and flow of the water. See images below.
Deck Niche Overview
NOTE: A gravel pit must be available to allow for drainage. The lack of a gravel pit may disturb
permanently installed niche and cause cracks in pool deck.
Deck Material Deck Material
Adjustable Deck
Collar for angle
correction
Adjustable Deck Lid
for up to 3/8” in
height adjustment
Water Stream
Water Inlet to Jet
Laminar Jet
1” Electrical Inlet
1” Water Inlet
Drain
Gravel Pit
Earth Earth
4”-6” length
