HBX CPU-1000 HVAC Controller
Version 1.38
© HBX Control Systems Inc. 2012
Introduction 3 /6 Page 3
GENERAL TECHNICAL DATA
Input Voltage:
120 VAC, ± 10%, 60Hz
3 x Optically Isolated Inputs:
20 - 240 VAC
3 x Thermistor Inputs:
Boiler/System Sensors/Outdoor
3 x Pump Output Relays:
240VAC 10A
2 x Auxiliary Output Relays:
240VAC 10A
Standard Communications:
RS-232
Real Time Clock Battery:
Lithium-Ion
Microprocessor:
16Bit, 20MHz
Languages:
English
Graphic Display:
128 x 64 pixels (55mm x 28mm viewable area)
Weight:
0.95 KG (2.1 lbs)
Dimensions:
190mm W x 170mm H x 70mm D
ETL Listings:
Meets CSA C22.2 No. 24
Meets UL Standard 873
ETL Control No. 3068143
Storage:
+10ºC to +40ºC
All I/O (inputs and outputs) are both colour
coded and keyed indexed for
non-interchangeability

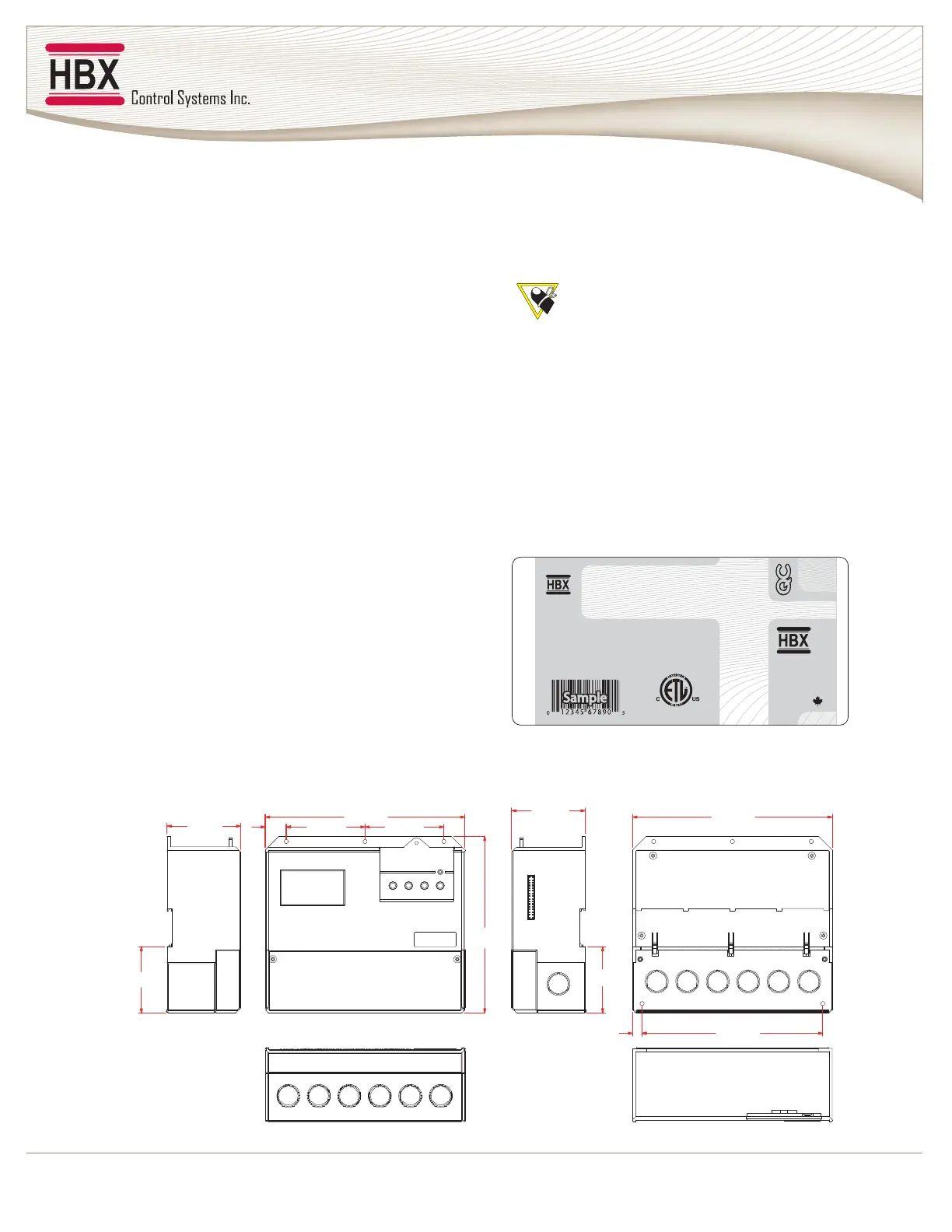

Nameplate Information:
The exterior label contains specific information unique
to your HBX HVAC Control and identifies some of the
basic features. The label displays the serial number
which will match the serial number on your actual
Control, the lot number, the bar code and the product’s
ETL number.
CPU-1000
Central
Processing Unit
CPU-1000
Central Processing Unit
Made In
Canada
Lot Number: 0000001
Serial Number: 0004-1204
Date: 12/21/04
Lot Number:
Serial Number:
Date:
3068143
V1.28
V1.28
V1.28
V1.28
V1.28
Side View Side ViewFront View Rear View
72mm
70mm 20 75mm 75mm
190mm 190mm
172mm9
63.2
168.2
63.2
Top ViewBottom View
