HCL HCMDLWBT21 User Manual

15.6" LCD Color Monitor HCL HCMDLWBT21&HCMDLWBN21
10

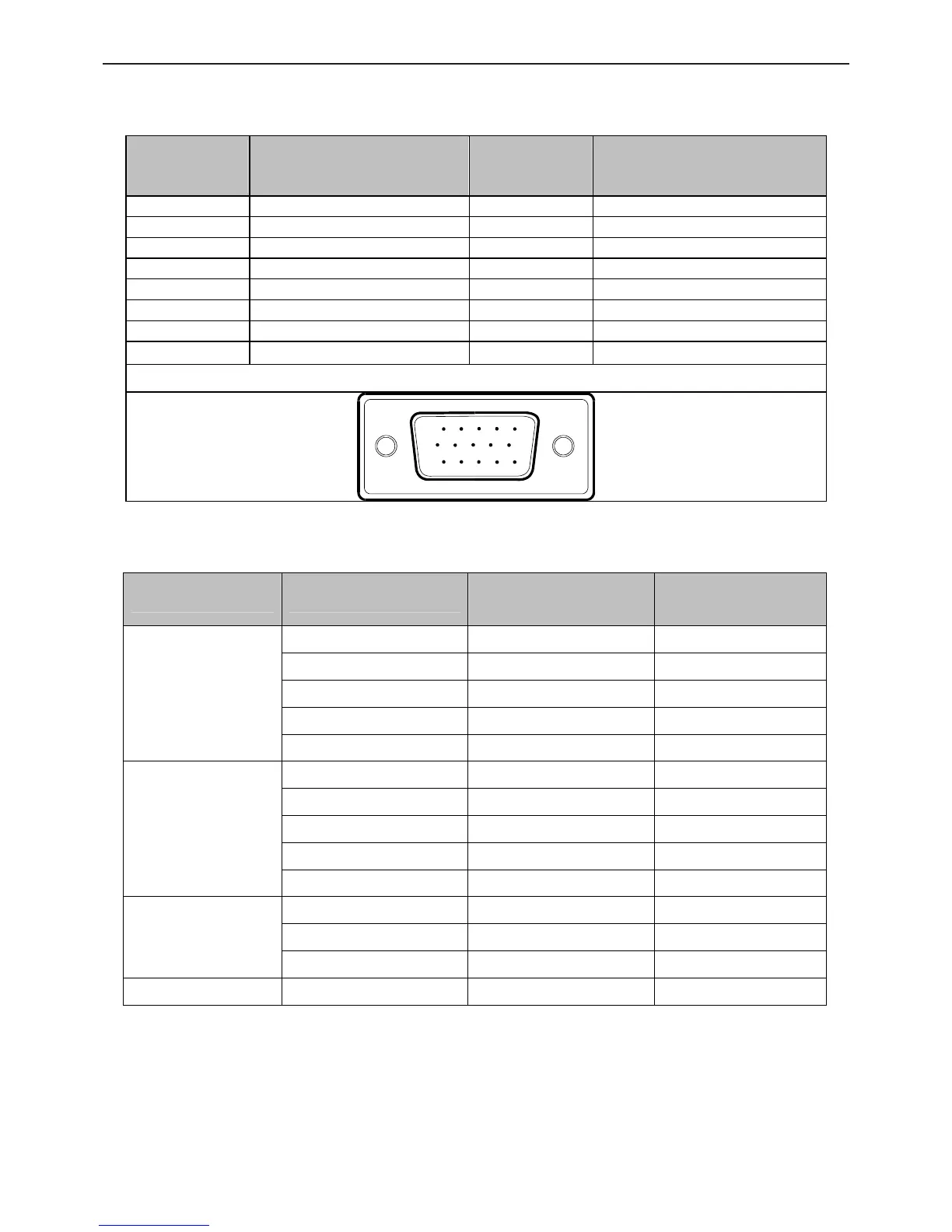

4. Input/Output Specification
4.1 Input Signal Connector
Pin No. Description Pi N No. Description
1. Red 9. +5V
2. Green 10. VGA-CON
3. Blue 11. RDX
4. TDX 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
15 - Pin Color Display Signal Cable
15
6
10
11 15
4.2 Factory Preset Display Modes
Stand Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
720 x 400 31.47 70.0
640 × 480 31.47 60.0
640 × 480 35.00 66.6
640 × 480 37.50 75.0
VGA
640 × 480 37.861 72.8
800 × 600 35.156 56.3
800 × 600 37.879 60.0
800 × 600 48.077 72.2
800 × 600 46.875 75.0
SVGA
832 x 624 49.725 75.0
1024 × 768 48.363 60.0
1024 × 768 56.476 70.0
XGA
1024 × 768 60.02 75.0
WXGA 1360 × 768 47.712 60.0
