3. Operation Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
• The power cord should be connected.
• Connect the Signal cable from the monitor to the VGA card.
• Press the power button to turn on the monitor position. The power indicator will light up.
3.2 Control Buttons

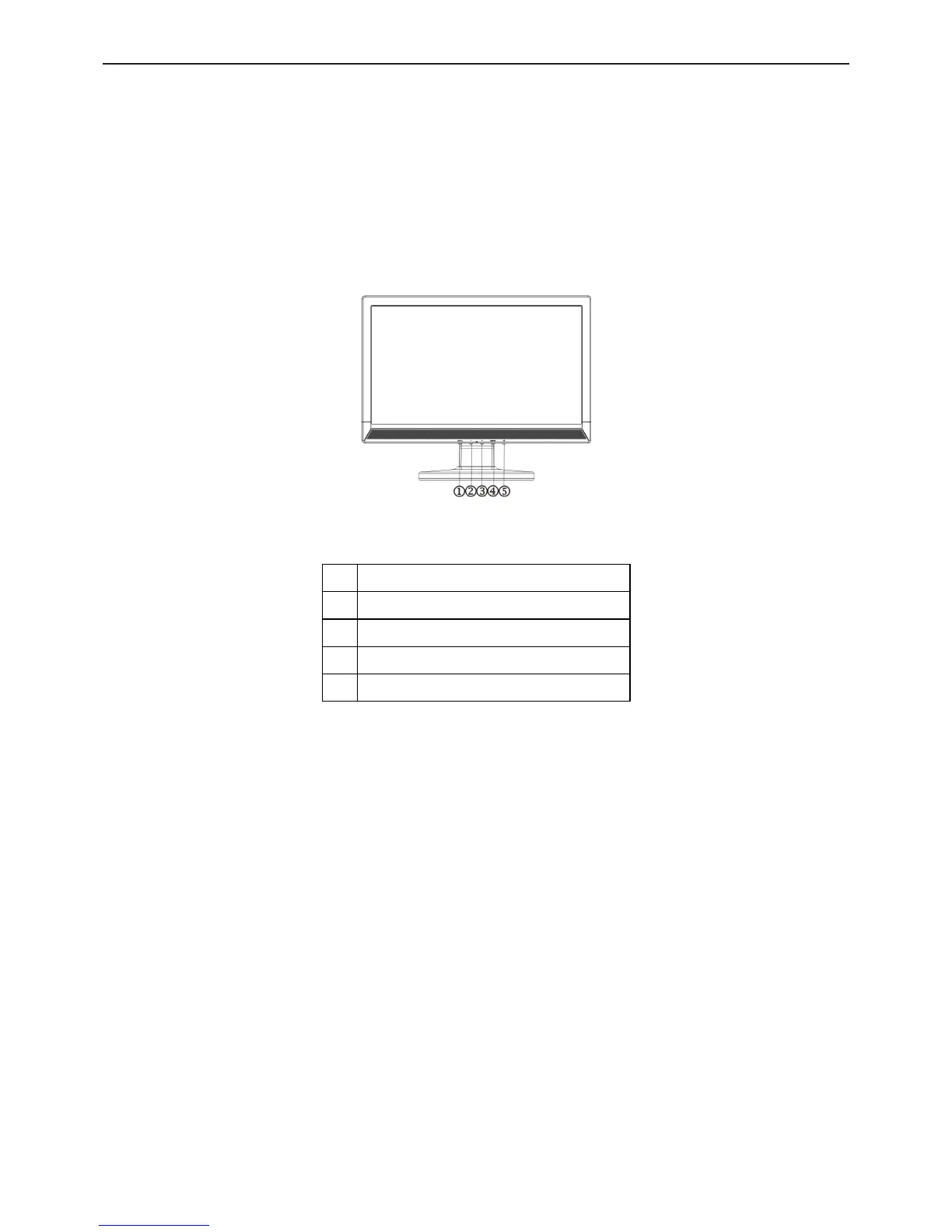

External Control Button
1. Auto Config / Exit
2. -/ECO
3. +/DCR
4. MENU / ENTER
5. Power Button
Front Panel Control
• Power Button /Power Indicator:
Press this button to switch ON/OFF of monitor’s power.
Green — Power On mode.
Orange — Power saving mode.
• MENU / ENTER :
Active OSD menu or function adjust confirm or Exit OSD menu when in volume OSD status.
• Contrast :
Adjust contrast or adjust function.
• Brightness :
Adjust brightness or adjust function.
• Auto Adjust button / Exit:
1. When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu).
2. When OSD menu is in off status, press this button to activate the Auto Adjustment function.
The Auto Adjustment function is used to optimized the HPos, VPos, Clock and Focus.
OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off
To Next Page
