15.6" LCD Color Monitor HCL HCMDLWBT21&HCMDLWBN21
11

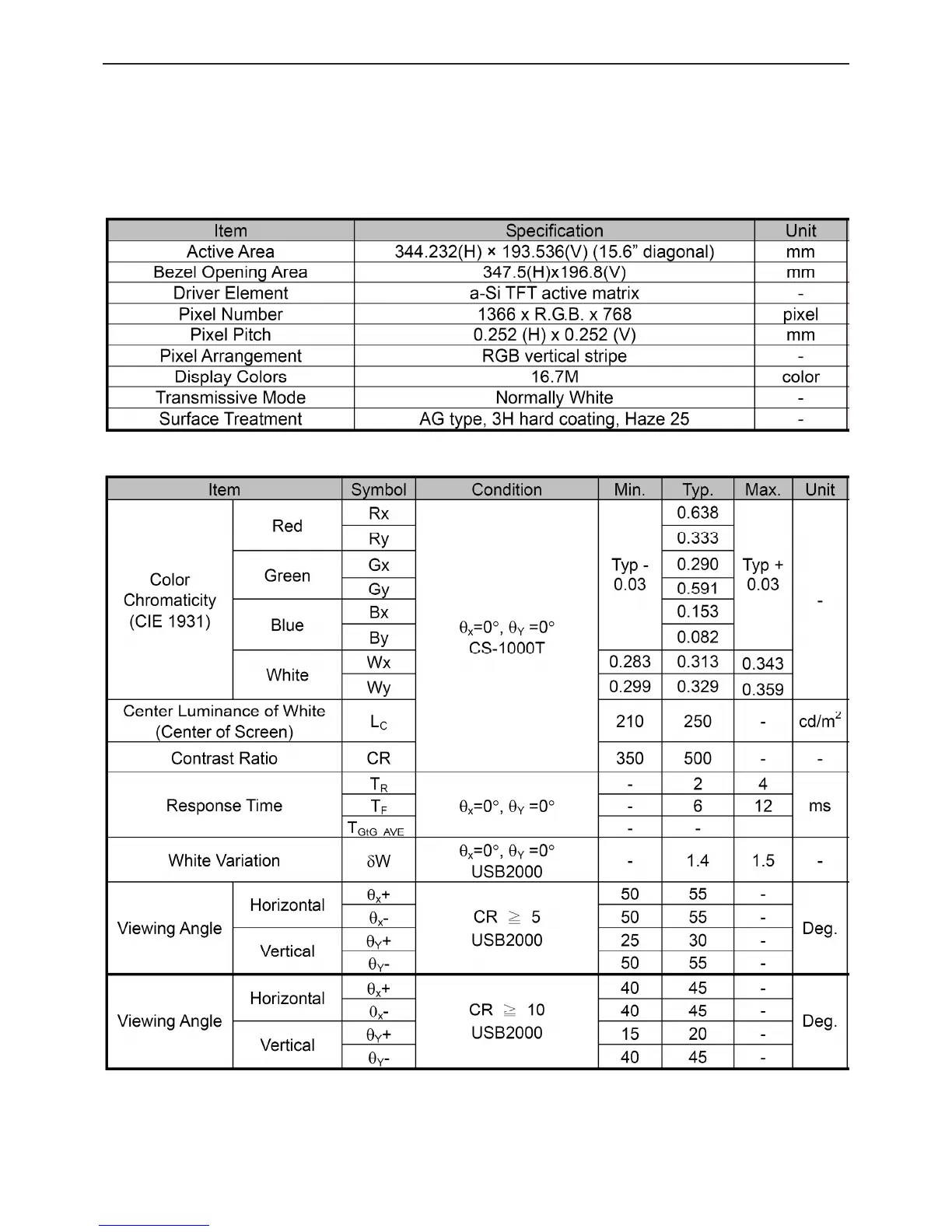

4.3. Panel Specification
4.3.1 General Feature
M156B1-L01 is a 15.6” TFT Liquid Crystal Display module with 2 CCFL Backlight unit and 30pin 1ch-LVDS interface.
This module supports 1366 x 768 WXGA mode and can display up to 16.7M colors.
The inverter module for Backlight is not built in.
4.3.2 Optical Characteristics
