FIELD WIRING
PART 6: FIELD WIRING (CONTINUED)

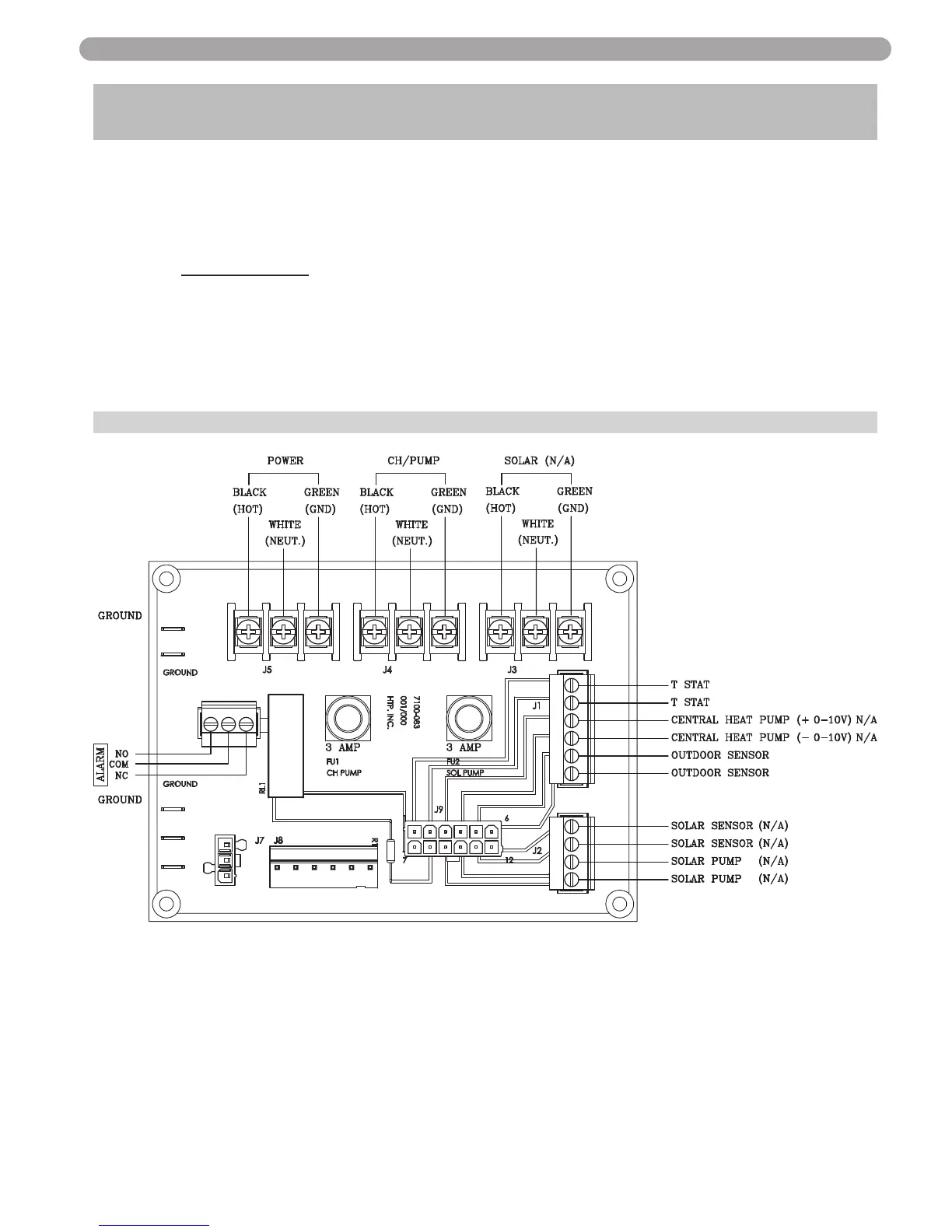

Fig. 6-1 Hydronic Heating Module
7100-083
11/03/09
E. FIELD CONNECTION BOARD
24
temperature accurately. Note: If the thermostat is equipped with an anticipator and it is
connected directly, the anticipator should be set at.1 amps. If the thermostat is connected to
other devices, the anticipator should be set to match the power requirements of the device it
is connected to. Refer to the instruction manuals of the connected devices for further
information.
3. The Outdoor Sensor must be connected for the unit operate at optimum efficiency. Use a
minimum 22 AWG wire for runs of 100 feet or less and minimum 18 AWG wire for runs of
up to 150 feet. Instructions are included with the outdoor sensor to correctly mount the
sensor on the exterior surface of the building. It is preferable the sensor be mounted on the
north side in an area that will not be affected by direct sunlight and will be exposed to
varying weather condition. Connect the outdoor sensor to terminals marked “Outdoor” in
Figure 6-1.
