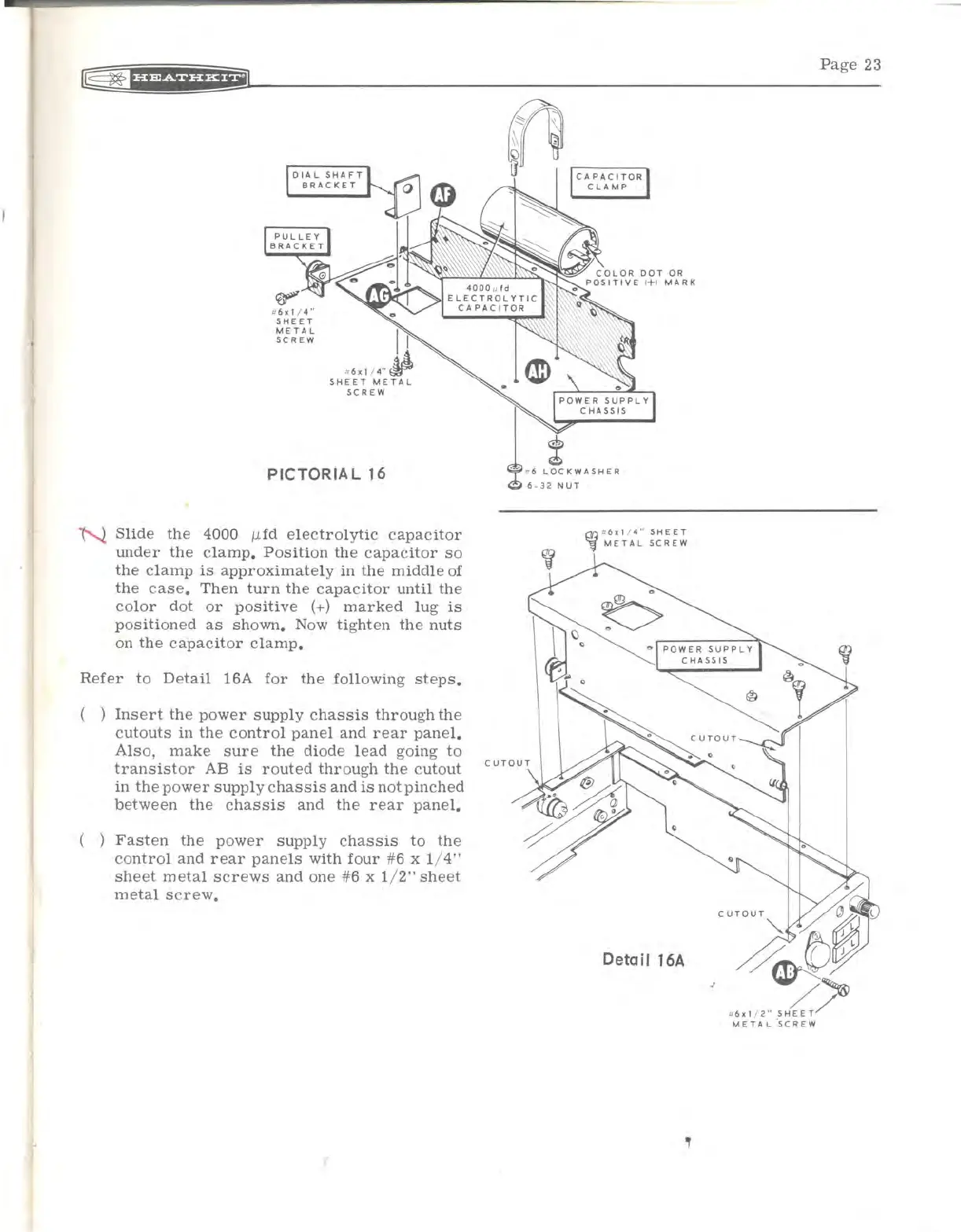

PICTORIAL 16
N Slide the 4000 µfd electrolytic capacitor
under the clamp. Position the capacitor so
the clamp is approximately in the middle of
the case. Then turn the capacitor until the
color dot or positive (+) marked lug is
positioned as shown. Now tighten the nuts
on the capacitor clamp.
Refer to Detail 16A for the following steps.
Insert the power supply chassis through the
cutouts in the control panel and rear panel.
Also, make sure the diode lead going to
transistor AB is routed through the cutout
in the power supply chassis and is not pinched
between the chassis and the rear panel.
Fasten the power supply chassis to the
control and rear panels with four #6 x 1/ 4"
sheet metal screws and one #6 x 1/2" sheet
metal screw.
I
~.----~
~] r CAPACITOR
CLAMP
..• < 6 LOCKWASHER
6-32 NUT
y
@ # 6x1 / 4" SHEET
\j METAL SCREW
Detail 16A
