Place
the
center
panel
assembly
inside
the
main
chassis
assembly
as
shown.
( )
Fasten
the
circuit
board
to
the
power
sup-
ply
chassis
with
three
4-40
x
1/4"
self-
tapping
screws
and
#4
lockwashers.
Be
careful
not
to
overtighten
these
screws.
This
could
strip
the
threads
in
the
panels.
( )
Install
#6 x
1/
4"
sheet
metal
screws
at
locations
BF,
BG,
AS,
and
AT.
( )
Install
a #6 x
1/2"
sheet
metal
screw
at
location
AU.
( )
Install
a
6-lug
terminal
strip
at
location
AX
with
a #6 x
1/4"
sheet
metal
screw
and
a #6
lockwasher.
Put
the
lockwasher
under
the
terminal
strip
mounting
foot.
Refer
to
Detail
18A
for
the
following
steps.
( )
Position
the
2-lug
screw-type
terminal
strip
with
the
tabs
pointed
down
as
shown.
Then
install
the
short
end of two
L-brackets
to
the
terminal
strip.
Use
6-3.2 x
1/
4"
screws,
#6
lockwashers,
and
6-32
nuts.
Do
not
tighten
the
screws
yet.
( ) Mount
the
terminal
strip
to
the
support
plate
at
AY.
Use
#6 x
1/4"
sheet
metal
screws.
Now
tighten
the
two
screws
on
the
ter-
minal
strip.
Refer
to
Pictorial
19
for
the
following
step.
( ) Mount
the
remaining
circuit
board
on
the
chassis
so
the
number
(85-137) on
the
foil
side
is
positioned
as
shown.
Use4-40xl/4"
self-tapping
screws
and
#4
lockwashers.
Be
careful
not
to
overtighten
these
screws;
this
could
strip
the
threads
in
the
panels.
I
Detail

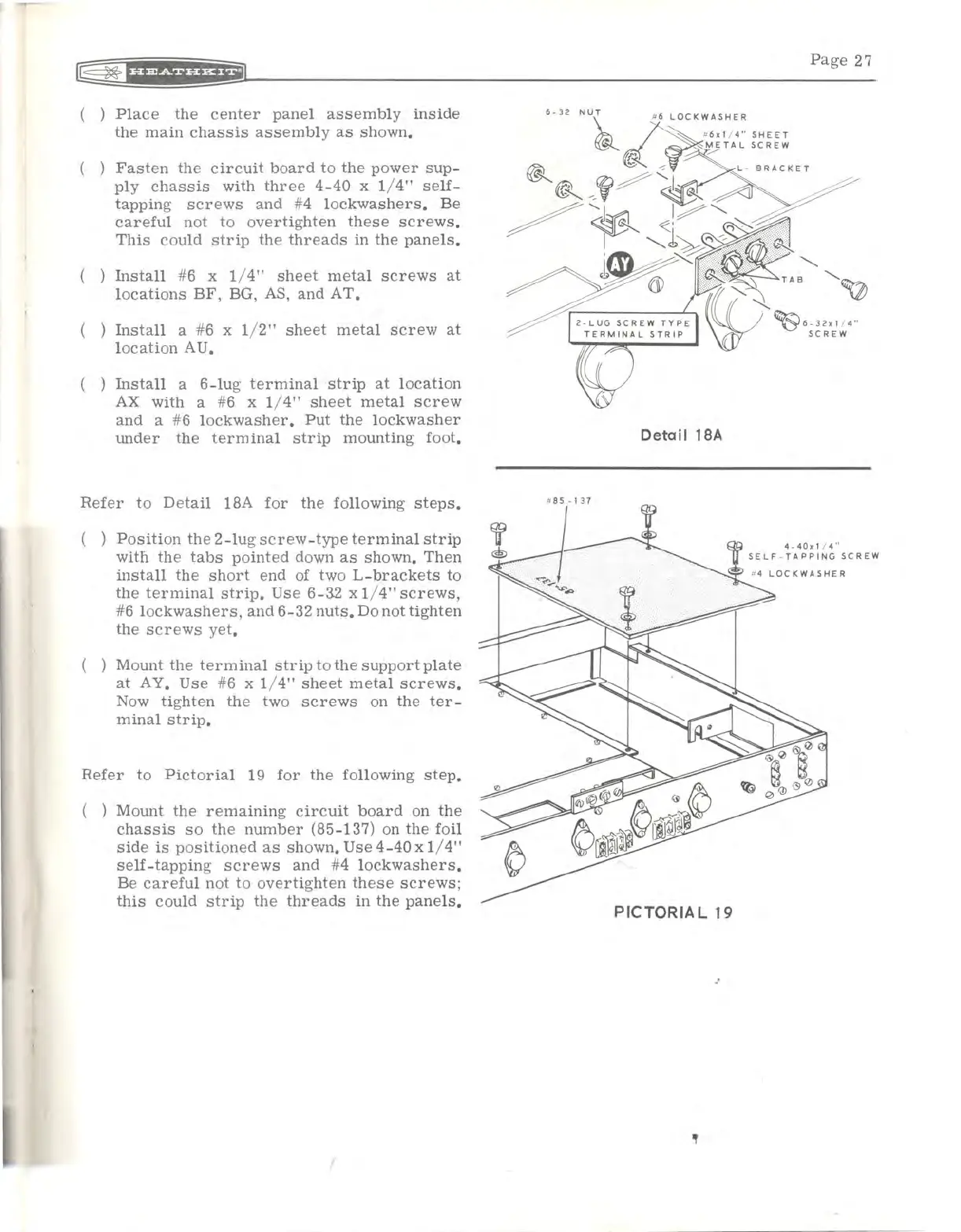

18A
#
85-137
PICTORIAL
19
Page
27
4-40x1
/
4"
SELF-TAPPING
SCREW
