~~Hf
Miff
HP
0
RED
CENTER
PANEL
.
Page
35

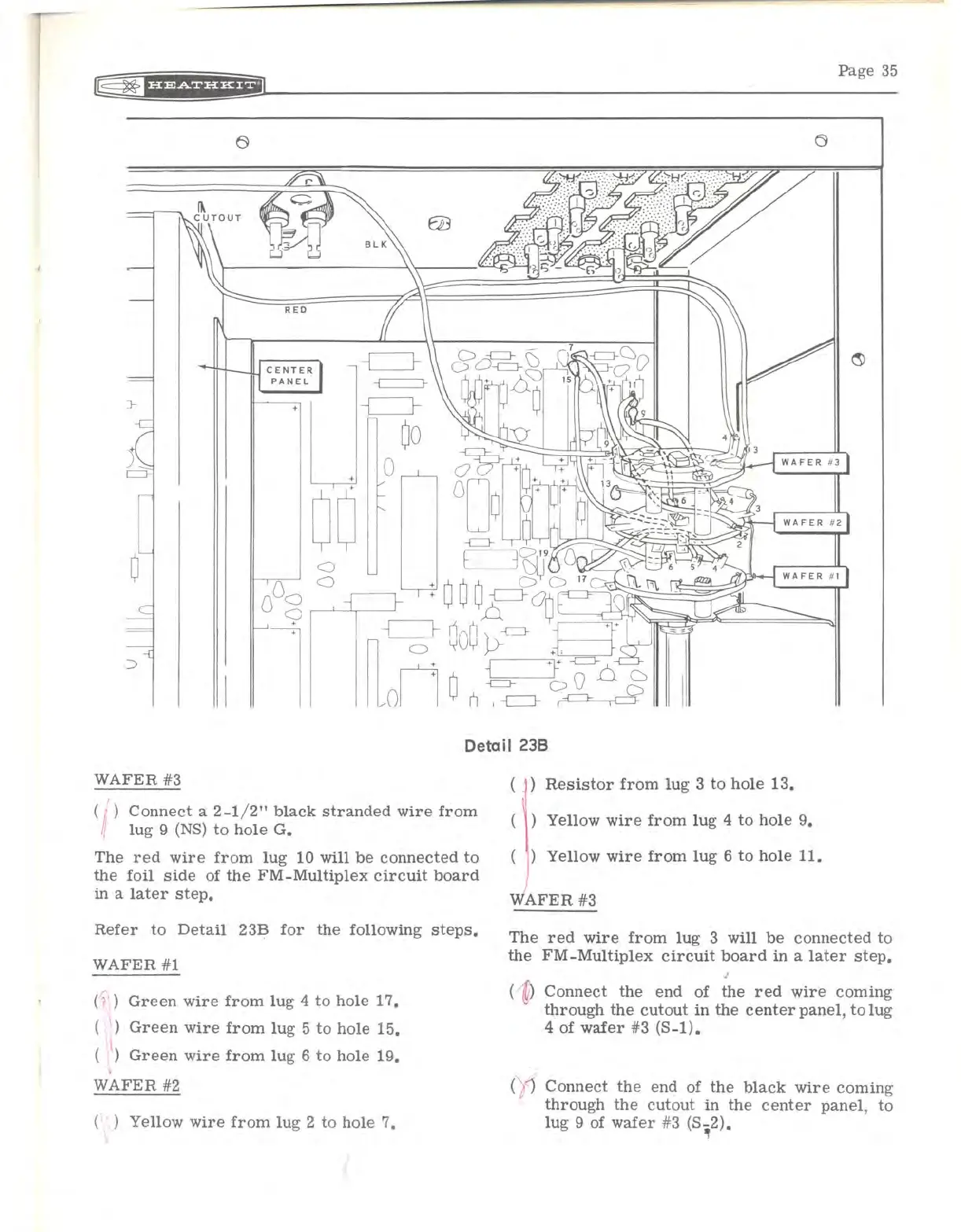

Detail
23B
WAFER#3
(
/,
)
Connect
a
2-1/2"
black
stranded
wire
from
1
lug
9
(NS)
to
hole
G.
The
red
wire
from
lug
10
will
be
connected
to
the
foil
side
of
the
FM-Multiplex
circuit
board
in
a
later
step.
Refer
to
Detail
23B
for
the
following
steps.
WAFER
#1
()
' )
Green
wire
from
lug
4
to
hole
17.
( )
Green
wire
from
lug
5
to
hole
15.
(
1
)
Green
wire
from
lug
6
to
hole
19.
\
WAFER
#2
( ) Yellow
wire
from
lug
2
to
hole
7.
f
( . )
Resistor
from
lug
3
to
hole
13.
( ) Yellow
wire
from
lug
4
to
hole
9.
( ) Yellow
wire
from
lug
6
to
hole
11.
WAFER
#3
The
red
wire
from
lug
3
will
be
connected
to
the
FM-Multiplex
circuit
board
in
a
later
step.
J
Connect
the
end
of
the
red
wire
coming
through
the
cutout
in
the
center
panel,
to
lug
4 of
wafer
#3
(S-1).
()
<5
Connect
the
end
of
the
black
wire
coming
·
through
the
cutout
in
the
center
panel
,
to
lug
9 of
wafer
#3 (S~2).
