Page
49
FINAL
ASSEMBLY
Refer
to
Pictorial
29
for
the
following
steps.
( )
Install
#6 x
1/
4"
sheet
metal
screws
at
BH
and
BJ.
( )
Install
6-32
x
3/8"
self-tapping
screws
at
BR
and
BS.
These
screws
fasten
into
the
transformer
shield.
( ) Mount
plastic
feet
at
BK
and
BL
with #6
x
1/4"
sheet
metal
screws.
Do
not
over-
tighten
the
screws.
( )
Position
the
bottom
panel
on
the
chassis
with
the
cutouts
and
two
center
mounting
holes
as
shown.
Fasten
the
bottom
plate
to
the
chassis
with
ten
#6
x
1/4"
sheet
metal
screws.
I
I
6-32x3
/
8"
o
6x1
/
4"
SH
SELF-TAPPING
METAL
S.C
SCREW
"
Cxl
4"
SHEET
METAL
SCREW
~
PLASTIC
FOO
( ) Mount
plastic
feet
at
BN
and
BP
with #6
x
1/4"
sheet
metal
screws.
Do
not
over-
tighten
the
screws.
( )
Remove
the
backing
paper
from
the
blue
and
white
identification
label.
Install
the
label
on
the
bottom
panel
near
location
BP.
( ) Mount
the
input
shield
to
the
end
panel
with
#6 x 1/
4"
sheet
metal
screws.
IDENTIFICATION
LABEL
>6x1
/
4"
SHEET
METAL
SCREW

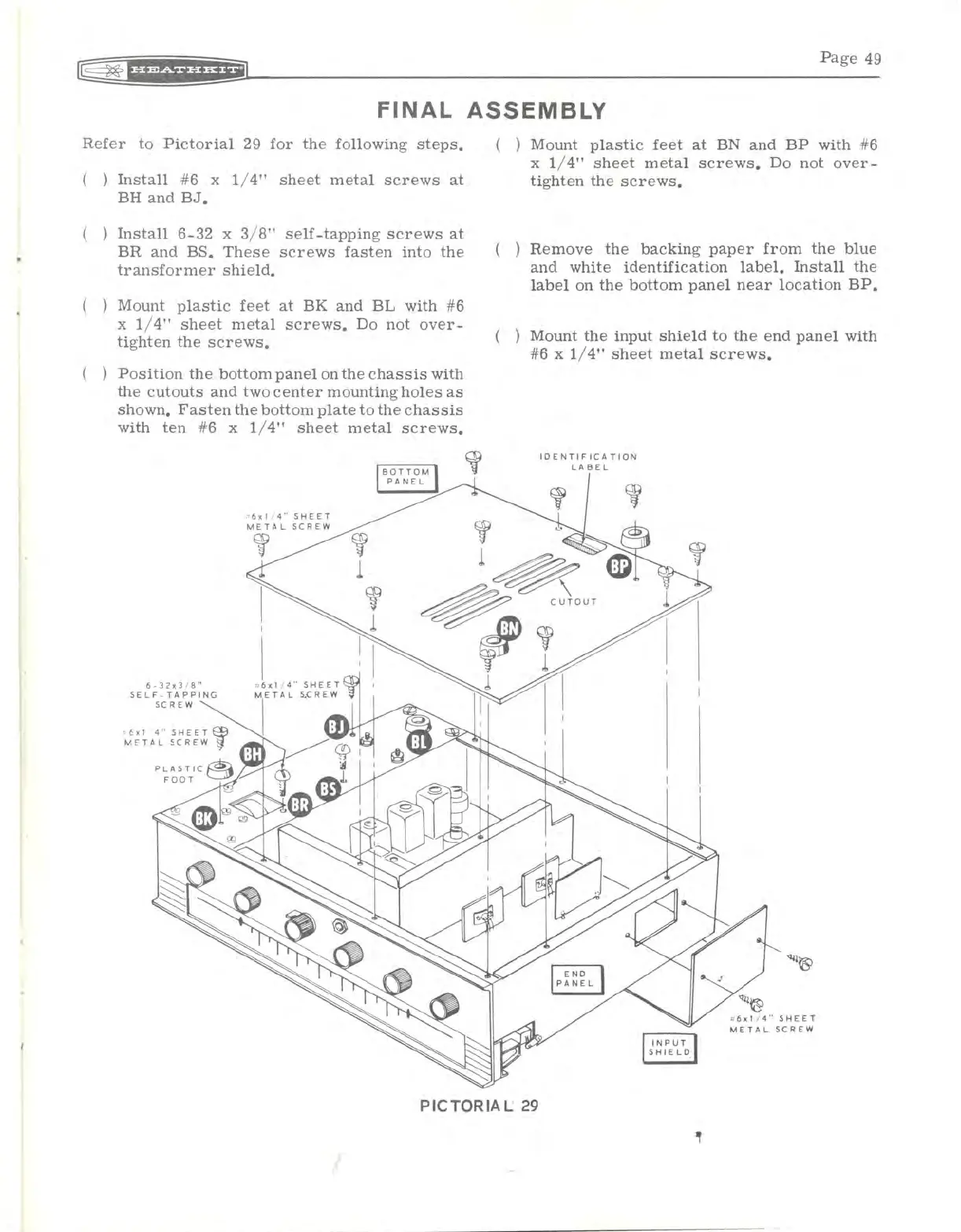

PICTORIA l
29
