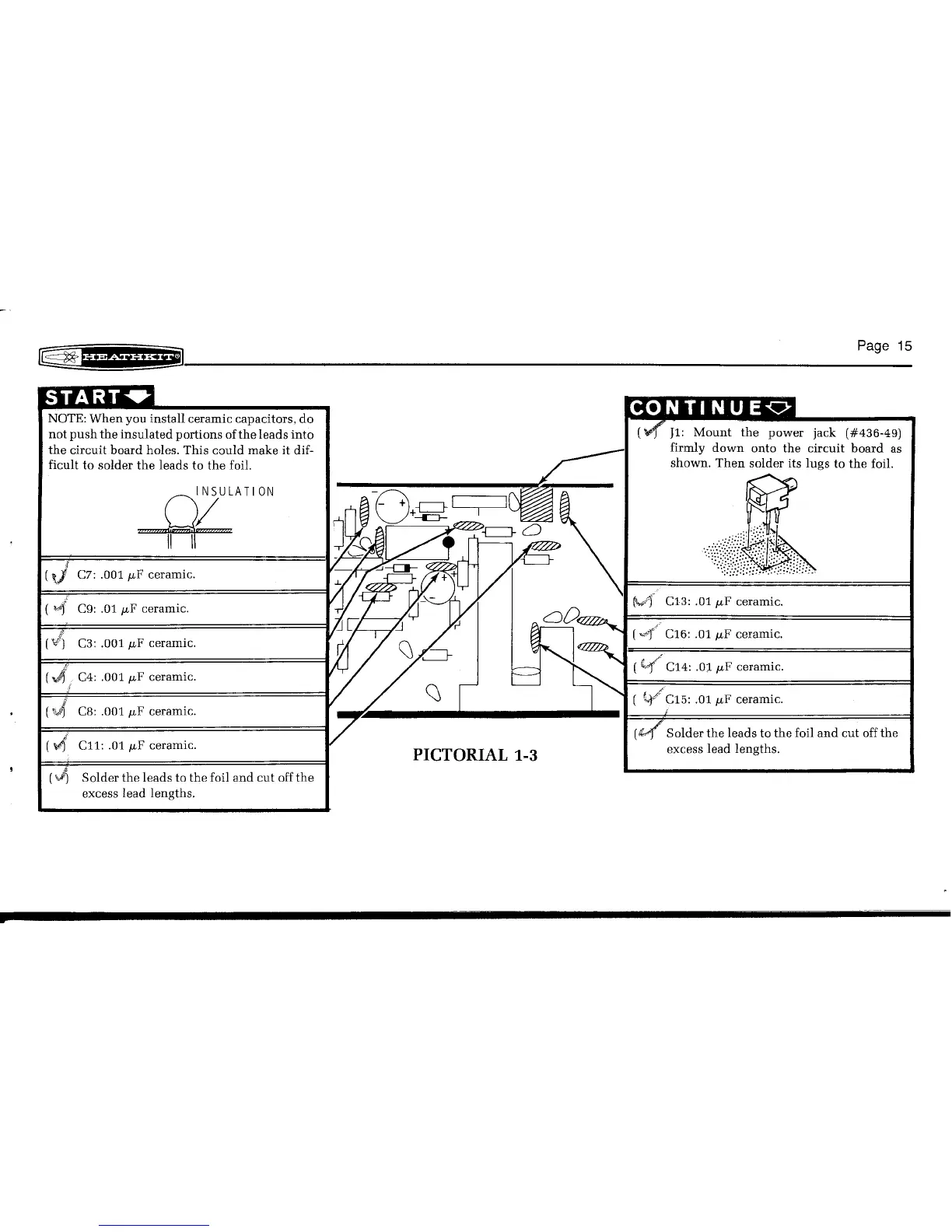

~, pa_g_e_15
NOTE: When you install ceramic capacitors, do
not push the insulated portions ofthe leads into
the circuit board holes. This could make it dif-
ficult to solder the leads to the foil.
n;ULATION
==fT==
Solder the leads to the foil and cut offthe
excess lead lengths.
Jl:
Mount the power jack (#436-49)
firmly down onto the circuit board as
shown. Then solder its lugs to the foil.
~
<M\%~
Solder the leads to the foil and cut offthe
excess lead lengths.
