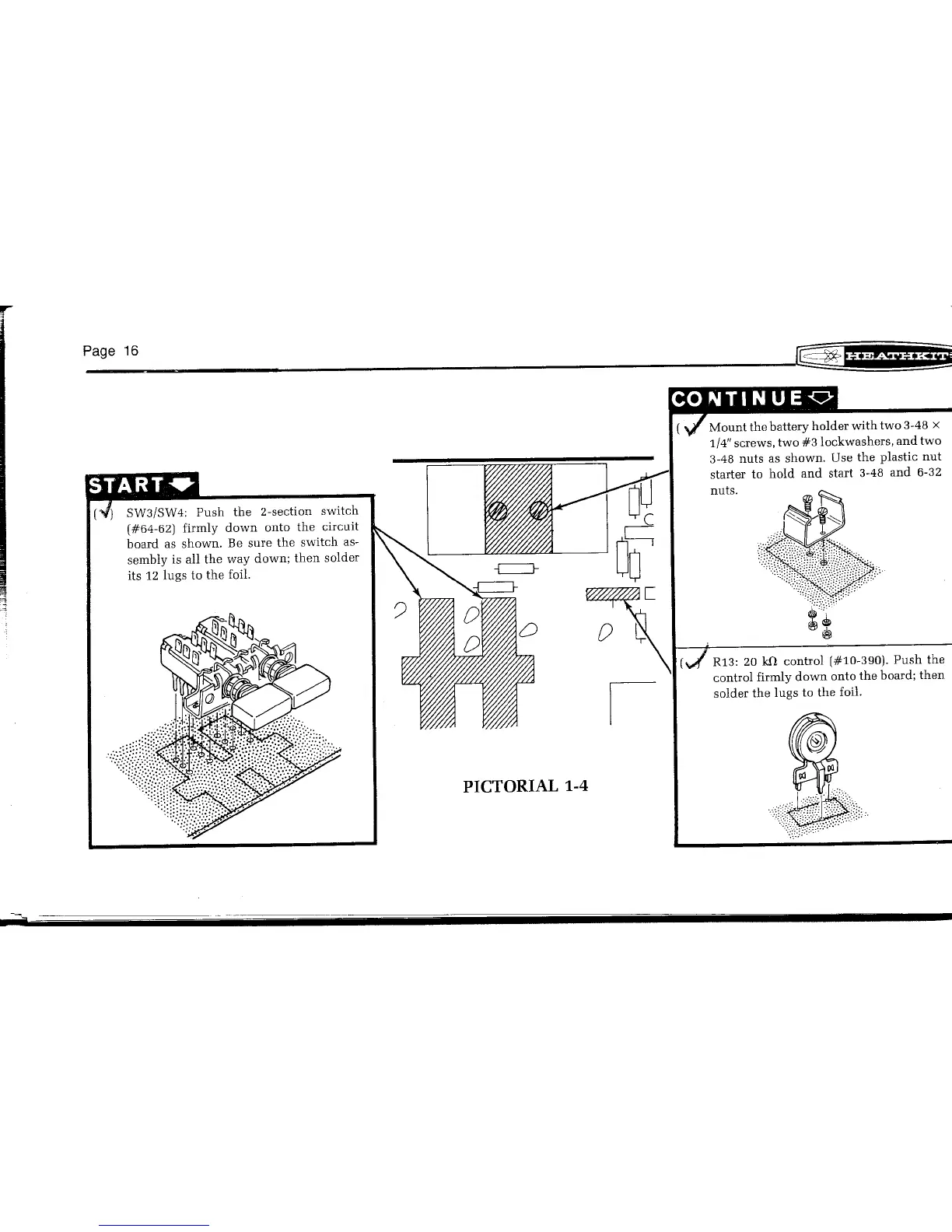

Page 16 --------

----------------_...--I~

SW3/SW4: Push the 2-section switch

(#64-62) firmly down onto the circuit

board as shown. Be sure the switch as-

sembly is all the way down; then solder

its 12 lugs to the foil.

Mount the battery holder with two 3-48 x

1/4"screws, two #3lockwashers, and two

3-48 nuts as shown. Use the plastic nut

starter to hold and start 3-48 and 6-32

nuts.

(vi

R13: 20 kl1 control (#10-390). Push the

control firmly down onto the board; then

solder the lugs to the foil.
