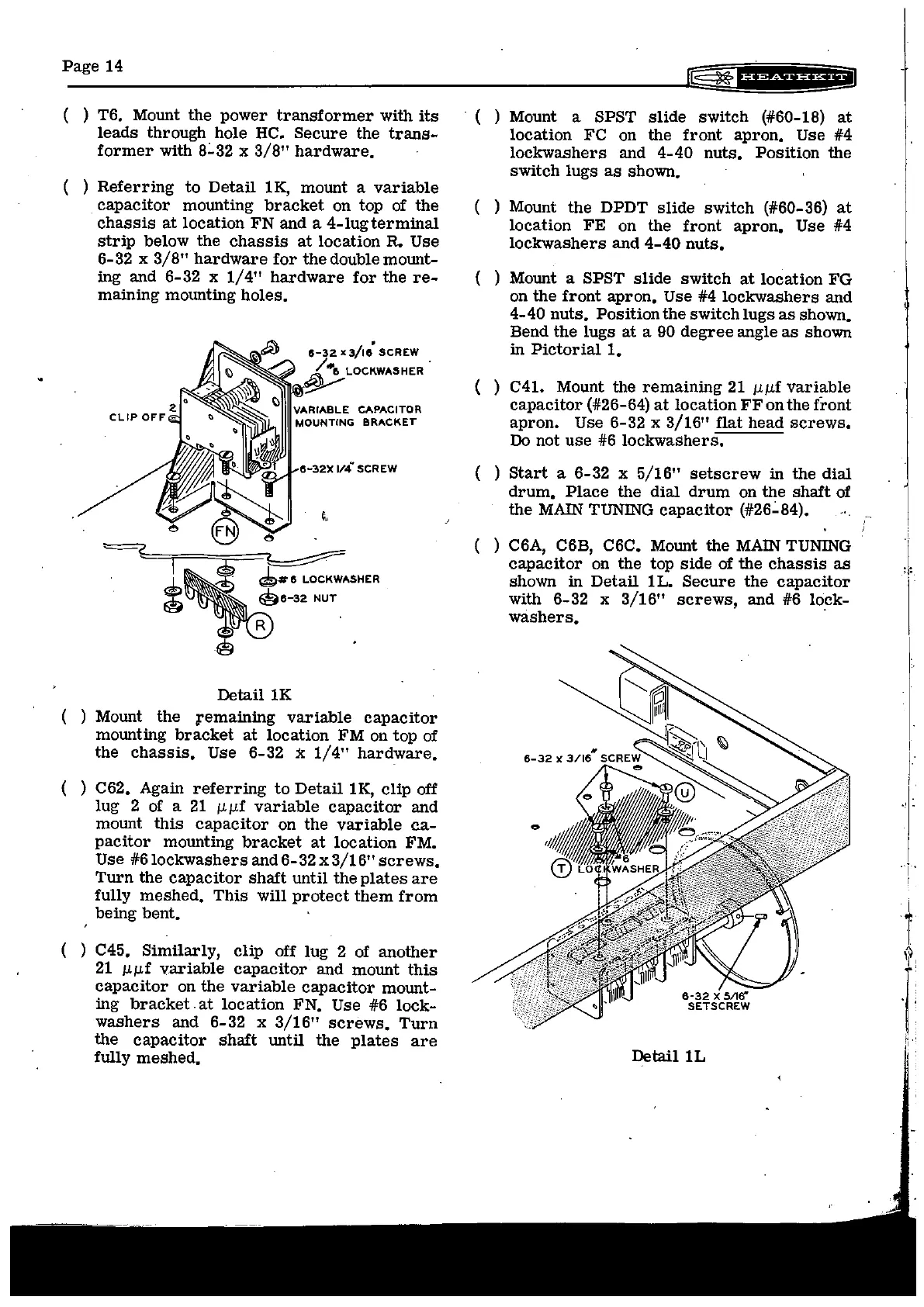

( ) T6. Mount the power
transformer
with
its
leads
through hole HC.
Secure
the
trans-
former
with
8~32
x
3/8"
hardware.
( )
Referring
to
Detail
1K, mount a
variable
capacitor
mounting
bracket
on top
of
the
chassis
at
location
FN
and a
4-lugterminal
strip
below the
chassis
at
location R. Use
6-32 x
3/8"
hardware
for
the
double mount-
ing and 6-32 x
1/4"
hardware
for
there-
maining mounting
holes.
Detai11K
x3/IO•
SCREW
LOCK.WASHER
Mount
the
remaining
variable
capacitor
mounting
bracket
at
location FM on top of
the
chassis.
Use 6-32 x
1/4"
hardware.
( ) C62. Again
referring
to
Detail
1K, clip off
lug 2 of a
21
p.p.f
variable
capacitor
and
mount
this
capacitor
on
the
variable
ca-
pacitor
mounting
bracket
at
location FM.
Use
#6lockwashers
and 6-32 x
3/16"
screws.
Turn
the
capacitor
shaft
until the
plates
are
fully meshed.
This
will
protect
them
from
being bent.
(
C45.
Similarly,
clip off lug 2 of
another
21
p.p.f
variable
capacitor
and mount
this
capacitor
on the
variable
capacitor
mount-
ing
bracket.
at
location FN. Use #6 lock-
washers
and 6-32 x
3/16"
screws.
Turn
the
capacitor
shaft
until
the
plates
are
fully
meshed.
( ) Mount a SPST
slide
switch (#60-18)
at
location FC on the
front
apron.
Use #4
lockwashers
and
4-40
nuts.
Position
the
switch lugs
as
shown.
( ) Mount
the
DPDT
slide
switch (#60-36)
at
location
FE
on the
front
apron.
Use #4
lockwashers
and
4-40
nuts.
( ) Mount a SPST
slide
switch
at
location FG
on the
front
apron.
Use #4
lockwashers
and
4-40
nuts.
Position the switch lugs
as
shown.
Bend the lugs
at
a 90
degree
angle
as
shown
in
Pictorial
1.
( ) C41. Mount the
remaining
21
p.p.f
variable
capacitor
(#26-64)
at
location
FF
on the
front
apron. Use 6-32 x
3/16"
flat head
screws.
Do not
use
#6
lockwashers.
( )
Start
a 6-32 x
5/16"
setscrew
in the
dial
drum.
Place
the
dial
drum
on the
shaft
of
the
MAIN
TUNING
capacitor
(#26~84).
( ) C6A, C6B, C6C. Mount the
MAIN
TUNING
capacitor
on the top
side
of
the
chassis
as
shown in
Detail
1 L.
Secure
the
capacitor
with 6-32 x
3/16"
screws,
and #6 lock-
washers.
Detail
lL
j
I
l
I
I
I
•!.
I
j·
