( ) Locate the front panel and referring to
Detail 1M (fold-out from this page), mount
SPST
slide switches at locations FK and FL
along with a pilot lamp bracket, Use #4
lockwashers and 4-40 nuts on the studs,
( ) Carefully remove the meter from its box,
When handling the
meter, be careful not to
bend the pointer or scratch the meter face,

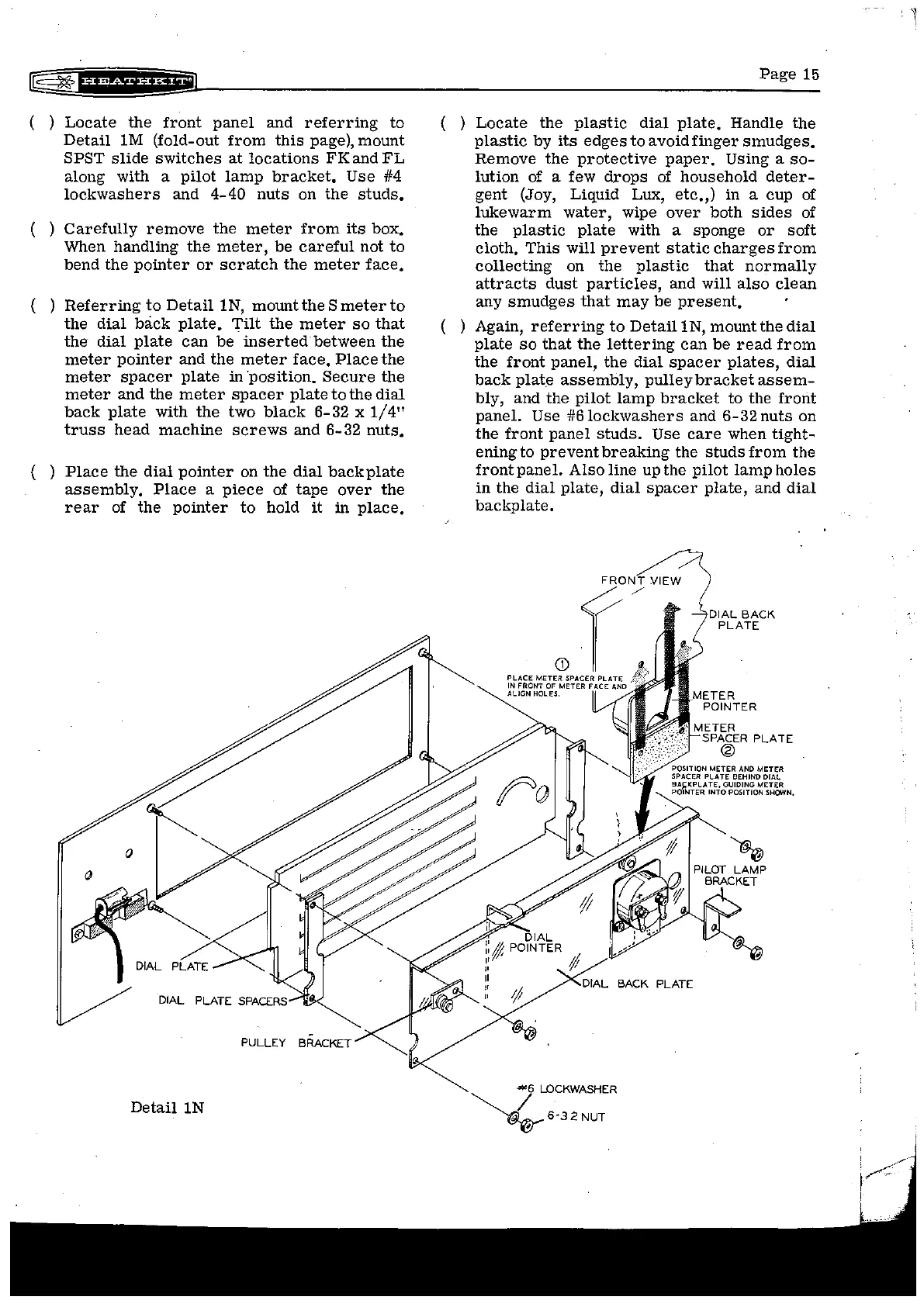

( ) Referring to Detail lN, mount the S meter to
the dial back plate. Tilt the meter so that
the dial plate can be inserted between the
meter pointer and the meter face, Place the
meter spacer plate in ·position. Secure the
meter and the meter spacer plate to the dial
back plate with the two black 6-32 x 1/4"
truss head machine screws and 6-32 nuts.
( ) Place the dial pointer on the dial backplate
assembly, Place a piece of tape over the
rear of the pointer to hold it in place,
PULLEY
Detail lN
Page 15
( )
Locate the plastic dial plate. Handle the
plastic by its edges to avoid finger smudges,
Remove the protective paper. Using a so-
lution of a few drops of household deter-
gent (Joy, Liquid Lux, etc.,) in a cup of
lukewarm water, wipe over both sides of
the
plastic plate with a sponge or soft
cloth. This will prevent static charges from
collecting on the plastic that normally
attracts dust particles, and will also clean
any smudges that may be present,
( ) Again, referring to DetaillN, mount the dial
plate so that the lettering can be read from
the front panel, the dial spacer plates, dial
back plate assembly, pulley bracket assem-
bly, and the pilot lamp bracket to the front
panel. Use #6lockwashers and 6-32 nuts on
the front panel studs. Use care when tight-
ening to prevent breaking the studs from the
front panel. Also line up the pilot lamp holes
in the dial plate, dial spacer plate, and dial
backplate.
--7D"I 'L BACK
PLATE
BACK PLATE
