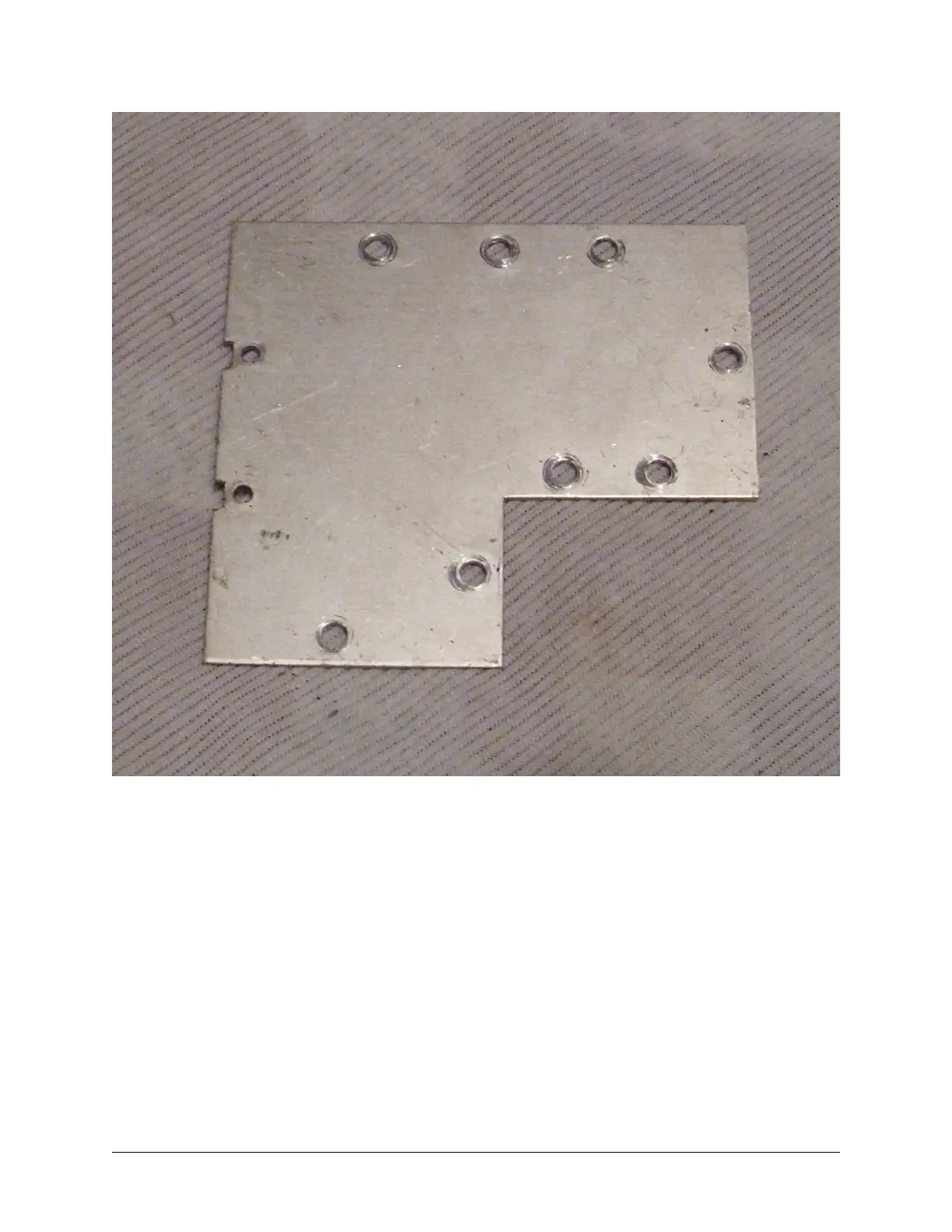

Figure 29. LMO Side Panel (removed)

This is the side panel which has to be removed to repair the LMO. Note the “notches”

on the left-hand side where the “lugs” which hold the LMO on the chassis are attached.

Heathkit Linear Master Oscillators (LMOs) Page 129
