( _,{ C116A: 56 pF ceramic.
( v ) CllBB: 56 pF ceramic.
C117B:
33 pF ceramic.
IDENTIFICATION
DRAWING
( )
Solder the leads to the foil and cut
9 ff the excess lead lengths .
( ) C128: .0011J.F ceramic.
(
./ C129: .001 ILF ceramic.
( t.{ C121: 100 pF ceramic.
C131: .0033
ILF ceramic.
( ) C135: .005
ILF ceramic .
(
~ C136: .005 ILF ceramic.
( ) C124: .02
ILF ceramic.
( ~ older the leads to the foil and cut
off the excess lead lengths.
PART
NUMBER
The steps performed in this Pictorial are
in
thi s area of the circuit board.

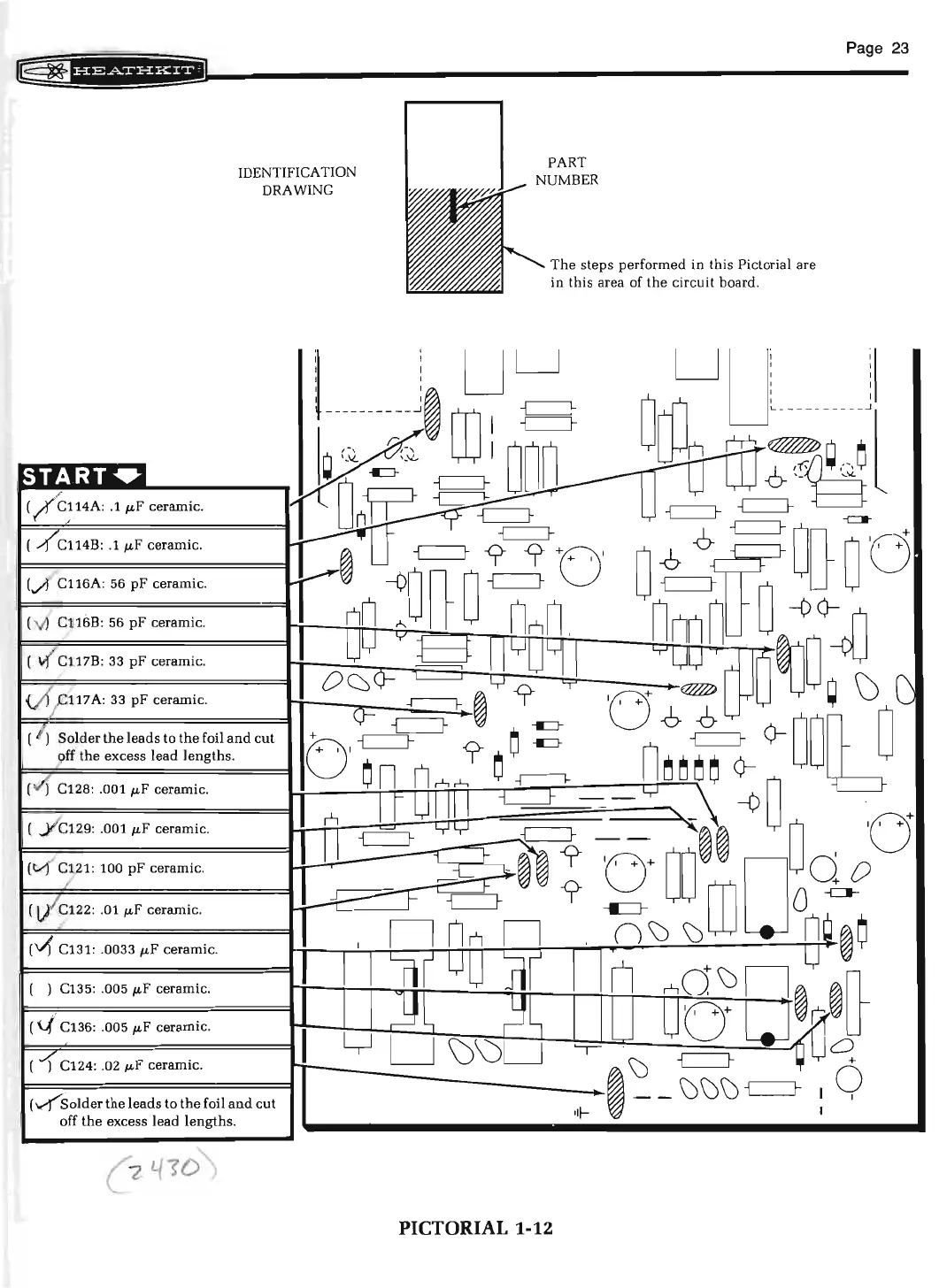

PICTORIAL 1-12
Page 23
