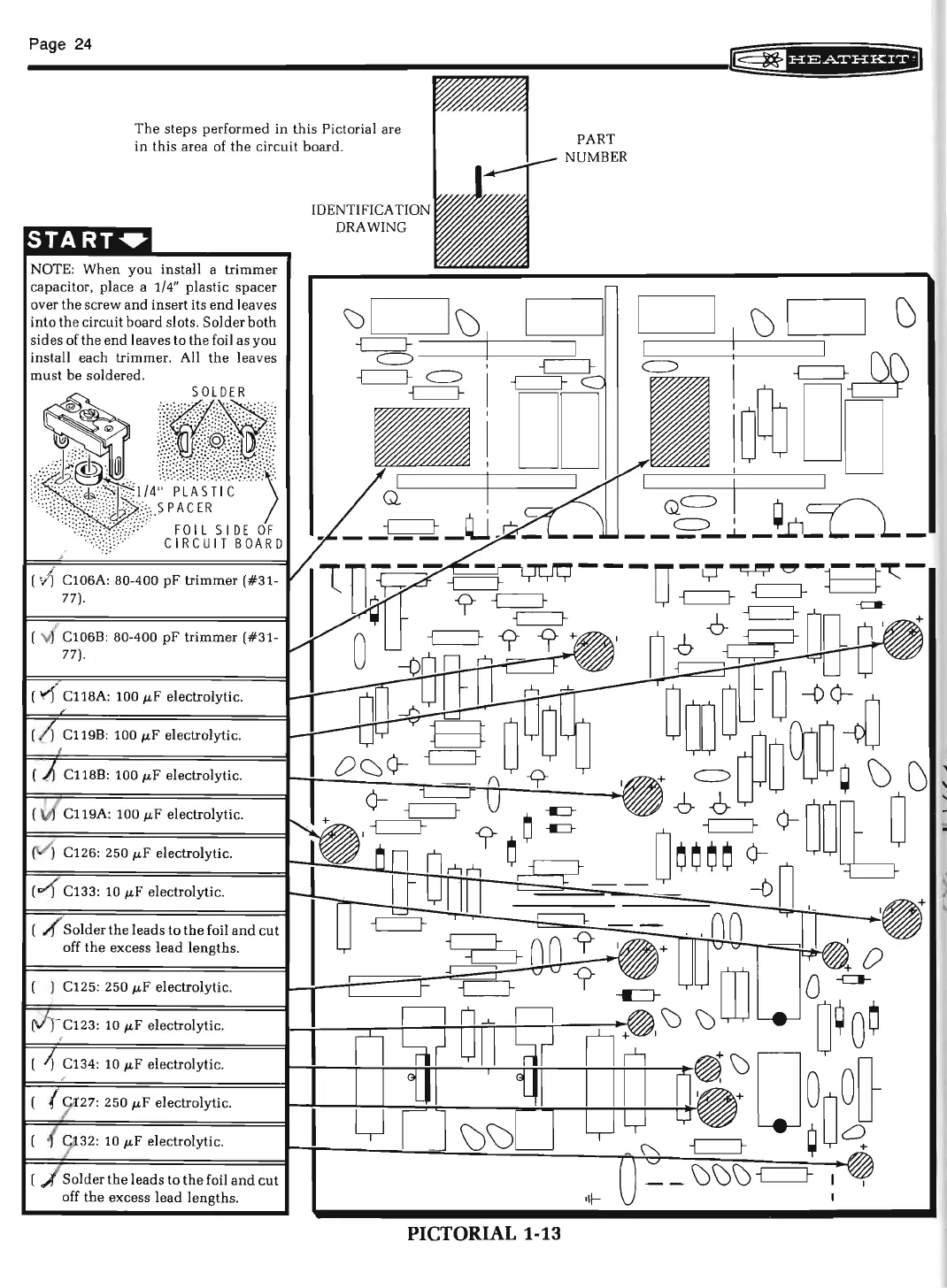

The steps performed in this Pictorial are
in this area of the circuit board.
PART
NUMBER
NOTE: When you install a
trimmer
capacitor, place a 1/4" plastic spacer
over the screw and insert its end leaves
into
the circuit board slots. Solder both
sides of the end leaves to the foil as you
install each
trimmer . All the leaves
must be soldered.
C106A: 80-400
pF trimmer (#31-
77).
C106B: 80-400 pF trimmer (#31 -
77).
18A: 100 JLF electrolytic.
C118B: 100
JLF electrolytic.
C119A: 100
JLF electrolytic.
C126: 250
ILF electrolytic.
C133: 10
JLF electrolytic.
Solder the leads to the foil and cut
off the excess lead lengths.
: 10
JLF electrolytic.
4: 10 JLF electrolytic.
7: 250
JLF electrolytic.
2: 10
JLF electrolytic.
Solder the leads to the foil and cut
off the excess lead lengths.
