1/4"
13-1/2"
1/4"
Connect these two wires to switch SW3 as follows:
( j) Pass the longer bared end of one 2" Brn wire
through lug 9 (NS) to lug 4 (S-1). Connect the
other end of this wire to lug 6 (S-1) .
( 1 Pass the longer bared end of the other 2" Brn
wire through lug 8 (NS) to lug 7 (S-1). Connect
the other end of this wire to lug 5 (S-1).
( v) Locate the 8-conductor flat cable. Separate this
cable for its full length between the Yel and Grn
conductors. Discard the 4-conductor section
consisting of the Grn, Blu, Viol, and Gry con-
ductors , as it will not be used.

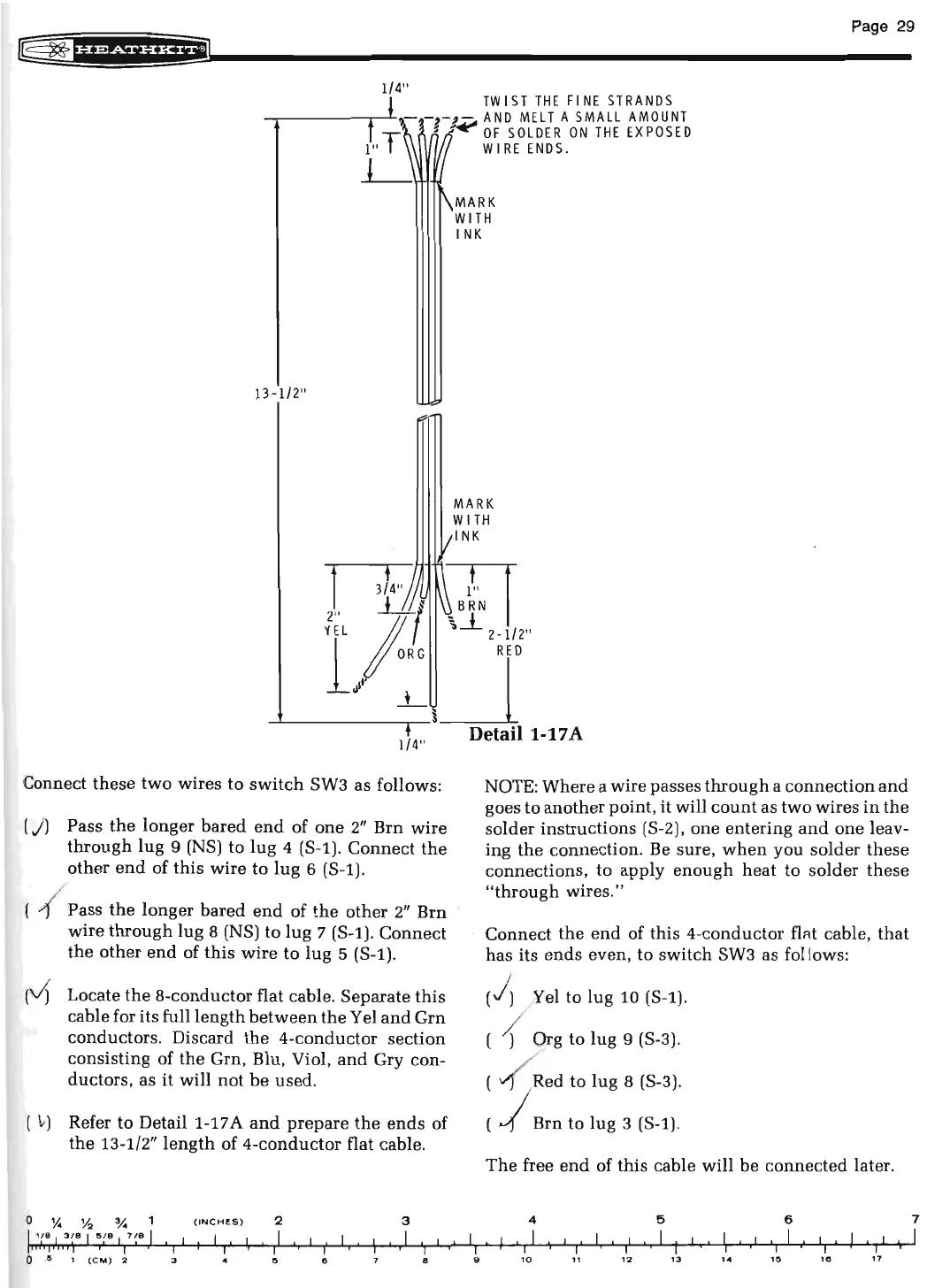

( \1 ) Refer to Detail 1-17 A and prepare the ends of
the 13-1/2" length of 4-conductor flat cable.
0
y.
y,
•;.
(INCHES )
2
3
11 !8 I 3 ( 8
I
5fe I
718
I I I
I I I
I
I
I
I
I
I
I
I
I
0
I
I
I
I
I
I
I
I
I
iihjlilij
0
.5
1
(C M) 2 3
5
..
8
I
Page 29
MARK
WITH
INK
MARK
WITH
INK
I I
I
9
NOTE: Where a wire passes through a connection and
goes to another point, it will count as two wires in the
solder instructions (S-2), one entering and one leav-
ing
the connection. Be sure, when you solder these
connections , to apply enough heat to solder these
"through wires."
Connect the end of this 4-conductor flllt cable, that
has its ends even , to switch SW3 as foi lows:
( ~ Yel to lug 10 (S-1) .
( { Org to
lug 9 (S-3).
( 1 ed to lug 8 (S-3).
( ..{ Brn to lug 3 (S-1) .
The free end of this cable will be connected later.
4
5
6
I I I I I I I I I I
I
I I I I I I I I
I I
I
I
I
I
I
I
I
I
I
I
I
I
10
,
12 13 1.
15 16
17
7
I
